Hanwha XRN-820S 8-Channel 4K Network Video Recorder

Hanwha XRN-820S 8-Channel 4K Network Video Recorder

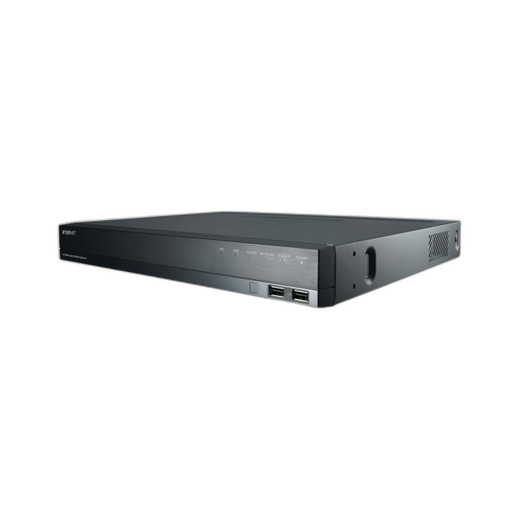

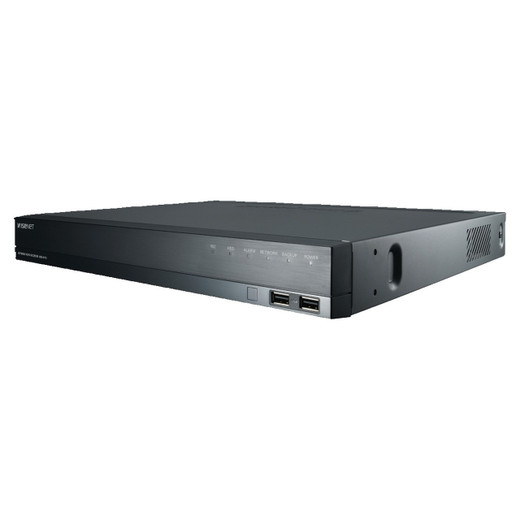

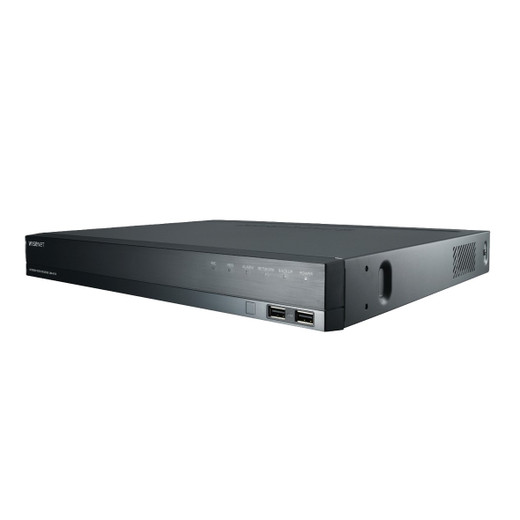

The Hanwha XRN-820S is a compact 8-channel network video recorder built for mid-scale surveillance deployments where high-resolution input, bandwidth efficiency, and reliable failover matter. It accepts camera inputs up to 32 megapixels, compresses using H.265 (and H.264/MJPEG fallback), and delivers 120Mbps total recording bandwidth — meaning you can sustain multiple 4K streams simultaneously without choking your network or storage. Linux-based architecture and integrated PoE++ power delivery keep wiring and deployment overhead low. The XRN-820S (often searched as XRN 820S) fits retail chains, commercial offices, healthcare facilities, parking operations, and enterprise campuses where centralized video management with high-resolution capability and redundant failover protection are non-negotiable.

Key Features

• 8-channel input with 32MP camera support: Accepts any resolution from 32MP down to CIF (Common Intermediate Format), so you're not locked into one camera line. Flexibility matters when integrating multiple vendors across a multi-site deployment.
• 120Mbps recording bandwidth via H.265: H.265 cuts file size roughly in half compared to H.264 at equivalent quality — critical for 24/7 recording across multiple channels without doubling your hard-drive footprint or hitting network saturation.
• Dual 4K display output (UHD HDMI + FHD HDMI/VGA): Single 4K monitor via HDMI for detailed forensic review, or dual FHD monitors for split-screen operator workstations. Choose the setup that fits your control room layout.
• Up to 12TB internal storage (2 SATA HDD slots, 6TB per drive): Two 6TB drives give you roughly 7–10 days of continuous 8-channel 1080p recording, depending on codec and scene complexity. Expandable within the chassis without external enclosures.
• Simultaneous playback across 32 channels (8 local, 8 remote per user; up to 4 concurrent users): Multi-user search and playback prevent bottlenecks during incident investigation. Four operators can run independent searches at the same time without blocking one another.
• N+1 failover redundancy and Automatic Rate Backup (ARB): If the primary recorder fails, traffic automatically reroutes to a standby unit. ARB lowers bitrate on secondary streams if bandwidth tightens — ensures critical channels stay uninterrupted during network congestion.
• Advanced event management: Trigger recording and alerts on alarm input, video loss, motion detection, video analytics, or camera sensor events. Combine multiple conditions to reduce false alarms and focus storage on the events that matter.
• 32Mbps maximum playback bandwidth for remote access: Remote users (iOS, Android, web) can pull live or recorded video over reasonable internet connections without requiring dedicated fiber. Crucial for multi-site operators managing dozens of locations.
• 8-channel network audio input/output with 2-way communication: Two-way audio enables remote operators to speak to on-site personnel through the recorder's built-in mixer — no separate intercom system needed for basic coordination.
• 300 PTZ presets: If you deploy PTZ cameras, store up to 300 preset positions (pan, tilt, zoom, focus) and recall them via GUI, web viewer, or hardware SPC-2000 controller. Faster incident replay than manual pan-tilt.

Integration & Compatibility

The XRN-820S speaks ONVIF and Hanwha's proprietary SUNAPI protocol, meaning it integrates with third-party VMS platforms like Milestone XProtect, Genetec, and others without custom drivers. Dual-stream recording decouples high-resolution archival from live streaming — one stream for detailed forensics, a second for efficient remote bandwidth. Calendar-based search, event-list navigation, and smart search with H.265 recovery streamline finding footage in large archives.

Security hardening includes IP address filtering, user access logging, 802.1x network authentication, device certificates (Hanwha Techwin Root CA), and signed firmware. The recorder logs up to 100,000 system and event records each, with full audit trail capability for compliance audits. Network ports comprise 8 PoE+ RJ-45 (10/100Mbps) for cameras plus 2 dedicated 1Gbps LAN/WAN ports for independent management and failover traffic. Protocol stack includes IPv4/IPv6, TCP/IP, UDP/IP, RTP, RTSP, HTTP, DHCP, SMTP, DNS, DDNS, uPnP, HTTPS, and SNMP.

Remote access supports WAVE, SSM, Webviewer, Smart Viewer, and Wisenet mobile apps across iOS and Android. Max remote users: 3 for search, 10 for live unicast, 20 for multicast streaming. Web viewer runs on Windows 10, macOS 10.13+, via Chrome, Edge, or Safari.

Physical & Power Specifications

Chassis dimensions: 370 x 50.7 x 324.3 mm (compact 1U form factor). Maximum power draw: 160W, running well within standard PDU budgets. All PoE+ cameras draw power from the integrated 8-port PoE+ injector, eliminating separate power supplies for typical deployments.

When to Choose a Different Model

If you need more than 8 camera inputs, explore higher-channel variants in the Hanwha network video recorder line. If your deployment requires ultra-high-resolution (>32MP) or extreme frame rates (>30 fps), verify camera and bandwidth compatibility before committing. For smaller deployments (2–4 cameras) or space-constrained environments, consider compact edge storage or smaller-form-factor recorders. For requirements beyond redundancy (geographic replication across data centers), you may need a dedicated clustering solution outside this product's scope.

Frequently Asked Questions

Q: Does the XRN-820S support ONVIF Profile G (analytics)?

A: The XRN-820S supports ONVIF and can trigger recording on video analytics events from compatible cameras. Consult the camera vendor's ONVIF profile declarations for specific analytics (object detection, line crossing, etc.) support.

Q: What's the maximum storage retention on the XRN-820S?

A: With 12TB capacity and H.265 compression, 24/7 continuous 8-channel recording typically retains 7–10 days depending on resolution and scene complexity. Use the XRN-820S event-triggered recording mode to extend retention for non-critical time windows.

Q: Can I integrate the XRN-820S with my existing Milestone XProtect system?

A: Yes. The XRN-820S supports ONVIF and can be added as a device source in Milestone. Consult Milestone's integration documentation for licensing and configuration details.

Q: Does the XRN-820S require a dedicated management network?

A: No, but the dual 1Gbps LAN/WAN ports allow you to segregate management and recording traffic if your security policy requires it. Single-network deployment is fully supported.

Q: What is the warranty on the XRN-820S?

A: Refer to your reseller's terms and Hanwha's standard warranty coverage for recorder hardware. Typical commercial warranties are 1–3 years; confirm with your supplier.

Q: Is the XRN-820S NDAA Section 889 compliant?

A: Verify NDAA compliance status with the manufacturer or your reseller. Hanwha products require case-by-case certification review for federal procurement.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XRN-820S strikes a practical balance between input density and processing capability for commercial-scale deployments. Eight channels at 32MP input capacity and 120Mbps total bandwidth means you can record genuine 4K across multiple channels simultaneously without architectural workarounds. The H.265 codec implementation is the real workhorse here — it cuts your storage bill by roughly 40–50% compared to H.264 at equivalent quality, which compounds over multi-year retention cycles. For organizations managing 2–4 sites or a single large facility, this recorder pays for itself through storage savings alone.

Technical Highlights:

• Dual 4K display output (UHD HDMI + FHD HDMI/VGA): Operators can review forensic detail on a single 4K monitor while watching a quad-split live view on a pair of FHD screens — no display matrix switcher required, saves rack space and control-room complexity.
• N+1 redundancy with Automatic Rate Backup: If a camera feed spikes bitrate during an incident, ARB throttles secondary streams to keep critical channels recording uninterrupted. Real-world safeguard against bandwidth congestion that's often overlooked until something goes wrong at 2 a.m.
• 32Mbps remote playback bandwidth: Remote users can pull recorded video over a typical business internet connection (15–25 Mbps) without special optimization. Matters when your investigators are working from a branch office or home, not from the control room.
• ONVIF + SUNAPI protocol support: If you're mixing Hanwha cameras with third-party analytics or running Milestone as your VMS, the XRN-820S doesn't force a closed ecosystem. Vendor lock-in is minimized.

Deployment Considerations:

• Eight PoE+ ports means each camera draws from the recorder's integrated power budget (160W max). If you're running heaters, IR illuminators, or audio, verify that your camera power profile won't exceed PoE+ limits (95W per port, IEEE 802.3bt). Eight cameras at 20W each leaves headroom; eight cameras at 15W each with 2-way audio is fine.
• The dual 1Gbps LAN/WAN ports are there for failover redundancy and network segmentation — don't ignore them. A single 100Mbps connection to the camera network and a separate 1Gbps connection to your management VLAN ensures that a congested camera subnet won't starve the recorder's heartbeat or alarm relay to your VMS.
• H.265 is not universally supported across all VMS platforms and older mobile clients. Confirm that your remote-access app (Wisenet, WAVE, web viewer) is on a current version before deploying; legacy clients may default to H.264, which negates your storage savings.

Best fit: retail chains or commercial offices with 5–15 camera sites, needing local recording redundancy and reliable remote playback for incident investigation. The XRN-820S isn't for single-location micro-deployments (use edge storage), nor is it for massive metro surveillance networks (use dedicated cluster architectures). It's the middle ground — proven, operationally simple, and cost-efficient for the 80% of commercial deployments that fall there.
