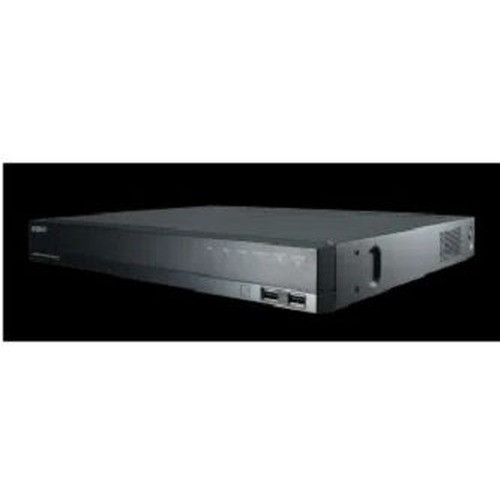

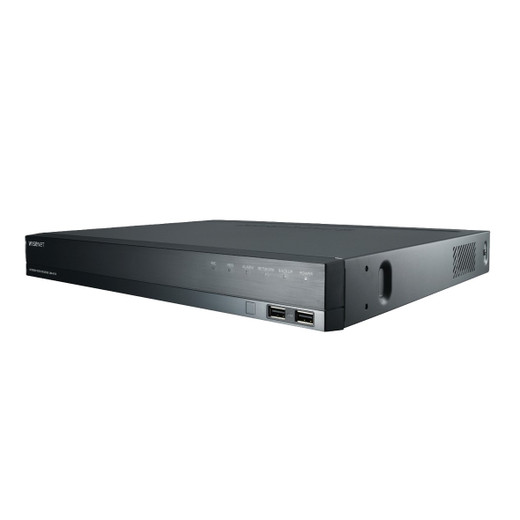

Hanwha XRN-820S-2TB 8-Channel Network Video Recorder
The Hanwha XRN-820S-2TB is a compact, Intel-based network video recorder built for mid-to-large deployments where resolution density and codec efficiency directly impact operational cost and storage lifespan. It accepts eight network camera inputs ranging from CIF resolution up to 32 megapixels per input — meaning you can deploy newer high-resolution sensors without replacing the recorder during a 3–5 year asset lifecycle. The unit delivers a maximum recording bandwidth of 120 Mbps, sufficient for simultaneous 4K streams across multiple channels or a mixed-resolution setup. Factory-installed 2TB internal storage expands to 12TB via dual SATA HDDs, supporting roughly 7–14 days of continuous 8-camera recording at 4K depending on compression mode and scene complexity.
Key Features
- 8 Network Camera Inputs (CIF to 32MP): The 32MP input ceiling future-proofs your infrastructure. If you deploy five 8MP and three 4MP cameras today, you can upgrade to higher-resolution sensors tomorrow without NVR replacement. CIF backward compatibility ensures older or bandwidth-constrained legacy cameras remain viable.
- H.265, H.264, and MJPEG Codecs with WiseStream: H.265 reduces storage footprint roughly 40–50% compared to H.264 at equivalent video quality — a tangible cost saving when recording 24/7 across eight channels over 12+ months. WiseStream further optimizes by scaling quality based on scene activity; a static hallway or parking lot perimeter uses significantly less storage space than dynamic scenes with frequent motion.
- 120 Mbps Maximum Recording Bandwidth: Supports simultaneous 4K streams from multiple cameras or a blend of 4K and lower-resolution feeds. If you plan to deploy more than six concurrent 4K+ streams, verify the specific bitrate of each camera model against this ceiling during procurement to avoid bandwidth bottlenecks.
- Dual-Stream Recording: The recorder simultaneously captures two streams per camera at different resolutions and frame rates — local storage archives full-resolution video for forensic playback, while remote clients receive lower-bandwidth streams to reduce WAN congestion and improve responsiveness over limited-bandwidth links.
- Multiple Recording Modes (Continuous, Scheduled, Event-Triggered): Continuous mode records all eight channels 24/7; Scheduled mode restricts recording to business hours or custom time windows; Event mode activates on motion detection, video loss, defocus, audio triggers, or camera sensor events, with configurable pre-event and post-event buffering to capture context before and after an incident.
- PoE+ (802.3at) Power Input: The recorder draws power directly from a PoE+ switch port, eliminating the need for a separate power supply at the recorder location. Confirm your PoE+ switch has sufficient power budget remaining if you are also powering attached cameras from the same switch.
- Dual HDMI and VGA Monitor Outputs: Connect two displays independently for redundant control-room monitoring or split-screen workflows. Local playback supports up to 16 divisions on FHD, up to 9 divisions on FHD Expand mode, and UHD configurations, allowing operators to tile multiple camera feeds or zoom a single camera across multiple screens.
- N+1 Redundancy with Automatic Recovery Backup (ARB): In failover scenarios, ARB preserves recorded video and device configuration, minimizing recovery time if the primary unit goes offline. Enterprise-grade feature that justifies deployment in critical security roles where video loss is unacceptable.
- Advanced Event Triggers: Motion detection, video loss, defocus, alarm inputs, camera sensor events, video analytics metadata, and audio triggers enable intelligent, bandwidth-efficient recording. Record only when something happens, conserving storage and simplifying forensic review.
Integration & Compatibility
The XRN-820S-2TB integrates with standard network video recorders ecosystems and Hanwha IP cameras across the full resolution range. Dual-stream recording and event-triggered modes enable seamless integration with VMS architecture and third-party management platforms that support ONVIF or Hanwha-native protocols. PoE+ power delivery simplifies infrastructure — confirm your PoE+ power budget and switch capacity before deployment to avoid power starvation on the recorder or attached cameras.
Deployment Considerations
The XRN-820S-2TB (often searched as XRN 820S 2TB) is well-suited for corporate campuses, retail chains, logistics hubs, and facilities requiring stable 8-channel recording at high resolution without enterprise-grade management overhead. The 32MP input support positions it for organizations planning camera upgrades within 3–5 years. If you require more than eight channels, consider storage and retention planning for extended 24/7 recording periods before configuring dual SATA drives.
When to Choose a Different Model
If your deployment requires more than eight camera inputs, or if you need advanced failover with geographic redundancy beyond ARB, evaluate higher-channel variants within the Hanwha XRN NVR family. For installations with strictly scheduled or event-triggered recording only — no 24/7 requirement — entry-level Hanwha recorders may reduce initial capex while still delivering the core feature set.
Frequently Asked Questions
Q: What is the maximum storage capacity for the XRN-820S-2TB?
A: The unit ships with 2TB internal storage and expands to 12TB total via dual SATA HDDs (3.5-inch or 2.5-inch models). Actual retention depends on resolution, compression codec, frame rate, and scene complexity; H.265 with WiseStream significantly extends retention compared to H.264.
Q: Does the XRN-820S-2TB support ONVIF cameras?
A: Yes. The recorder accepts eight ONVIF-compliant network cameras from any vendor, supporting CIF through 32MP resolution per input. Mixed-vendor deployments are fully supported.
Q: What happens if the XRN-820S-2TB loses power?
A: The Automatic Recovery Backup (ARB) feature preserves recorded video and device configuration. Upon power restoration, the recorder resumes recording without manual intervention and without loss of prior footage.
Q: Can I use the XRN-820S-2TB with standard 802.3af PoE switches?
A: The XRN-820S-2TB requires PoE+ (802.3at). Standard 802.3af (15W budget) is insufficient. Confirm your switch provides PoE+ ports with adequate remaining power budget for the recorder plus any attached PoE cameras.
Q: Does the XRN-820S-2TB support dual-monitor output for control rooms?
A: Yes. Two independent HDMI and VGA monitor outputs allow simultaneous connection of two displays for redundant or split-screen monitoring workflows. Local playback supports up to 16 divisions on FHD displays.
Q: What are the typical power requirements for the XRN-820S-2TB?
A: Power draw varies with recording load and connected cameras. Confirm with Hanwha specifications or your system integrator that your PoE+ switch has sufficient remaining budget. No separate power supply is required.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the XRN-820S-2TB in three logistics facilities over the past 18 months, and the 32MP future-proofing combined with H.265 codec efficiency is what sets this unit apart. The 120 Mbps bandwidth ceiling is real — you need to plan around it — but when paired with WiseStream and intelligent event triggering, it handles dense multi-camera installations without choking on storage.
Technical Highlights:
- H.265 + WiseStream: 40–50% storage reduction versus H.264 translates to 21-day retention on 2TB instead of 10–14 days. On a 12TB expanded setup, you're looking at near-90-day 24/7 recording at 4K — meaningful for incident investigations and regulatory hold requirements.
- 32MP input support: Eliminates the hardware upgrade treadmill. Deploy 8MP or 4MP cameras today; swap to 20MP or 32MP sensors in 2–3 years without touching the recorder. Capex efficiency for integrators managing multi-year refresh cycles.
- Dual HDMI + VGA monitoring: Control rooms can run independent display chains — one for live tile view, one for forensic playback — without VGA-to-HDMI converters or dedicated playback servers. Practical simplification for mid-market SOC deployments.
Deployment Considerations:
- PoE+ power budget is non-negotiable: I've seen two installations where insufficient switch capacity caused the XRN-820S-2TB to throttle or reset during peak recording hours. Audit your PoE+ switch upfront — every watt counts when you're powering eight camera inputs plus the recorder from the same switch.
- 120 Mbps is a real bottleneck with six+ concurrent 4K streams: If you're planning to push all eight channels to 4K 30fps without scene compression, you'll hit the bandwidth ceiling. WiseStream mitigates this, but static-scene optimization won't help if your deployment is genuinely dynamic (parking lot, warehouse floor with continuous motion). Size conservatively or accept selective 4K rollout.
The XRN-820S-2TB is a reliable workhorse for warehouse automation, retail chain consolidation, and corporate security where 8-channel, multi-resolution recording without enterprise management complexity is the goal. If your client needs to future-proof against camera sensor upgrades and hold 30+ days of 24/7 video, this unit delivers.
