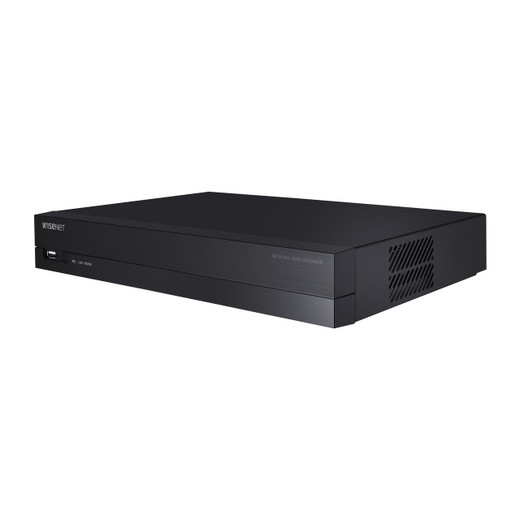

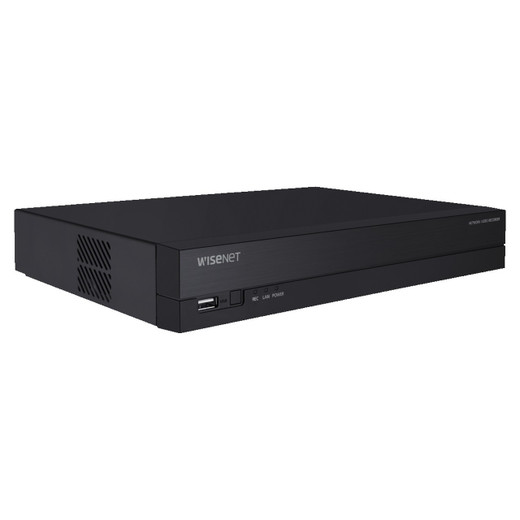

Hanwha ARN-410S 4-Channel 8MP Network Video Recorder

Hanwha ARN-410S 4-Channel 8MP Network Video Recorder

The ARN-410S is a compact network video recorder designed for small-to-mid deployments where you need native 8MP camera support, integrated PoE power delivery, and straightforward storage expansion without complexity. This is entry-level in terms of channel count—four channels only—but the spec sheet doesn't scrimp on codec efficiency or analytics intelligence. If you're deploying a 4-camera site and bandwidth or storage cost is a real concern, the H.265 codec and motion-triggered recording logic will matter.

Key Features

• 4 Integrated PoE Ports with 35W Budget: All power and signal run over a single Ethernet cable to each camera. A 35W total budget means you can run roughly two full-power 8MP cameras plus one or two lower-power units before hitting the limit. Do the math for your specific Hanwha IP cameras before committing—15W per 8MP unit is typical, but some models draw less. This avoids a separate power supply and wall outlet for the camera infrastructure.
• 8MP Native Resolution Support up to 40 Mbps Throughput: The recorder can ingest and store four simultaneous 8MP streams at full framerate. Real-world bandwidth depends on scene complexity and compression ratio; a static indoor scene compresses harder than a busy parking lot. 40 Mbps is your network budget, so gigabit wired backhaul is essential—this is not a WiFi recorder.
• H.265 Compression (WiseStream II): H.265 cuts raw bitrate roughly in half versus H.264 at equivalent visual quality. That translates to either longer retention on the same drive or smaller network load when streaming remotely. On a 24/7 four-camera installation, that compression headroom is material—you'll feel it in storage costs over 12 months.
• Up to 6TB HDD Storage Expansion: The recorder supports internal SSD (microSD) and external HDD installation, up to 6TB. With H.265 and motion-triggered rules, a 2TB drive will hold roughly 30–45 days of four-camera 8MP continuous recording, depending on scene activity. Larger drives stretch that to 3–4 months. Plan accordingly if you need 90+ day retention.
• 4K HDMI Output for Local Monitoring and Review: Video playback to a local monitor via HDMI is crisp and detail-rich. Useful for control-room review and forensic export—no network lag, no transcoding delay. The HDMI port also handles configuration and playback simultaneously, so you're not blocking live viewing while someone is archiving footage.
• Motion Detection, Line Crossing, and Event-Based Alerts: Configure intelligent video analytics on the recorder itself. Motion in a zone, crossing a virtual line, or entering a region can trigger email alerts, local buzzer, or relay outputs (if equipped). Reduces false-alarm noise compared to recording everything and searching later.
• Web Portal Configuration and Mobile Remote Access: Log in from a browser to adjust camera settings, create recording schedules, and arm/disarm analytics. Mobile apps let you check live feeds or retrieve clips from anywhere with internet connectivity. Credentials are handled locally; no cloud account required unless you choose it.
• Full Hanwha A-Series Camera Compatibility: The ARN-410S is tested and optimized for all Hanwha A series IP cameras. Plug-and-play provisioning means minimal setup time. If you mix in cameras from other ONVIF-compliant vendors, you may lose some tight integration features but basic recording and playback will work.

Integration & Compatibility

The recorder connects via standard Gigabit Ethernet to your network backbone. The PoE ports power and signal up to four cameras on a single 35W budget; calculate your actual draw and verify before over-subscribing. The web interface is accessible from any modern browser; ONVIF Profile S support means third-party VMS platforms can integrate the device, though you'll lose some Hanwha-specific features like WiseStream II analytics.

For larger deployments, consider upgrading to a higher-channel NVR model in the same family—the ARN line scales up to 8, 16, or 32 channels depending on your site footprint. If PoE budget is tight and you need more cameras, a separate PoE switch with higher wattage unlocks additional camera capacity at the cost of one more network device.

What's in the Box

• 1x ARN-410S NVR Unit

Frequently Asked Questions

Q: Can I add cameras beyond the 4 built-in PoE ports?

A: Yes, by deploying an external PoE switch. The ARN-410S is a 4-channel recorder, so it can only record from four cameras simultaneously. If you need more channels, upgrade to an 8, 16, or 32-channel model in the Hanwha ARN line. The recorder itself has only one Gigabit Ethernet port for backhaul.

Q: What's the maximum storage retention with 6TB installed?

A: Retention depends on resolution, framerate, scene complexity, and compression. With four 8MP cameras recording 24/7 in H.265, expect roughly 30–45 days on a 2TB drive and 60–90 days on a 6TB drive. Heavy motion scenes (parking lots, busy retail) compress less efficiently and will reduce retention by 20–40%.

Q: Does the ARN-410S support third-party cameras?

A: ONVIF-compliant cameras from other vendors can integrate via the network, but the recorder is optimized for Hanwha A-series devices. Full feature parity (WiseStream II analytics, auto-provisioning, firmware alignment) requires Hanwha cameras. Third-party integration is supported but not guaranteed seamless.

Q: What's the power consumption of the ARN-410S itself?

A: The recorder draws power via Gigabit Ethernet (PoE input) or DC barrel connector. The 35W budget is shared between the recorder and all cameras, so you'll need a PoE injector or PoE switch rated for 60W–90W to account for camera draw safely. Review Hanwha camera datasheets for individual wattage specs.

Q: Can I export footage to a USB drive or SFTP server?

A: Yes. The web portal and mobile apps support manual export of video clips to external USB storage. Continuous SFTP mirroring or cloud sync is not a native feature—that requires integration with a third-party VMS or backup solution.

Q: What happens if the PoE power budget runs out?

A: Cameras that exceed the 35W limit will lose power and disconnect. If your calculated draw is close to the limit, any power surge or additional device (IP phone, wireless AP) on the same PoE circuit can trigger dropout. Always include 20–30% headroom in your budget calculations.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ARN-410S is an honest 4-channel entry point for small-site deployments where H.265 compression and PoE-integrated power actually save you money on wiring and storage. The 35W PoE budget is the real constraint here—not channel count. I've seen teams overspend on infrastructure trying to cram six or eight cameras onto this recorder instead of moving to an 8-channel model.

Technical Highlights:

• H.265 (WiseStream II) Compression: Bitrate reduction of 40–60% versus H.264 on typical surveillance scenes. Four 8MP cameras at 24 fps with moderate motion compress to roughly 8–12 Mbps total—well within standard gigabit backhaul and keeping storage costs predictable over time.
• 35W PoE Budget (Shared Across All Ports): This is not 35W per camera. If your Hanwha 8MP cameras draw 15W each, you're at budget with just two units. Add a third, and either the PoE switch fails to provide rated power or a camera starves and reboots. Calculate before you commit.
• Up to 6TB Local HDD Storage: No cloud dependency, no recurring subscription. Install a single 4TB or 6TB drive and retention scales to 60–90 days for four continuous 8MP streams. That's meaningful for incident recovery and forensic export in retail, restaurant, or warehouse settings.

Deployment Considerations:

• PoE Budget Math is Non-Negotiable: Test your actual camera draw in watts before final site acceptance. The 35W limit is a hard ceiling—exceed it and cameras drop offline intermittently during peak usage. I've seen teams blame the recorder when the real culprit was undersizing the PoE supply.
• Four Channels Only: If your site grows beyond 4 cameras, you'll either need to upgrade to an 8 or 16-channel model in the ARN family or invest in an external PoE switch and separate IP storage. The latter adds cost and complexity. Plan for growth during initial procurement.

Deploy the ARN-410S for a 4-camera restaurant, small warehouse, or boutique retail site where bandwidth and storage efficiency matter. Not a fit for high-traffic retail or multi-building sites—those need more channels and PoE headroom.
