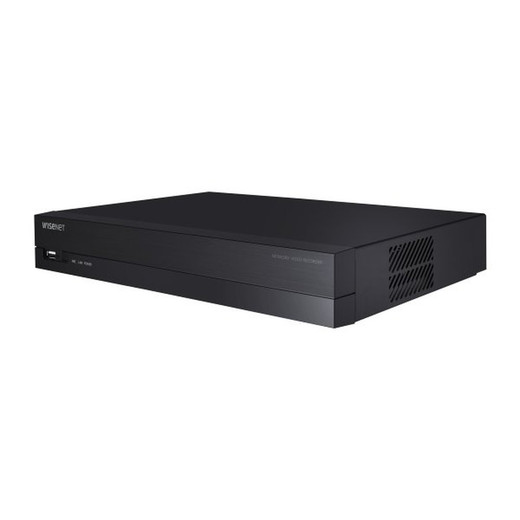

Hanwha XRN-420S-4TB 4-Channel 8MP Network Video Recorder

Hanwha XRN-420S-4TB 4-Channel 8MP Network Video Recorder

The Hanwha XRN-420S-4TB is a compact, Intel-based 4-channel network video recorder engineered for small-to-medium security deployments requiring high-resolution 8MP recording capability across all channels simultaneously. This 1U form-factor unit combines on-board PoE+ power delivery with H.265 compression and Wisenet AI analytics, streamlining both deployment logistics and forensic investigation workflows. The XRN-420S-4TB (often searched as XRN 420S 4TB) is purpose-built for installations where space is constrained—server closets, control rooms, and equipment cabinets—yet forensic image quality cannot be sacrificed.

Key Features

• 8MP Recording Across All 4 Channels at 30 fps: Captures network camera input at full 8MP (3840 × 2160) resolution with support for multiple resolution modes down to CIF. This level of detail enables reliable subject identification and facial recognition workflows across diverse lighting conditions—critical when legal liability or investigative precision is the standard.
• H.265, H.264, and MJPEG Codec Support: H.265 compression reduces storage and bandwidth consumption roughly 40–50% compared to H.264, depending on scene complexity and motion profile. This multi-codec flexibility accommodates mixed network video recorder camera deployments without requiring firmware customization or separate appliances. On a 24/7 four-camera system recording at 8MP, the bandwidth savings translates directly to network headroom and measurably extends storage lifecycle before replacement.
• 4 Integrated PoE+ Ports with 50W Total Power Budget: Built-in power delivery eliminates external injectors for standard camera configurations. PoE+ (802.3at) support enables integration of higher-power devices such as PTZ units or thermal cameras that demand 25–50W. A dedicated 1 Gbps WAN port ensures network separation between camera ingress and management traffic—important when you need to isolate forensic data flow from operational LAN congestion or apply QoS policies selectively.
• Wisenet AI Object Attribute Search: AI-driven forensic search filters by object type (person, vehicle, bag), dominant color, physical size, and behavioral attributes. This reduces timeline scrubbing from hours to minutes of targeted queries—a tangible operational win for security teams managing incident response under time pressure.
• Dual-Stream Recording Architecture: Independent bitrate optimization for archive and live-view streams. Record high-quality archive footage for forensic use while simultaneously feeding a lower-bitrate stream to remote clients or VMS platforms without quality compromise on either path.
• ONVIF Profile S and SUNAPI Compatibility: Certified VMS interoperability ensures seamless integration with third-party management platforms including video management software environments. If you migrate from this NVR to a larger Hanwha platform or a different vendor's ecosystem, ONVIF compliance future-proofs your camera infrastructure investment.
• 6TB Internal SATA Storage with microSD Expansion: Scalable storage baseline meets retention requirements for mid-sized facilities. microSD card slot supports mobile recording or backup workflows. Calculate your retention window by multiplying (24 hours × 4 channels × 8MP bitrate × H.265 efficiency) against the 6TB baseline to determine whether you need external expansion or higher-capacity SATA drives via upgrade paths.
• 120 fps at 1080p and 720p: For high-motion scenarios—retail checkout lines, parking lot entries, crowd monitoring—the XRN-420S-4TB supports elevated frame rates at lower resolutions, ensuring subject motion is captured smoothly without artificial stutter or dropped frames that could obscure facial detail during playback.
• 32 Mbps Simultaneous Playback Bandwidth: Supports multiple forensic investigators accessing the same incident footage without performance degradation. If your security operations workflow requires parallel review by multiple staff members or real-time evidence sharing to law enforcement, this spec defines the ceiling of concurrent viewer sessions.
• Auxiliary 12V DC Power Input: Beyond PoE, a separate 12V DC auxiliary connector supports external accessories, redundant power supplies, or UPS integration. Useful in facilities with backup power requirements or where dual-feed resilience is mandatory.

Integration & Compatibility

The XRN-420S-4TB integrates with Hanwha IP cameras natively via SUNAPI, delivering direct access to camera-level metadata, firmware management, and analytics tuning without VMS middleware. ONVIF Profile S certification ensures third-party camera compatibility and VMS integration flexibility. Wisenet AI object search works across both Hanwha and ONVIF-compliant camera sources, provided the camera supplies the necessary attribute metadata in its stream.

The integrated PoE+ switch supports standard PoE power planning workflows; however, a 50W total budget across four ports means you cannot simultaneously power four maximum-draw cameras (e.g., four 15W PTZs). Prioritize critical vantage points or implement staged power sequencing if your deployment approaches the 50W ceiling.

Frequently Asked Questions

Q: Can the XRN-420S-4TB record at 8MP on all four channels simultaneously for 24/7 operation?

A: Yes. The XRN-420S-4TB is designed to record all four channels at full 8MP (3840 × 2160) at 30 fps continuously. Storage lifetime depends on your bitrate settings, scene complexity, and H.265 efficiency; calculate retention by dividing 6TB by your average daily bitrate (in TB/day).

Q: What is the total power consumption of the XRN-420S-4TB, and can I run it from a single PoE+ port on my switch?

A: The unit draws up to 50W total across its four integrated PoE+ ports. It requires a dedicated 12VDC auxiliary power input or a 50W-capable PoE source to operate independently. You cannot power the entire NVR from a single camera port on your switch.

Q: Does the XRN-420S-4TB support H.265 on all four channels simultaneously?

A: Yes. The XRN-420S-4TB supports H.265, H.264, and MJPEG on a per-channel basis, allowing you to configure each channel independently. You can run all four channels in H.265 mode simultaneously to maximize storage efficiency.

Q: Is the Wisenet AI object search feature limited to Hanwha cameras, or does it work with third-party ONVIF cameras?

A: Wisenet AI search functions on both Hanwha and ONVIF-compliant cameras, provided the camera stream includes the necessary metadata. For best accuracy and feature completeness, use Hanwha IP cameras; third-party ONVIF cameras may deliver reduced attribute filtering depending on their metadata support.

Q: What is the microSD card maximum capacity supported?

A: The evidence provided does not specify a maximum microSD capacity. Consult the product datasheet or contact the manufacturer for confirmed compatibility limits.

Q: Can I integrate the XRN-420S-4TB with my existing Milestone XProtect or Axis Camera Station VMS?

A: Yes. ONVIF Profile S certification ensures compatibility with third-party VMS platforms including Milestone, Axis, and other ONVIF-compliant management systems. The NVR will appear as an ONVIF-compatible recorder within those environments.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XRN-420S-4TB is a solid mid-range choice for integrators deploying four-channel 8MP systems in space-constrained environments. The 50W integrated PoE+ budget and H.265 codec support are the real draw here—they eliminate external power infrastructure and cut your storage costs in half compared to H.264-only recorders. What matters most is understanding the power ceiling and planning your camera load accordingly.

Technical Highlights:

• H.265 Compression at 8MP/30fps: On a 24/7 four-camera deployment, H.265 saves 40–50% storage versus H.264—meaningful when you're working with 6TB baseline storage and retention windows exceed 15 days. That's real TCO reduction, not marketing math.
• Integrated PoE+ (50W Total): Eliminates external injectors for standard IP cameras, but plan carefully: four 12W cameras = 48W. One thermal add-on at 15W and you're over budget. Build your power spreadsheet first.
• Wisenet AI Object Search: Person, vehicle, bag, color, size filtering works across both Hanwha and ONVIF sources (if metadata is present). For incident response, this cuts forensic timeline scrubbing from hours to 10–15 minutes on average.

Deployment Considerations:

• The 1U form factor fits standard racks, but the 6TB storage baseline assumes you're calculating retention math before deployment. Don't assume it covers your compliance window—measure bitrate and duration on day one.
• Dual-stream architecture means you can record archive-quality footage for forensics while sending a lower-bitrate stream to VMS or remote clients. Plan your bitrate allocation—don't just accept defaults.
• ONVIF Profile S compliance is broad, but AI analytics richness depends on metadata availability from your camera source. Hanwha cameras will always deliver richer attribute data than third-party vendors.
• The 32 Mbps playback ceiling supports three simultaneous investigators on typical bitrates. More concurrent users requires VMS load-balancing or a second recorder.

Best fit: warehouse or light-industrial deployments with four fixed 8MP vantage points, mixed camera vendors, and retention windows under 30 days. Skip this if you need more than four channels, plan to exceed 50W camera load, or require integration with vendors that don't publish ONVIF metadata—a bigger Hanwha NVR or a modular VMS architecture will serve you better.
