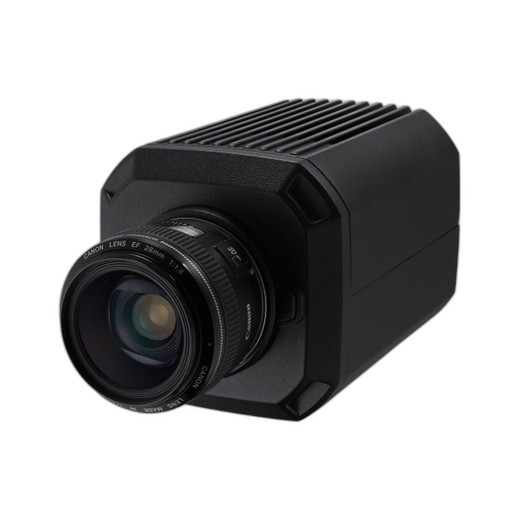

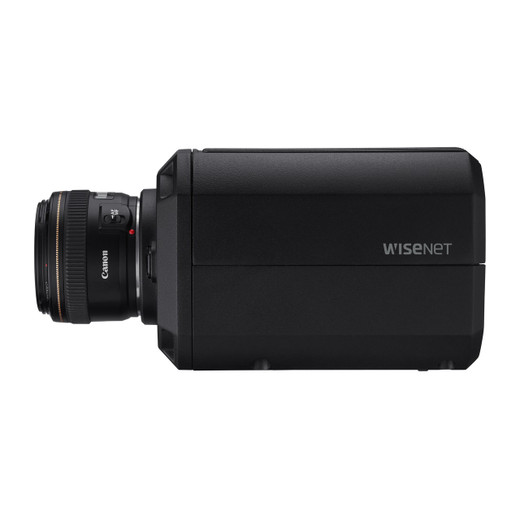

Hanwha TNB-9000 8K AI Box IP Camera 32MP

Hanwha TNB-9000 8K AI Box IP Camera 32MP

The Hanwha TNB-9000 represents a breakthrough in ultra-high-definition surveillance, delivering native 8K resolution (7680x4320, 32MP) with exceptional frame rates across multiple recording modes. Engineered for large-scale security deployments where detail and coverage are equally critical, this AI-enabled box camera combines premium optics, advanced analytics, and flexible codec support to meet the most demanding surveillance requirements.

Key Features

• 8K native resolution (32MP) at 15fps; 24MP at 20fps; 15MP at 30fps; 4K at 60fps
• Canon EF mount lens compatibility with optional 24mm, 35mm, 50mm, 85mm, and 100mm lenses
• AI-powered object detection: Person, Face, Vehicle, License Plate with attributes and BestShot
• Advanced analytics events: Directional detection, Enter/Exit, Loitering, Virtual line, Defocus detect
• H.265/H.264/MJPEG triple codec encoding with WiseStream II smart codec for bandwidth optimization
• Day/Night ICR with exceptional low-light performance: 0.015 Lux color / 0.0015 Lux B/W
• Dual backlight compensation: BLC and Dynamic WDR for challenging lighting conditions
• Bi-directional audio with G.711/G.726 compression and selectable mic/line inputs
• 8 motion detection zones with 8-point polygonal masking in 32MP mode
• Privacy masking with 6 rectangular zones (Grey/Black/White options)
• HPoE (IEEE 802.3bt Class 5) and 12VDC power options; max 30W consumption
• Edge storage via microSD/SDHC/SDXC slot; 4GB RAM with 512MB Flash
• Alarm I/O with event-triggered FTP/email notifications and NAS recording support
• ONVIF Profile S/G/T and Hanwha SUNAPI for vendor-neutral integration

Technical Highlights

The TNB-9000 features a 43.3mm full-frame CMOS sensor paired with professional Canon EF mount optics, enabling fine-tuned field-of-view selection from 62.1° (24mm) to narrower telephoto coverage. The camera supports multiple streaming profiles (up to 3) with unicast and multicast delivery, accommodating up to 6 concurrent users without performance degradation. Integrated Hanwha AI analytics provide real-time person/vehicle/license plate classification with directional and loitering detection, enabling proactive alerting and forensic search. SSNR V noise reduction combined with advanced shutter control (1/5 to 1/12,000 sec) and selectable gain ensures clean video across extreme lighting scenarios.

Network resilience is built-in via dual Ethernet (10/100/1000 BASE-T) with SFP slot option, 802.1X authentication, SSL/TLS encryption, and comprehensive protocol support (IPv4/IPv6, RTSP, HTTP, HTTPS, DDNS, SNMPv3). The camera operates reliably from 0°C to +45°C and supports 16 interface languages.

Applications

Ideal for critical infrastructure, major transportation hubs, large campus surveillance, high-security perimeter monitoring, and forensic-grade recording where 8K clarity justifies bandwidth investment. The interchangeable lens system and AI analytics make it equally suited for fixed-wide coverage or targeted long-range identification tasks.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNB-9000 bridges professional cinema and enterprise security. Its Canon EF mount is a deliberate choice: it unlocks cinema-grade optics with precise aperture and focus control, allowing integrators to optimize FOV and low-light sensitivity for specific deployments. The 32MP sensor excels in scenarios requiring both wide coverage and pixel-level detail for post-incident analysis.

Frame rate tiers are pragmatic: 15fps at 8K suits forensic archiving and license plate capture; 60fps at 4K handles real-time monitoring of dynamic scenes. H.265 encoding is essential here—8K H.264 would saturate most networks. WiseStream II codec further reduces bitrate by 50% in static zones while maintaining quality on moving objects.

AI analytics (object classification, directional detection, virtual line crossing) transform raw pixel data into actionable intelligence. This is particularly valuable in urban or perimeter deployments where false alarms from weather or shadows can overwhelm operators.

HPoE Class 5 support simplifies cabling in power-limited installations. The 30W max consumption is realistic for full 8K operation; integrators should budget for managed PoE switches or dedicated injectors. Edge storage via microSD is a backup tool, not primary—pair with NAS for sustained event recording.

Deployment consideration: 8K requires robust network infrastructure (gigabit fiber recommended for multiple concurrent streams) and NVR-side decoding horsepower. Best suited for organizations with mature IT and security infrastructure.
