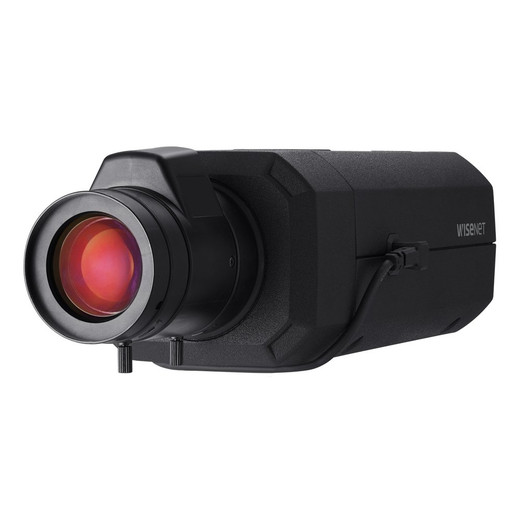

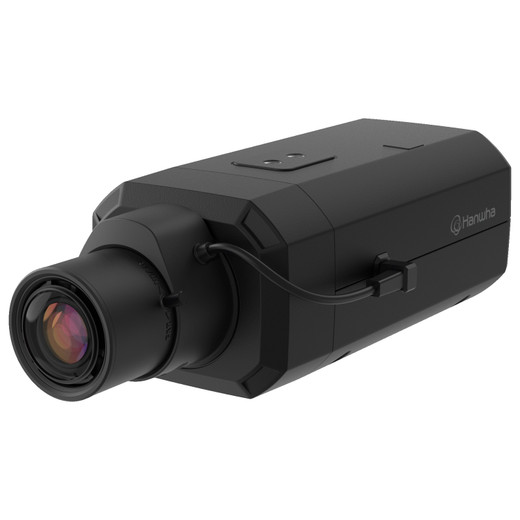

Hanwha XNB-9003 8MP AI Box IP Camera

Hanwha XNB-9003 8MP AI Box IP Camera

The Hanwha XNB-9003 is a professional-grade 8MP box network camera engineered for high-performance surveillance in challenging environments. Built on a 1/1.8" progressive CMOS sensor, this camera delivers 4K resolution (3840x2160) with exceptional clarity and detail. Its extreme WDR capability (120dB) ensures balanced exposure in high-contrast scenes, while minimal illumination requirements (0.03 Lux color, 0.003 Lux B&W) enable reliable operation in near-total darkness. The camera supports H.265/H.264 and MJPEG compression at up to 30fps, optimizing bandwidth efficiency without compromising video quality.

Key Features

• 8MP 4K Resolution: 3840x2160 native resolution with multiple output formats for flexible deployment
• Extreme WDR (120dB): Superior handling of backlit and high-contrast scenes
• Ultra-Low Light Capability: 0.03 Lux (color) / 0.003 Lux (B&W) for 24/7 operation
• AI-Powered Analytics: Object detection (person, face, vehicle, license plate), virtual line crossing/direction, virtual area monitoring, people counting, queue management, and heatmap generation
• Advanced Noise Reduction: WiseNRII and SSNRV algorithms powered by AI engine
• Digital Image Stabilization: Built-in gyro sensor for steady footage
• Smart Codec Technology: WiseStreamII and WiseStreamIII for intelligent bitrate optimization
• PoE Powered: IEEE 802.3af Class 3, typical 9.8W consumption
• Edge Storage: Dual microSD/SDHC/SDXC slots, up to 1TB capacity
• Motion Detection & Privacy: 8 polygonal detection zones, 32 privacy masking areas with color/mosaic options

Technical Specifications

• Imaging: 1/1.8" progressive CMOS; DC auto iris, P-iris, manual, and I-CS lens mounts (C/CS)
• Video Output: H.265/H.264 (Main/Baseline/High), MJPEG; up to 20 unicast users plus multicast support
• Audio: Selectable mic-in/line-in/built-in microphone; G.711/G.726 compression; line-out available
• Connectivity: Gigabit Ethernet (10/100/1000BASE-T), USB (Micro Type B), RS-485 serial for PTZ control
• Protocols: IPv4/IPv6, RTSP, ONVIF Profile S/G/T/M, MQTT, SUNAPI HTTP API, Wisenet open platform
• Security: TPM 2.0 (FIPS 140-2 Level 2), HTTPS/SSL, IP filtering, 802.1X authentication, device certificate pre-installed
• Alarm I/O: 2 configurable ports; triggers via analytics, network disconnect, input, app event, schedule, or MQTT
• Storage: 4GB RAM, 512MB Flash; microSD recording with event-triggered upload to email/FTP/NAS
• Operating Range: -10°C to +55°C; supports defog and anti-flicker (2–1/12,000sec electronic shutter)
• Dimensions/Weight: 81(W) × 67(H) × 165(D)mm; 880g (1.94 lbs)

Applications

Ideal for critical infrastructure, transportation hubs, retail environments, municipal surveillance, and enterprise security. The combination of 8MP clarity, AI analytics, and robust WDR makes it suitable for perimeter monitoring, access control integration, and intelligent incident response scenarios where actionable video intelligence is essential.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNB-9003 represents Hanwha's commitment to embedding intelligence at the edge. Its AI engine—powering object classification, business intelligence (people counting, queue management), and adaptive noise reduction—offloads processing burden from central systems while enabling real-time alerting. The 120dB WDR and ultra-low lux performance address two critical surveillance challenges: glare/backlight recovery and nighttime operation without expensive supplemental IR.

WiseStreamIII dynamically adjusts codec parameters per region, reducing storage and bandwidth consumption by up to 70% in static backgrounds while maintaining detail in motion areas. The dual microSD slot with 1TB capacity provides critical failover redundancy for edge recording. ONVIF compliance and MQTT support ensure interoperability with third-party VMS and IoT ecosystems.

For environments requiring 24/7 monitoring with simultaneous high-resolution recording and intelligent alerting, the XNB-9003 delivers enterprise-class performance at a professional price point. Consider lens selection carefully: C/CS mount flexibility supports both fixed and motorized optics, critical for installers managing diverse field requirements.

Product Documentation
