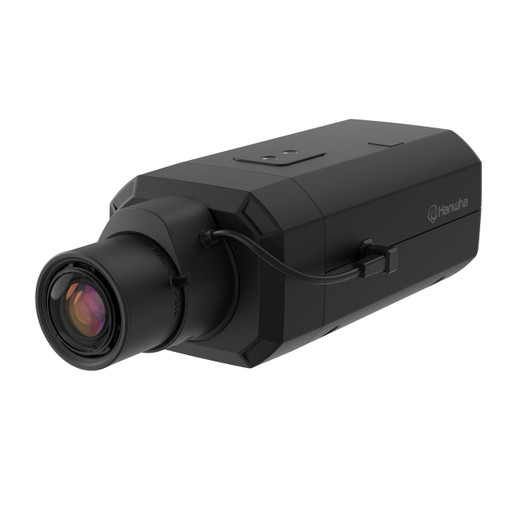

Imaging Device:
1/2.8" progressive CMOS
Resolution:
3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate:
H.265/H.264: Max. 30fps/25fps(60Hz/50Hz); MJPEG: Max. 30fps(@8MP Max. 5fps)
Min. Illumination:
Color: 0.05Lux(F1.2, 1/30sec, 30IRE); BW: 0.005Lux(F1.2, 1/30sec, 30IRE)
Video Out:
CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation; USB: Micro USB Type B, 1280x720 for installation
Focus Control:
Simple focus
Lens Type:
DC auto iris, P iris, Manual, I-CS
Mount Type:
C mount, CS mount
Camera Title:
Displayed up to 85 characters
Day & Night:
Auto(ICR)
Backlight Compensation:
BLC, HLC, WDR, SSDR
Wide Dynamic Range:
extremeWDR(120dB)
Digital Noise Reduction:
SSNRⅤ
Digital Image Stabilization:
Support(built-in gyro sensor)
Defog:
Support
Motion Detection:
8ea, 8point Polygonal zones
Privacy Masking:
32ea, 4point Quadrangle zones; - Color: Gray/Green/Red/Blue/Black/White; - Mosaic
Gain Control:
Off / Max gain / Manual
White Balance:
ATW / NarrowATW / AWC / Manual / Indoor / Outdoor
LDC:
Support(Fill/stretch mode)
Electronic Shutter Speed:
Minimum / Maximum / Anti flicker(2~1/12,000sec); prefer shutter control
Video Rotation:
Flip, Mirror, Hallway view(90°/270°)
Analytics:
Defocus detection, Directional detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Fog detection, Virtual line, Audio detection, Sound classification, Shock detection, Face/upper body detection
Business Intelligence:
People counting, Queue management, Heatmap
Serial Interface:
RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O:
2 configurable I/O ports
Alarm Triggers:
Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events:
When alarm trigger occurred; - File upload(image): e-mail/FTP; - Notification: e-mail; - Recording: SD/SDHC/SDXC or NAS recording at event triggers; - Alarm output; - Handover: PTZ preset, send message by HTTP/HTTPS/TCP; - Audio clip playback; - MQTT
Audio In:
Selectable(mic in/line in/Built-in mic); Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out:
Line out, Max.output level: 1Vrms
Ethernet:
Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression:
H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression:
G.711 u-law /G.726 Selectable; G.726(ADPCM) 8KHz, G.711 8KHz; G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps; AAC-LC: 48Kbps at 16KHz
Smart Codec:
Manual(5ea area), WiseStreamⅡ
Bitrate Control:
H.264/H.265: CBR or VBR; MJPEG: VBR
Streaming:
Unicast(20 users) / Multicast; Multiple streaming(Up to 10 profiles, 3 virtual channel support)
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Security:
HTTPS(SSL) Login Authentication; Digest Login Authentication; IP Address Filtering; User access log; 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2); Device Certificate(Hanwha Techwin Root CA, pre-installed); Secure by default certificate
Application Programming Interface:
ONVIF Profile S/G/T; SUNAPI(HTTP API); Wisenet open platform
Webpage Language:
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge Storage:
Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2)
Memory:
4GB RAM, 512MB Flash
Operating Temperature / Humidity:
-10°C~+55°C(+14°F~+131°F) / 0~95% RH (non-condensing)
Storage Temperature / Humidity:
-50°C~+60°C(-58°F~+140°F) / 0~90% RH
Input Voltage:
PoE(IEEE802.3af, class3), 12VDC, 24VAC
Power Consumption:
PoE: Max 12.95W, typical 8.2W; 12VDC: Max 11.5W, typical 7.5W; 24VAC: Max 13.5W, typical 8.9W; Power redundancy failover
Color / Material:
Black / Aluminum
Product Dimensions / Weight:
81(W)x67(H)x165(D)mm(3.19x2.64x6.48"), 880g(1.94 lb)
EMC:
FCC 47 CFR 15 Subpart B Class A; ICES-3(A)/NMB-3(A); CE/UKCA; - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3; VCCI CISPR 32 Class A; RCM AS/NZS CISPR 32 Class A; KS C 9832 Class A, KS C 9835
Safety:
UL 62368-1, CAN/CSA C22.2 NO. 62368-1; IEC/EN 62471
