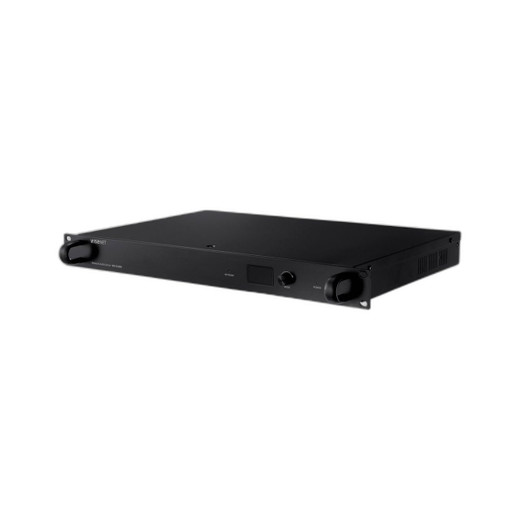

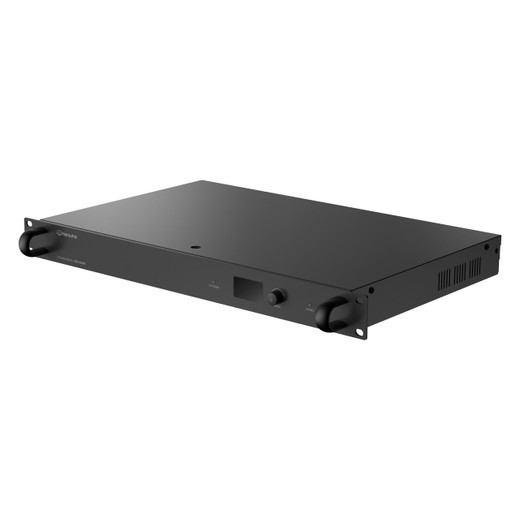

Hanwha SPA-S1000 IP Audio Server

Hanwha SPA-S1000 IP Audio Server

The Hanwha SPA-S1000 is a powerful, centralized IP audio server designed to manage large-scale audio installations with precision and reliability. As a dedicated audio control platform, it supports up to 512 IP audio devices across multiple zones, making it ideal for expansive environments requiring coordinated public address, background music, and emergency announcement systems.

Key Features

• Supports up to 512 zone control via multicast and 20 zones via unicast
• Multi-source audio management with up to 48 simultaneous sources (24 audio channels + 24 microphone channels)
• Group control capability for up to 255 distinct audio groups
• Advanced audio mixing and signal processing for crystal-clear output
• Scheduled and event-based audio playback for automated announcements and BGM distribution
• Dual power input support: AC 120-240V, 50/60Hz (10W) and DC 24V (350mA)
• Compact 1U rack-mounted form factor: 482(W) × 44(H) × 280(D)mm
• 10/100 Base-T Ethernet connectivity

Technical Specifications

• Network Protocols: IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP
• API Support: SUNAPI for custom integration and third-party application development
• Security: Multi-level password protection (admin, setup, user, guest) with SHA-2 encryption, digest authentication, and user access logging
• Functional Monitoring: Built-in connection verification and system logging for proactive fault detection
• Operating Conditions: -10°C to +40°C (-14°F to +104°F) operating temperature; 10–85% RH non-condensing humidity
• Weight: 3.02 kg
• Certifications: EMC (KS C 9832/9835, EN 55032/55035, FCC Part 15 Subpart B, ICES-003), Safety (KC 62368-1, EN 62368-1, UL 62368-1, CAN/CSA 62368-1)

Applications

Ideal for large-scale deployments in airports, shopping malls, corporate campuses, hospitals, transportation hubs, and educational institutions where centralized audio control, emergency notification, and coordinated announcements are critical. The SPA-S1000 integrates seamlessly into existing security and IT infrastructures.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SPA-S1000 excels as a backbone for enterprise-level IP audio systems. Its support for up to 512 zones via multicast delivers enterprise scalability while maintaining simplified network configuration. The dual power inputs (AC and DC 24V) enable redundancy and compatibility with uninterruptible power supplies, ensuring mission-critical availability.

Multi-source control with separate audio and microphone channels (24 each) provides flexibility for hybrid PA/paging scenarios. Built-in functional monitoring and user access logging meet security and compliance requirements for regulated environments. The SUNAPI interface allows custom integration with existing building management and emergency notification systems, eliminating vendor lock-in.

Suitable for organizations requiring centralized, resilient audio infrastructure.
