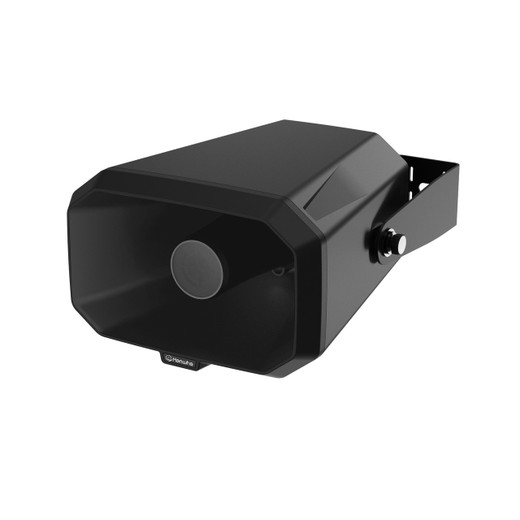

Hanwha SPA-H100B IP Horn Speaker

Hanwha SPA-H100B IP Horn Speaker

Overview

The Hanwha SPA-H100B is a professional-grade IP horn speaker built for high-impact audio delivery in security and public address environments where traditional speaker infrastructure isn't feasible. By leveraging standard IP networks and PoE+ power delivery, it eliminates separate audio cabling and simplifies integration with existing security systems, emergency management platforms, and facility control networks. The SPA-H100B supports SIP VoIP compatibility with major platforms—Grandstream, Yealink, Cisco, and Asterisk—making it interoperable with a wide range of enterprise telephony and paging systems.

Key Features

• Maximum SPL Output: 124dB at PoE+ power (IEEE 802.3at Type 2 Class 4) or 121dB at standard PoE (802.3af). This headroom matters in industrial and outdoor settings where ambient noise (machinery, traffic, weather) can mask announcements. The 3dB difference between PoE and PoE+ represents a practical choice based on your switch's available power budget.
• Optimized Audio for Speech Clarity: Frequency response of 650Hz–5.3kHz (−10dB) with a 1-inch HF dome driver and 111dB sensitivity per watt. This band is deliberately narrow—it prioritizes intelligibility of announcements and emergency alerts over music reproduction, meaning less wasted energy on low bass or high treble that don't carry voice clarity in noisy spaces.
• IP66 Weatherproof Rating: Direct rain and dust ingress are not a concern, and the unit operates reliably from −40°C to +55°C. If you need submersion-capable audio, this is not it (that requires IP67 or higher), but for outdoor wall mounts, canopies, and open loading docks, IP66 handles the real world without enclosures.
• PoE+ Single-Cable Deployment: No separate 24VDC or 110VAC power run required. One Ethernet cable handles both network and power, reducing installation labor and cable clutter. This matters significantly in retrofit scenarios where running additional power lines is expensive or disruptive.
• 1GB Internal Storage + microSD Support (up to 32GB): Store audio files, emergency messages, and background music directly on the device. The 1GB onboard memory enables standalone operation—no external server required for basic playback and scheduling. microSD expansion allows longer recording libraries or redundant backups without dependency on network connectivity.
• Multi-Zone PA Control (up to 256 Zones via Multicast): Route announcements to specific facility zones without buying separate zone amplifiers or control panels. A single network switch can handle 48 simultaneous audio sources across 256 zones, enabling complex facility layouts (retail floors, parking structures, manufacturing sections, campus buildings) to receive targeted or facility-wide messaging from one control point.
• Built-in Text-to-Speech (TTS): English (US/UK), German, French, Spanish, and Russian language support. TTS eliminates pre-recording overhead for routine messages—schedule an announcement or generate one on demand without audio files.
• Advanced Network Integration: Supports IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, and ICMP protocols. Password-protected admin, setup, user, and guest accounts with SHA-2 and Digest authentication ensure access control in multi-tenant or high-security facilities. User access logging provides audit trails for compliance environments.
• Dry Contact Input/Output: Integrate with external sensors, security panels, and alarm systems. Trigger announcements from motion detectors, door sensors, or fire alarms without requiring complex middleware.
• Audio Format Support: WAV and MP3 files at 64–320 kbps and sampling rates from 16kHz to 48kHz. Lower bitrates reduce storage and bandwidth for bandwidth-limited sites; higher rates preserve clarity on quality installations.
• Compact Form Factor: 241 × 155 × 307mm (9.5 × 6.1 × 12.1 inches) and 3.7kg. Small enough to mount in corners, under eaves, or on poles without dominating the visual landscape, yet powerful enough for large open spaces.

Integration & Compatibility

The SPA-H100B integrates with Hanwha IP cameras and network infrastructure through standard SIP-based VoIP platforms. If your facility runs Cisco Unified Communications Manager, Asterisk-based PBX systems, or Yealink endpoints, the speaker registers and responds to SIP INVITE commands natively. The 10/100 Base-T Ethernet interface connects to standard network switches; no proprietary gateway hardware is required.

SUNAPI (Hanwha's open integration framework) supports custom control workflows—trigger announcements from video management systems, facility management software, or security panels through HTTP API calls. This flexibility is essential for integrators building multi-vendor solutions.

Deployment Scenarios

Large retail environments and shopping centers benefit from zone-based paging that directs customer announcements and emergency notifications to specific sections. Manufacturing facilities and industrial plants use the SPA-H100B to broadcast equipment alarms, shift changes, and safety alerts across noisy factory floors. Parking garages and outdoor perimeters rely on the IP66 rating and extended temperature range for reliable operation. Transportation hubs and public venues (airports, bus terminals, parking structures) depend on high SPL output and speech clarity to reach crowds and noise-filled areas. Corporate campuses and campus security teams use multi-zone control to deliver building-specific announcements without facility-wide disruption. Emergency management and mass notification systems integrate the speaker as a last-mile delivery mechanism for critical alerts when network connectivity exists but traditional sirens or tone systems are already deployed.

Certifications & Compliance

The SPA-H100B holds UL 62368-1 (Safety), FCC Part 15 (RF Emissions), and CE compliance, ensuring deployment across North American and European markets. Review your regional audio and occupational safety standards (e.g., OSHA, ANSI S1.4 sound level metering) if you're designing a system for workplaces or public venues where SPL limits apply.

Frequently Asked Questions

Q: Does the SPA-H100B support two-way voice paging?

A: Yes. The speaker supports full SIP VoIP call handling, meaning it can receive incoming SIP calls for two-way announcements. The internal microphone and line-level audio input enable voice responses back to the calling station, making it suitable for intercom-style communication and security paging systems.

Q: Can I use standard PoE (802.3af) instead of PoE+?

A: Yes. The SPA-H100B delivers 121dB SPL on standard PoE and 124dB on PoE+. If your switch's power budget is constrained, standard PoE will power the unit and provide adequate coverage for most indoor and sheltered outdoor deployments. The 3dB difference is noticeable in very large or extremely noisy spaces; for typical retail, office, or industrial settings, PoE-only operation is acceptable.

Q: What audio formats does it support?

A: WAV and MP3 files at bitrates from 64–320 kbps and sampling rates from 16kHz to 48kHz. The unit does not support Opus, AAC, or other modern codecs, so plan to convert or record in WAV/MP3 during deployment.

Q: How many announcements can I store on the device?

A: The SPA-H100B includes 1GB of internal storage plus microSD card support up to 32GB. At typical speech bitrates (64–128 kbps MP3), a 32GB card holds roughly 50–100 hours of audio. Internal storage alone provides 10–20 hours, sufficient for routine facility announcements and emergency messages without external servers.

Q: Is the SPA-H100B suitable for outdoor deployment in extreme climates?

A: The IP66 rating and −40°C to +55°C operating range support cold-start outdoor use. It is not heated or cooled internally, so in sub-zero climates you should test audio quality before deployment; in extreme heat (above 55°C), the unit may throttle performance. Consider a small weather enclosure or canopy if temperatures regularly exceed the rated range.

Q: Does it integrate with my VMS or security control panel?

A: Integration depends on your system. If your VMS or panel supports SIP, HTTP API calls, or ONVIF Profile T (audio output), the SPA-H100B is compatible. The speaker also has dry contact input/output for trigger-based integration with non-networked security panels. Consult your integrator or system documentation to confirm compatibility before purchase.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SPA-H100B excels where traditional audio infrastructure falls short. By eliminating the need for separate amplifiers, zone controllers, and dedicated cabling, it transforms an existing IP network into a unified security and facility communication system. The combination of PoE+ power delivery and SIP compatibility removes deployment friction—no external power supplies, no proprietary gateway boxes, no complex middleware. For integrators, this means faster quotes, shorter installation windows, and fewer points of failure.

Technical Highlights:

• 124dB SPL (PoE+) vs. 121dB (PoE): The dual-mode power delivery provides real flexibility. On a power-constrained switch, you don't sacrifice the entire deployment—you trade 3dB of peak SPL for simplicity. In large facilities or noisy industrial environments, PoE+ unlocks the full output needed to cut through ambient noise. For typical office or retail settings, PoE-only performance is practical.
• 650Hz–5.3kHz Frequency Response: This narrow band is deliberate. Voice intelligibility dominates the design; you won't get crisp bass or high-fidelity music, but in emergency or security scenarios, that's a feature, not a limitation. Speech clarity in noisy environments is worth far more than audio fidelity.
• 256-Zone Multicast Control: Managing 256 zones with a single network switch eliminates hardware scaling headaches. Large retail chains, university campuses, and industrial parks can build facility-wide paging systems without zone amplifier racks or manual zone selection logic.
• 1GB Internal + 32GB microSD Capacity: Standalone operation without external servers is a significant reliability win. If your network goes down, the speaker can still play pre-loaded emergency messages, scheduled announcements, or background music from local storage. This is not a substitute for a proper emergency system, but it's a valuable fallback.

Deployment Considerations:

• SIP Dependency: The SPA-H100B is a SIP-first device. If your facility uses analog Gentner-style paging or a proprietary IP-PBX that doesn't support SIP, you'll need a gateway or integration middleware. Confirm SIP compatibility with your PBX vendor before design phase.
• Audio Codec Limits: WAV and MP3 only. If your archive system stores Opus or AAC, budget time for transcoding during deployment. This is a minor constraint, but it's worth surfacing early.
• IP66 Does Not Equal Submersion: IP66 means rain and dust are fine; full submersion or water jets from hoses will fail it. If you're installing near water features, fountains, or high-pressure washdown areas, specify IP67 or higher (consult Hanwha for alternative models).
• Frequency Response Trade-off: The 650Hz–5.3kHz band is optimized for speech but will sound thin if you're playing background music or tone-based alerts. Test samples during pre-sales validation if music or multi-frequency alerts are part of the plan.

The SPA-H100B is strongest in scenarios where network infrastructure is already mature and security/facility teams need fast deployment of paging zones without audio cabinets. Manufacturing facilities, retail chains, corporate campuses, and parking structures are ideal fits. If you're building from scratch with analog-only infrastructure, the cost of a SIP gateway may shift the ROI calculation; size the decision against total system cost and integration timelines.
