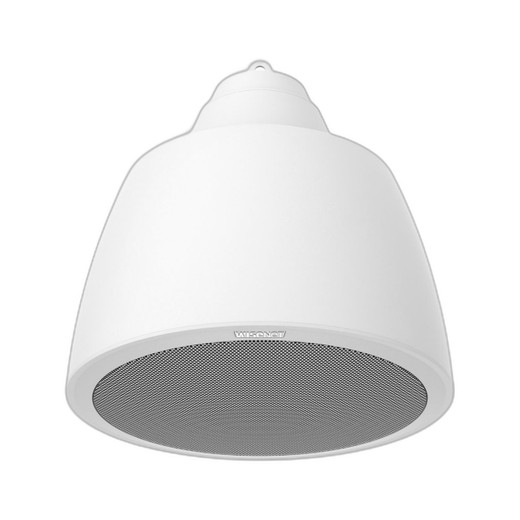

Hanwha SPA-P100W White IP Pendant Speaker

Hanwha SPA-P100W White IP Pendant Speaker

The Hanwha SPA-P100W is a professional-grade IP pendant speaker engineered for demanding public address, emergency alert, and background music applications. Delivering up to 101dB sound pressure level with PoE+ power, this speaker combines powerful audio output with seamless network integration, making it an ideal solution for retail environments, transportation hubs, corporate campuses, and educational facilities.

Key Features

• 101dB maximum sound pressure level (PoE+) with 97dB capability on standard PoE
• 10W Class D amplifier with 2-way speaker design (8" woofer + 2" tweeter)
• PoE/PoE+ powered for simplified single-cable installation and reduced deployment costs
• 1GB internal memory expandable to 32GB via Micro SD card
• Dual dry contact input/output for relay control and integration
• Built-in web interface for centralized administration and scheduling
• Compact pendant design (Φ269 × 256mm) in white or black finish

Audio Performance & Connectivity

The SPA-P100W delivers a wide frequency response of 130Hz to 20kHz with 91dB sensitivity at 1 watt, ensuring clear speech intelligibility and rich audio reproduction. Coverage patterns are optimized for directional sound delivery with 130° horizontal and 60° vertical spread at mid-frequencies. Supported audio formats include WAV and MP3 (mono/stereo, 64–320 kbps) with sampling rates from 16kHz to 48kHz.

Network connectivity is robust, supporting IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, and ICMP protocols. The speaker integrates with industry-standard SIP clients (Grandstream, Yealink, Cisco, MicroSIP) and PBX systems, enabling VoIP functionality. Multi-source dynamic PA control supports up to 48 audio sources across 256 zones via multicast, or 20 zones via unicast, with support for up to 255 groups.

Advanced Features

• Text-to-Speech (TTS) support in English (US/UK), German, French, Spanish, and Russian
• SUNAPI integration for third-party application development
• Multi-level security with SHA-2 encryption, digest authentication, and user access logging
• Virtual and dry contact event triggering for automated responses
• Built-in speaker test tool with graphic level meter for audio validation
• Connection verification and system logging for operational monitoring

Environmental & Compliance

Rated for operating temperatures of -20°C to +50°C and humidity levels of 10–85% RH (non-condensing), the SPA-P100W performs reliably in indoor and controlled outdoor environments. The unit meets FCC Part 15 Subpart B (EMC), ICES-003, and UL 62368-1 / CAN/CSA 62368-1 (Safety) certifications, ensuring compliance with North American standards.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SPA-P100W stands out for its balanced combination of acoustic power and network flexibility. The 101dB output with PoE+ ensures adequate volume for mid-to-large venues without requiring dedicated power infrastructure. The dual dry contacts enable straightforward integration with existing relay-based security systems, while SUNAPI and SIP support provide pathways for modern IP-based control.

The 256-zone multicast capability makes this speaker suitable for enterprise-scale distributed audio systems. For organizations deploying network-based PA systems, the SPA-P100W offers a cost-effective pendant form factor that minimizes aesthetic impact while maintaining professional audio quality.
