Network camera > Inputs:
Max. 32CH
Network camera > Resolution:
32MP ~ CIF
Network camera > Protocols:
Wisenet, ONVIF
Decoding > Local Display:
Dual HDMI: 4K@30Hz + 1080p@60Hz
Decoding > Multi Screen Display:
36 division max display
Decoding > Resolution:
32MP@15fps, 12MP@30fps, 8.3MP@120fps
Operating System > Embedded:
Linux
Record > Compression:
H.265, H.264, MJPEG, WiseStream(H.265, H.264)
Record > Recording Bandwidth:
Up to 400 Mbps
Record > Resolution:
32MP ~ CIF
Record > Mode:
Normal, Dual Stream, Schedule, Event
Record > Event Trigger:
Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
Record > Event Action:
e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown
Search & Play > Playback Bandwidth:
Max. 64Mbps(32CH simultaneously)
Search & Play > User:
Max. 4 Users (Local 1, Remote 3)
Search & Play > Simultaneous playback:
Max. 80CH(Local 32CH, Remote 16CH per user)
Search & Play > Fisheye Dewarping:
Support (Local 1CH), CMS
Search & Play > Mode:
Date & Time(Calendar), Event list, Text Search, Smart Search
Search & Play > Resolution:
CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
Search & Play > Playback Control:
Fast/Slow Forward / Backward, Move one step Up / Down
Storage > Supported HDD:
Up to 10TB
Storage > HDD Slot:
SATA 16ea(Max. 160TB, Non-RAID mode), Hot swap
Storage > External:
iSCSI storage
Storage > RAID:
RAID-5/6(Array Size : 8 HDD x 2 Array)
Backup > File backup:
BU/Exe/AVI(GUI), JPG/AVI(Network)
Backup > Function:
Multi channel(Up to 16CH) Play, Date-Time/Title display
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS:
Hanwha DDNS
Transmission Bandwidth:
Max. 400Mbps
Audio > Input/Output:
32 CH(network)
Audio > Compression:
G.711, G.726, AAC(16/48KHz)
Audio > Audio Communication:
2-Way
Max Remote Users:
Search(3), Live Unicast(10), Multicast(20)
Security:
IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer > Supported OS:
Windows 10, macOS 10.13
Web viewer > Supported browser:
Google Chrome, Microsoft Edge, Mac Safari
Viewer Software:
Webviewer, Smart Viewer, Wisenet mobile, CGI/SUNAPI
Camera Setup > Register:
Auto, Manual
Camera Setup > Item:
IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View
PTZ > Control:
Via GUI, Webviewer, SPC-2000
PTZ > Preset:
300 Presets
Smart phone > Support Model:
iOS, Android
Smart phone > Protocol Support:
RTP, RTSP, HTTP, CGI(SUNAPI)
Smart phone > Control:
Live 16CH(Multi-Profile Support), Playback 4CH
Smart phone > Max. Remote Users:
Search(3), Live Unicast(10)
Redundancy > Failover:
N+1
Redundancy > ARB:
Support
Easy configuration:
P2P(QR code)

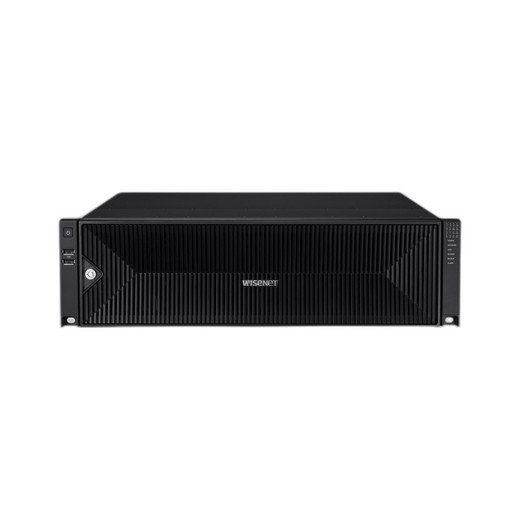

Front > Indicator:
HDD, Alarm, Power, Record, Backup, Network, RAID
Storage Capacity:
OK
Reset:
Power button
HDD Key Lock:
OK

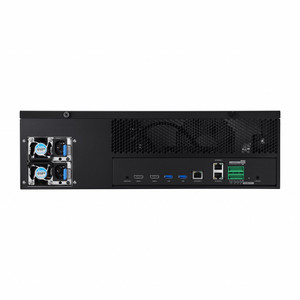

HDMI:
2EA
Audio Support:
Out 1EA (3.5mm Audio Jack)
Ethernet:
RJ-45 3EA (LAN/WAN, 1Gbps)
Alarm:
In 8EA, Out 4EA
USB:
4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0)
Power inlet:
AC 1EA
Log > Log List:
Max. 100,000 (System Log, Event Log each)
System Control:
Mouse, Keyboard, Web, Controller (SPC-2000)
Language:
English, French, German, Italian, Spanish, +more
Operating Temperature:
0°C to +40°C(32℉ to 104℉)
Operating Humidity:
20% ~ 85% RH
Input Voltage:
100 ~ 240 VAC ±10%; 50/60 Hz
Power (Max:
Max. 285W (972.5 BTU with HDD 16ea)
Color / Material:
Black / Metal
Dimension (WxHxD:
440.0 x 132.0 x 571.1mm
Weight:
Approx. 13.6Kg(30 lb, HDD not included)
AI Search > Object Attribute:
Person, Face(with Wisenet AI camera), Vehicle, Lisence plate
AI Search > LPR:
English, Number (Wisenet AI, P/X Camera)
Product Type:
NVR
Local Storage:
OK
Housing Color:
White
Onvif:
Yes
Mount Type:
Wall; Rack
Compression:
H.265
Resolution:
32MP
Power Watts:
285W
Frame Rate:
1920fps
