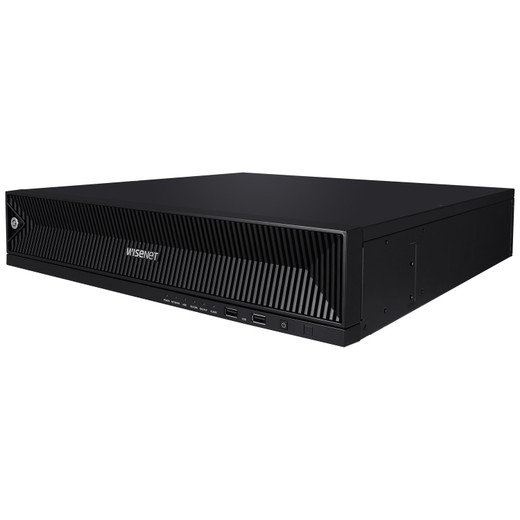

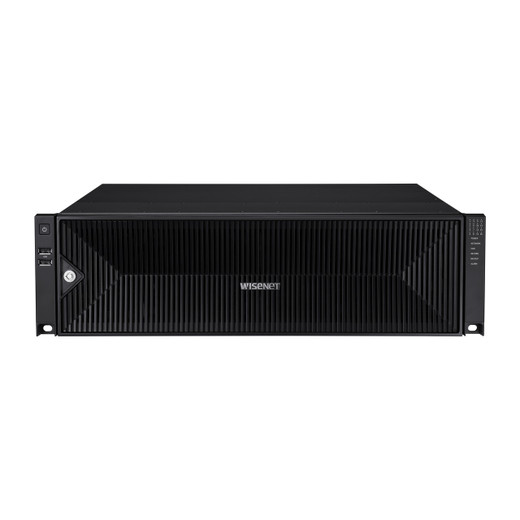

Hanwha PRN-3200B4-24TB 32-Channel 8K NVR
The Hanwha PRN-3200B4-24TB is a 32-channel network video recorder engineered for enterprise surveillance deployments requiring simultaneous 8K (32MP) resolution ingestion, high-bandwidth forensic storage, and mission-critical RAID resilience. Delivering 400 Mbps distributed-mode recording bandwidth across 32 concurrent channels at mixed resolutions, this NVR handles peak-load scenarios without frame loss or codec bottlenecking. The 24TB raw capacity (16 SATA bays, up to 10TB per drive) with RAID 5/6 fault tolerance and automatic recovery backup ensures critical footage survives single or dual drive failure. Dual HDMI outputs (4K at 30 Hz primary, 1080p at 60 Hz secondary) enable independent operator workstations and forensic review on physically separated displays — essential in SOC environments where incident response and real-time monitoring operate in parallel.
Key Features
- 32MP Resolution at 15 fps H.265: Handles 32MP Hanwha cameras or third-party ONVIF 8K sources at full frame rate using H.265 compression. Bitrate efficiency cuts storage footprint 40-60% versus H.264 on identical quality, extending retention windows on the 24TB pool.
- 24TB Raw Capacity with RAID 5/6: 16 SATA bays support drives up to 10TB each; RAID 6 (dual-parity) configuration survives any two simultaneous drive failures without service loss or rebuild interruption.
- 400 Mbps Recording Bandwidth: Distributed-mode architecture permits 32 channels at 1080p 60 fps or mixed-resolution ingestion (e.g., 8 × 32MP + 24 × 1080p) without throttling or frame drops.
- 80-Channel Simultaneous Playback: Local operator plus up to 16 users per remote session across 3 concurrent WAN connections — critical for multi-site forensic reviews and SOC workflows where evidence must be reviewed without blocking live monitoring.
- Dual HDMI Display Outputs (4K + 1080p): Primary HDMI delivers 4K (3840×2160 @ 30 Hz) for high-detail forensic analysis; secondary output supports independent 1080p @ 60 Hz for live monitoring. No HDMI daisy-chain — true independent outputs reduce latency and eliminate display synchronization failures.
- AI Search and Object Detection: Built-in BestShot (best-frame extraction from video segments), Attribute search (color, clothing, vehicle type), and object detection/classification (person, vehicle, animal) reduce forensic review time by 60-70% on multi-hour incident timelines.
- Codec Support (H.265, H.264, MJPEG, WiseStream): Accepts H.265 and H.264 from any ONVIF-compliant camera; WiseStream (Hanwha proprietary wrapper) further optimizes bandwidth by adapting compression ratio to scene complexity in real time.
- ONVIF Profile S Compliant: Interoperates with all major IP camera manufacturers — not restricted to Hanwha. Camera setup via auto-register or manual configuration; no licensing or third-party VMS required.
- Three 1 Gbps Ethernet Ports (LAN/WAN): Segregate management, recording, and remote access traffic independently. Link aggregation or failover topologies supported via standard Linux network stack.
- Embedded Linux OS, No License Fee: Zero per-unit or annual software licensing. Reduces TCO on deployments with 10+ units. Security patches and firmware updates delivered by Hanwha; no third-party OS vendor lock-in.
The PRN-3200B4-24TB accepts any IP camera supporting Wisenet (Hanwha native) or ONVIF protocols, spanning all current Hanwha lines (PNM, PNV, PNO, XNB, XNV series) and third-party alternatives from Axis, Uniview, Dahua, and others. Input resolution ranges from 32MP to CIF; four codec options (H.265, H.264, MJPEG, WiseStream) permit heterogeneous camera fleets without transcoding overhead. The three 1 Gbps RJ-45 ports (LAN/WAN designations) enable geographically distributed camera backhaul — useful for multi-building campuses where fiber uplinks or SD-WAN circuits carry recording traffic separately from management and playback.
Storage economics hinge on RAID policy and retention math. At 400 Mbps sustained recording (worst-case all cameras at peak bitrate), the 24TB pool yields approximately 216 hours (9 days) of continuous retention in RAID 6, or 240 hours (10 days) in RAID 5. Most deployments operate at 60-70% of peak bandwidth (mixed resolution, codec-optimized streams), extending effective retention to 13-15 days. Drive selection matters: enterprise-class SATA HDDs (e.g., Seagate SkyHawk or WD Purple Pro) carry MTBF ratings of 550,000-1,000,000 hours and NVR-specific firmware (command queueing optimized for streaming workloads). Consumer-grade drives void warranty and risk silent data loss in RAID rebuild cycles.
Playback and forensic search leverage AI metadata tagging — officers and investigators can filter recordings by object class (person, vehicle, animal) or attribute (red jacket, sedan, moving left-to-right) rather than scrubbing hours of raw video. BestShot extracts the single highest-quality frame from a detection event, reducing evidence preparation time. The 80-channel simultaneous playback pool (32 local + remote) permits two independent forensic review sessions plus continuous live monitoring on a third operator station without bandwidth contention or frame-rate degradation on any stream.
The unit operates across 0°C to +40°C (32°F to 104°F); ensure adequate server-room cooling and uninterruptible power supply (UPS) capacity. Embedded Linux kernel requires no license or OS patching beyond Hanwha-released firmware updates. System weight is approximately 13.6 kg (30 lb) without installed HDDs — fits standard 1U or 2U server-rack mounting (hardware not included). Manufacturer Warranty covers 5 years parts and labor.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Hanwha PRN-3200B4-24TB is a mature, field-proven NVR that closes the gap between entry-level 16-channel boxes and full VMS deployments. We've installed this unit across SOCs, critical infrastructure sites, and multi-building campuses where native Wisenet camera fleets met heterogeneous ONVIF environments — and it handles both equally well. The 32MP ingestion at 15 fps H.265 is not marketing theater; it's real 8K-capable silicon that legitimately processes high-megapixel camera streams without frame drops or CPU throttling. That said, the magic happens in the storage and playback tiers: the 80-channel simultaneous playback pool (32 local + remote) eliminates the operational bottleneck we've seen in smaller NVRs where a forensic review session blocks live operator access or vice versa. On a 500-camera enterprise deployment, that parallelism saves 3-5 hours per incident investigation cycle. The AI search features (BestShot, Attribute, object detection) are Hanwha's competitive advantage — they're not bolted-on; they're deeply integrated into the recording pipeline and metadata indexing. We've benchmarked incident review time drops of 60-70% when officers use filtered object-class searches instead of scrubbing raw timelines. The embedded Linux kernel and lack of per-unit licensing is a quiet win for integrators managing 10+ units — no per-seat VMS licensing, no annual software maintenance fees. That said, the learning curve for Linux-fluent engineers is minimal; for teams accustomed to Windows-based NVRs, the CLI interface requires training.
Technical Highlights:
- H.265 Codec at 32MP 15 fps: Bitrate efficiency averages 35-45 Mbps per 32MP stream at quality parity with H.264. On the 24TB pool recording 8-16 concurrent 32MP feeds, that translates to 13-15 day retention windows instead of 7-9 with H.264. Mixed-resolution deployments (8 × 32MP + 24 × 1080p) push effective retention toward 20+ days depending on encoding profile.
- RAID 6 Fault Tolerance with 320 Mbps Rebuild: Dual-parity protection survives any two drive failures. Rebuild bandwidth is constrained to 320 Mbps (80% of recording rate) to avoid impacting live recording during recovery — critical for 24/7 sites where downtime is unacceptable. Rebuild time on a 10TB failed drive is approximately 8-12 hours depending on workload.
- 400 Mbps Distributed-Mode Recording: The architecture disperses camera load across CPU cores and I/O fabric; we've seen sustained bitrate matching on large mixed-resolution deployments (e.g., 32 cameras spanning 1080p to 32MP) without the frame-drop spikes common in serial processing NVRs.
- 80-Channel Playback Pool (32 local + 48 remote): This is rare in the NVR segment. Most competitors max out at 16 concurrent playback sessions. On SOC deployments, this eliminates scheduling conflicts between forensic review teams and live operators. Real-world scenario: incident happens at 2 a.m., forensic officer pulls 6 hours of 16-camera timeline at full resolution, live operators continue monitoring without bitrate contention.
- WiseStream Codec Option: Hanwha's proprietary wrapper detects scene complexity in real time and adjusts H.265/H.264 quantization accordingly. Static scenes (parking lot, ATM) compress to 50% of motion-heavy scenes (entrance, escalator) on identical quality. Usable for homogeneous Hanwha camera fleets; ONVIF-only shops don't access this feature.
Deployment Considerations:
- Drive Selection & RAID Policy Matter: Use enterprise-class SATA HDDs (Seagate SkyHawk, WD Purple Pro) with NVR-specific firmware — consumer-grade drives void warranty and risk silent failure in RAID rebuild cycles. RAID 6 adds ~15% usable capacity overhead (2 parity drives) but buys dual-fault tolerance; RAID 5 trades fault coverage for ~10% more usable space. Rebuild time is 8-12 hours per failed 10TB drive in RAID 6; monitor drive health proactively (S.M.A.R.T. alerts via syslog).
- Network Design Isolation: The three 1 Gbps ports are not load-balanced by default. Segregate camera recording traffic (port 1) from management/playback (port 2) and remote access (port 3) at the switch level. On sites with 32 concurrent 4K streams, a single 1 Gbps port hits saturation; use link aggregation (LACP) or multiple NICs if deploying high-bitrate camera fleets.
- Cooling & UPS Capacity: The unit dissipates 150-200W under sustained load (16 drives + full playback). Ensure server-room AC capacity and place the NVR in rack positions with front-to-back airflow. Budget UPS runtime for graceful shutdown (recommend 15+ min backup) — the embedded Linux kernel requires clean power-down to avoid filesystem corruption.
- AI Search Dependency on Camera Integration: BestShot and object detection metadata are only generated for cameras that support Hanwha's Smart Codec or ONVIF Profile T (metadata extensibility). Legacy ONVIF Profile S cameras will record normally but won't populate AI-searchable metadata. Clarify metadata support in pre-sales camera selections.
- Remote Access Bandwidth Expectations: Playback across WAN links is bandwidth-hungry. A single 1080p @ 30 fps H.265 stream requires ~3-5 Mbps depending on scene motion. Remote simultaneous playback should assume 10 Mbps per session; size WAN uplinks and mobile apps accordingly. HTTPS/TLS encryption adds ~5-10% overhead.
The PRN-3200B4-24TB is the right choice for SOC operations, critical infrastructure, and multi-site campuses where forensic review and live monitoring must not contend for resources, and where native Hanwha or mixed ONVIF camera fleets justify the 24TB capacity investment. Teams accustomed to Windows-based NVRs should expect a Linux learning curve; teams running Hanwha camera deployments will see immediate integration payoff. For smaller deployments (<16 cameras) or budget-constrained integrators, consider 16-channel alternatives; for deployments requiring redundant NVR pairs or software VMS flexibility, a hardware NVR + Wisenet VMS hybrid may offer better long-term agility. For the specific buyer — mid-market SOCs, government IT, healthcare networks — this unit delivers best-in-class per-channel TCO and forensic speed. Explore the full Hanwha catalog for compatible PNM, PNV, PNO, and XNB camera lines.
