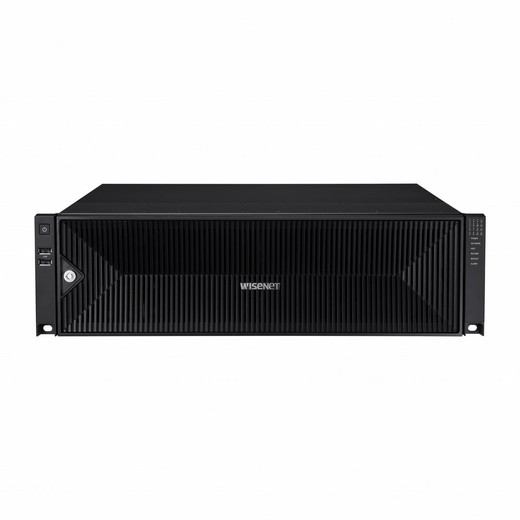

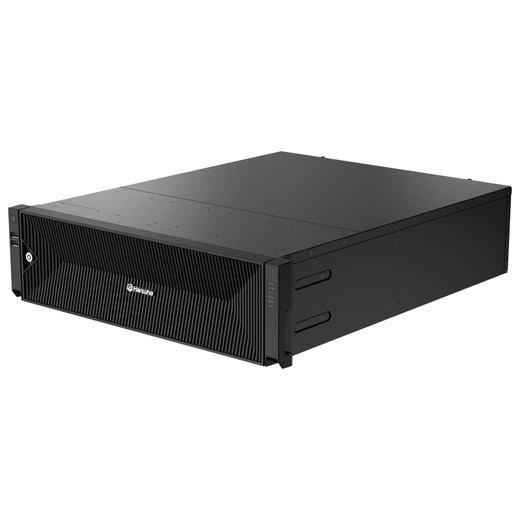

Hanwha PRN-3200B4-48TB 32-Channel 8K NVR
The Hanwha PRN-3200B4-48TB is an Intel-based 32-channel network video recorder engineered for large-scale enterprise surveillance deployments. Built for organizations requiring massive storage capacity, license-free recording, and maximum resolution capture, this NVR delivers professional-grade performance with 48TB raw capacity and support for up to 32MP recording resolution across all channels.
Key Features
- 32-channel 8K capable network video recorder
- 48TB raw storage capacity via 16 fixed internal SATA HDDs (10TB maximum per drive)
- 32MP maximum recording and display resolution
- 400 Mbps recording bandwidth in distributed mode; 150–320 Mbps in normal/RAID modes
- H.265, H.264, and MJPEG codec support with WiseStream technology variants
- Dual HDMI display outputs: HDMI 1 at 4K (3840×2160, 30Hz) + HDMI 2 at 1080p (1920×1080, 60Hz)
- Up to 36-division multi-screen clone mode on primary display
- RAID 5 & 6 support with Automatic Recovery Backup for data integrity
- Dual stream recording with WiseStream bandwidth optimization
- Fisheye dewarping support for panoramic cameras
Recording & Storage Performance
The PRN-3200B4-48TB distributes recording loads efficiently across its 32 channels with configurable bandwidth allocation. Distributed mode achieves 400 Mbps aggregate throughput, while standard and RAID configurations deliver 150–320 Mbps depending on redundancy requirements. WiseStream dual-stream technology reduces storage consumption without sacrificing image quality, making it ideal for continuous archival scenarios.
Storage reliability is ensured through enterprise-grade RAID 5 and RAID 6 configurations with Automatic Recovery Backup, protecting against drive failures while maintaining full operational capacity. The 48TB capacity supports extended retention periods for compliance-heavy deployments.
Display & Resolution Capabilities
Dual HDMI outputs provide flexible monitoring arrangements: 4K resolution on the primary display supports up to 36-division layouts for comprehensive live-view surveillance, while the secondary 1080p output handles up to 16-division layouts. Playback performance scales across resolutions—32MP at 15 fps (H.265), 12MP at 30 fps, and up to 960 fps at 720p for forensic analysis and fast-motion review.
Ideal Applications
- Enterprise data centers and server farms
- Large-scale retail and shopping center networks
- Transportation hubs and logistics facilities
- Government and municipal surveillance infrastructure
- Critical infrastructure and utility monitoring
- Security integration projects requiring high-capacity, scalable solutions
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PRN-3200B4-48TB positions itself as a carrier-grade NVR for organizations that cannot tolerate storage constraints or performance bottlenecks. Its Intel-based architecture ensures reliability and compatibility with modern IP camera ecosystems, while WiseStream codec variants deliver operational cost savings through intelligent bandwidth management. The dual RAID support and ARB feature appeal to mission-critical deployments where unplanned downtime is unacceptable.
Security integrators will appreciate the flexible display configuration and straightforward scaling to larger estates. For organizations standardized on Hanwha PanoGuard IP cameras, this NVR provides seamless integration with native fisheye dewarping, eliminating post-processing overhead.
