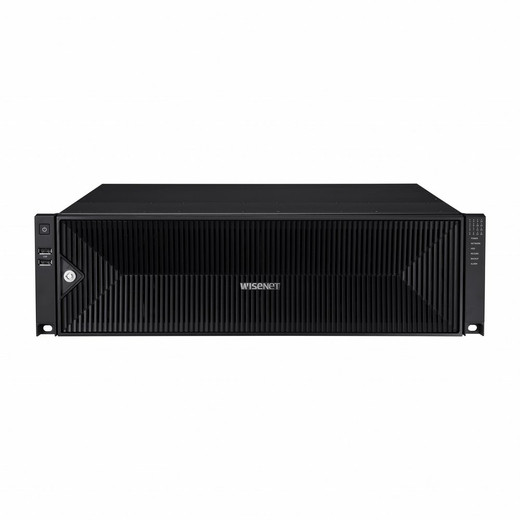

Hanwha PRN-3200B4-16TB 32-Channel 8K NVR
The Hanwha PRN-3200B4-16TB is an Intel-based network video recorder engineered for large-scale surveillance deployments requiring 8K resolution support and enterprise-grade reliability. This 32-channel NVR delivers 400 Mbps distributed recording bandwidth, accommodates up to 32 MP resolution cameras, and includes 16TB of internal storage across 16 fixed SATA drives. With license-free recording, multi-codec flexibility, and RAID data protection, it serves as a robust backbone for mixed-camera security environments and high-demand surveillance operations.
Key Features
- 32-channel network video recorder with 32 MP resolution support
- 400 Mbps distributed recording bandwidth (150 Mbps normal mode)
- 16TB raw storage on 16 fixed internal SATA drives (up to 10TB per drive)
- Multi-codec support: H.265, H.264, MJPEG, and WiseStream compression
- RAID 5 and RAID 6 data protection with automatic recovery backup
- Dual-stream recording for simultaneous high-resolution and bandwidth-efficient archiving
- Dual-display output: HDMI 1 (4K @ 30Hz) and HDMI 2 (Full HD @ 60Hz)
- Up to 36 multi-screen layout divisions on primary display
- Web UI 2.0 with plugin-free remote monitoring
- Simultaneous playback for up to 4 users (1 local, 3 remote) at 32 Mbps
- Fisheye dewarping support (local, single-channel)
Recording & Storage Capabilities
This NVR excels in handling high-bandwidth surveillance workflows. The 32-channel architecture supports simultaneous recording from 32 network cameras at up to 32 MP resolution. H.265 codec efficiency reduces storage requirements while maintaining image quality, ideal for long-term archival and bandwidth-constrained networks. Dual-stream recording enables operators to maintain high-resolution primary streams alongside bandwidth-optimized secondary streams, essential for mixed-deployment environments.
The 16TB internal storage capacity, distributed across 16 fixed SATA drives, provides robust redundancy through RAID 5 and RAID 6 configurations. Automatic recovery backup ensures data integrity following drive failures, critical for continuous surveillance operations.
Display & Remote Access
Dual HDMI outputs deliver flexible monitoring scenarios. The primary HDMI 1 supports 4K resolution (3840×2160 @ 30Hz) with up to 36-division multi-screen layouts, while HDMI 2 provides Full HD output (1920×1080 @ 60Hz) with up to 16-division layouts. Web UI 2.0 eliminates plugin requirements, simplifying remote access across browsers and devices. Dynamic layout, virtual channel view, and clone/expand display modes adapt to diverse operational needs.
Applications
Ideal for government agencies, transportation hubs, large retail campuses, industrial facilities, and enterprise security operations requiring high-channel-count recording with extended storage retention and fault tolerance.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PRN-3200B4-16TB positions itself in the premium NVR segment, targeting operators who prioritize scalability and reliability over cost. The 400 Mbps distributed bandwidth and 32 MP support future-proof deployments against resolution creep, though the 150 Mbps normal-mode constraint requires careful bandwidth planning in resource-limited networks. H.265 codec adoption delivers meaningful storage efficiency, but multi-codec support demands robust transcoding infrastructure for heterogeneous camera fleets.
RAID 5/6 protection with ARB is enterprise-standard, though the 16TB capacity may necessitate external expansion in 24/7 long-retention scenarios. Dual-display capability and plugin-free web access enhance operational flexibility, making this unit suitable for SOCs requiring both local control and distributed remote monitoring. Validate camera compatibility and bandwidth requirements before deployment.
