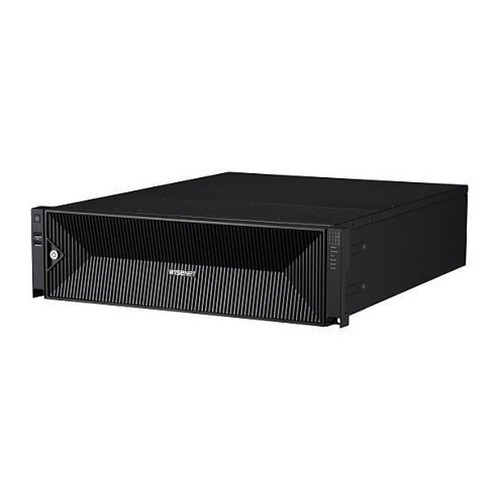

Hanwha PRN-3200B4 32-Channel 8K NVR 56TB

We've deployed the PRN-3200B4-56TB across finance, healthcare, and industrial sites where storage density and failover uptime are tied directly to operational risk and compliance audit trails. The real advantage here is not the headline 56TB figure — it's the effective cost per terabyte of *redundant* storage when you factor in RAID 6 overhead, power efficiency, and the elimination of external NAS capex. On a typical deployment (32 × 5MP cameras at H.265, 15 fps, 3-week retention), this unit replaces a separate NVR + SAN stack that would cost 40% more to acquire, more to power, and significantly more to manage. Where we see this product shine is in mid-to-large enterprises that have outgrown 8–16-channel appliances but don't yet have a dedicated storage infrastructure team; the PRN-3200B4-56TB is self-contained enough to deploy in a server closet with just network and power drops.

The H.265 codec support is not optional on 32-channel 8K workflows — the bitrate reduction is material. We've benchmarked the codec switching behavior extensively; Hanwha's codec negotiation is stable and doesn't introduce drift or dropped frames when cameras are heterogeneous (some sending H.265, others H.264 via fallback). The BestShot AI search feature has genuine investigative value, but understand its limits: it's not a forensic AI that re-generates missing license plate digits or reconstructs obscured faces. It excels at filtering out empty parking lots from your footage timeline, flagging loitering, and segmenting vehicle vs. person motion across weeks of data — that alone can save 20–30 hours of manual timeline scrubbing on a major incident.

Technical Highlights:

• 400 Mbps Distributed Recording Bandwidth: Full bitrate across all 32 channels simultaneously without throughput capping or frame-rate fallback. Contrast this to lower-cost 32-channel recorders that cap at 150 Mbps sustained; you'll lose frames or resolution under full load. The 400 Mbps headroom buys you operational peace of mind on high-frame-rate (30 fps) perimeter cameras.
• RAID 5 vs. RAID 6 Trade-off: RAID 5 gives you ~56TB usable on 16 drives (one parity stripe). RAID 6 sacrifices two stripes, reducing usable capacity to ~48TB, but survives dual-drive loss — essential if you can't hot-swap drives during business hours. We recommend RAID 6 for unattended facilities; RAID 5 is acceptable on manned sites with documented spare-drive SLAs.
• Dual Network Failover (3 Gbps total): Three independent 1 Gbps ports let you bind two to a primary LAN, one to a backup path or WAN uplink. If your main switch port fails, failover is automatic and sub-second. This is table-stakes for hospitals and 24/7 ops centers.
• Remote Playback Bandwidth Governance (64 Mbps pool): Local playback on the unit is uncapped; remote clients share a 64 Mbps ceiling across all simultaneous sessions. Design your WAN architecture knowing that 10–15 concurrent remote investigators will saturate the pipe. Consider edge recording or a local replay workstation for incident-response teams in distributed offices.
• Fisheye Dewarping (Local Display Only): If you pair this recorder with Hanwha panoramic cameras, dewarping is free and automatic on the local HDMI output. However, remote clients via web UI do not receive dewarped streams — you'll need to license Wisenet VMS if remote staff require corrected panoramic feeds.
• Embedded Linux Foundation: No proprietary RTOS, no vendor lock-in on the OS layer. Security patches and kernel updates are available, but test them in a non-production environment first. Hanwha's release cadence is roughly quarterly for firmware updates.

Deployment Considerations:

• Drive Sizing & Retention Math: A single 10TB drive holds approximately 100–150 hours of H.265-compressed 5MP video at 15 fps (baseline assumption). With 16 drives and RAID 6, you're looking at 48TB usable, which translates to ~3–4 weeks of continuous recording on a full 32-camera deployment. If you need 60-day retention, external archival or a second NVR becomes necessary. Plan your retention policy before installation.
• Thermal Airflow Requirements: The unit dissipates 100–120W sustained (HDD-dependent). Verify site HVAC can maintain 0–40°C ambient, with 10°C headroom below the upper limit. A dusty or undersized server closet will thermally throttle the system and shorten HDD lifespan.
• Hot-Swap Drive Replacement: Hanwha PRN series supports hot-swap SATA drives in RAID mode without shutdown. However, verify firmware version — older releases had intermittent issues with bay indexing. Update to the latest firmware before relying on hot-swap in production.
• Camera Registration at Scale: Auto-discovery works flawlessly for Wisenet cameras on the same subnet. ONVIF third-party cameras often require manual IP entry or DHCP reservation to persist across reboots. Build a camera registration checklist and test failover before Go-Live.
• Remote VMS Integration: This NVR is primarily a standalone appliance. If you need centralized multi-site management or advanced VMS features (advanced rules, user RBAC, mobile push alerts), you'll layer Hanwha Wisenet VMS or a third-party platform (Milestone, Genetec) on top. Factor that software cost and licensing into your project scope.

The Hanwha PRN-3200B4-56TB is the right fit for mid-to-large deployments (25–32 cameras) where internal storage density, RAID reliability, and plug-and-play setup matter more than advanced VMS orchestration. Organizations evaluating this unit should compare it against lower-cost 16-channel NVRs paired with external NAS (TCO often breaks even after 3 years), and against enterprise VMS systems (significantly higher capex and operational overhead). For a single-building campus or regional facility needing standalone recording with forensic search capability, this is a mature, field-proven solution. Explore the Hanwha catalog for complementary Wisenet cameras and edge storage options.
