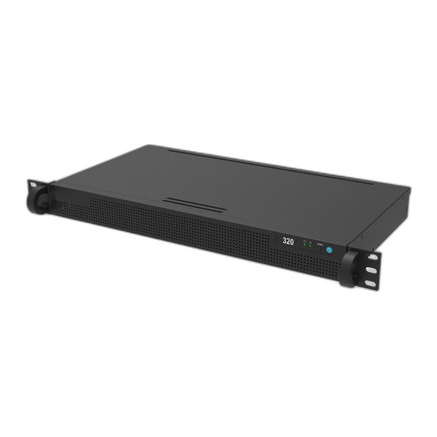

Hanwha CMVR-320 Wisenet SKY Compact Video Recorder

Hanwha CMVR-320 Wisenet SKY Compact Video Recorder

The Hanwha CMVR-320 is a purpose-built embedded Linux video recorder designed for small-to-medium IP camera deployments. This compact 1U system delivers enterprise-grade recording reliability in a flexible form factor, supporting up to 30 cameras at 1MP resolution or 25 cameras at 4MP. With integrated cloud analytics, dual gigabit connectivity, and multiple display options, the CMVR-320 provides cost-effective surveillance management without compromising performance or scalability.

Key Features

• Supports up to 30 cameras at 1MP or 25 cameras at 4MP resolution
• Cloud analytics integration for up to 10 connected streams
• Dual gigabit ethernet RJ-45 ports for redundant network connectivity
• Multiple video outputs: VGA, DVI, HDMI, and DisplayPort
• Flexible mounting: 1U rack mount or shelf/tabletop configuration
• 2 x USB 3.0 front ports for accessory and backup integration
• Embedded Linux OS for secure, streamlined operation
• Compact 1U form factor: 427mm x 251mm x 45mm

Storage & Recording Capabilities

The CMVR-320 offers configurable storage to match deployment size and retention requirements. The 4TB configuration delivers 15 days of continuous recording for 15 cameras at 1MP resolution. For larger installations, the 10TB option extends retention to 20 days for 30 cameras at 1MP. Recording retention scales with resolution and active camera count, enabling flexibility across various security requirements and compliance mandates.

Connectivity & Display Options

Dual gigabit ethernet RJ-45 ports provide redundant network connectivity for mission-critical deployments, while multiple video output options—VGA, DVI, HDMI, and DisplayPort—accommodate diverse control room environments. USB 3.0 ports on the front panel simplify backup operations and accessory integration. Power indicator and disk activity lights provide at-a-glance system status monitoring.

Technical Specifications

• Processor & OS: Embedded Linux
• Network: Dual gigabit ethernet RJ-45
• Video Outputs: 1 x VGA, 1 x DVI / 1 x VGA, 1 x HDMI, 1 x DisplayPort
• USB: 2 x USB 3.0 (front)
• Power Supply: Internal, 65W (60W variant), 100-240V AC
• Operating Environment: 0°C to 35°C, 0% to 70% RH non-condensing
• Weight: 4.06kg to 4.42kg
• Certifications: FCC, UL, PSE, CE, CCC, REACH, RoHS, C-Tick, NDAA

Applications

Ideal for retail environments, office buildings, educational facilities, and small-to-medium enterprises requiring scalable video surveillance. The CMVR-320 is well-suited for deployments where bandwidth efficiency, reliability, and flexible mounting are priorities. Cloud analytics integration enables real-time monitoring and compliance reporting across distributed locations.

James Everett

The CMVR-320 strikes a practical balance between capacity and footprint. Its support for up to 30 cameras at 1MP makes it suitable for mid-sized installations without oversizing. The embedded Linux foundation ensures minimal overhead and security vulnerabilities.

Dual gigabit ethernet ports address redundancy concerns in mission-critical environments, while flexible mounting options accommodate both server rooms and field deployments. Storage configurations with realistic retention periods (15-20 days) align with typical compliance requirements. Integration with up to 10 cloud analytics streams provides modern monitoring capabilities without requiring external infrastructure.

The inclusion of multiple video output standards ensures compatibility with legacy and contemporary control room setups. For organizations standardizing on Hanwha Wisenet platforms, this recorder delivers consistent performance and ecosystem integration.
