Geovision 125-TBL4705-000 IP Bullet Camera
Overview
The Geovision 125-TBL4705-000 is a compact IP67-rated outdoor bullet camera designed for flexible deployment across retail, warehouse, and perimeter security installations. This unit delivers continuous day/night surveillance with integrated IR and automatic switchover, maintaining visibility in low-light conditions without manual adjustment. The 4mm fixed focal length (83.7° horizontal FOV) and 1/3" sensor provide a standard wide-to-moderate viewing angle suited to general perimeter monitoring and facility entrance coverage. H.265 compression cuts bandwidth consumption roughly in half compared to H.264 — a measurable benefit when deploying across multiple cameras or recording 24/7 on limited network infrastructure. PoE (802.3af) power delivery eliminates separate power supply runs, requiring only a single Ethernet cable for both data and power.
Compatibility

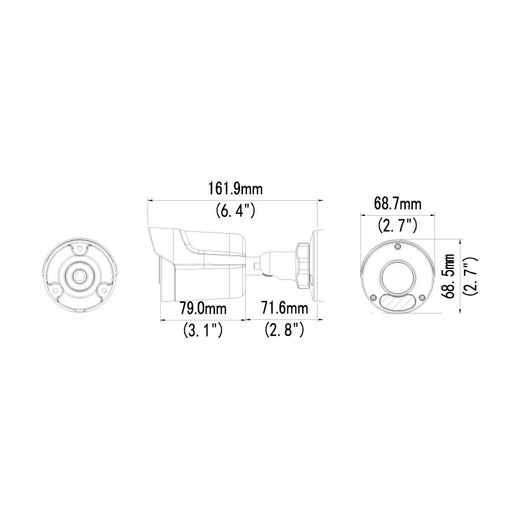

The 125-TBL4705-000 integrates with any standard IP video management system (VMS) supporting ONVIF IP camera protocols. It pairs with Geovision management software (GV-Center, GV-Recording Server, GV-Edge) and third-party platforms including Milestone, Genetec, and other enterprise recording systems. PoE power compatibility spans standard 802.3af switches and PoE injectors rated for 13W minimum draw. The camera supports standard RJ-45 Ethernet cabling (Cat 5e or better recommended for longer runs). Geovision offers multiple compatible mounting brackets: GV-Mount300-2 (convex corner mount), GV-Mount310-2 (concave corner mount), GV-Mount440 (pole mount), GV-Mount504 (wall bracket), and GV-Mount924 (power box mount for US single/double-gang electrical boxes). These mounts accommodate the camera's 3.64 lb weight and compact 5.4" × 9.17" × 6.3" form factor.
Installation Notes
IP67 rating protects against dust ingress and direct water jets from any direction — suitable for exposed eaves, loading dock canopies, and weather-exposed perimeter mounting. Do not submerge. Pole mount straps fit ø 2.6" to 5" steel pipe or conduit. Wall and corner mounts require anchors appropriate to concrete, brick, or stud mounting surfaces — verify fastener load rating against local wind and ice load codes if deployed in high-wind zones. PoE run length: standard Cat 5e cabling is rated to 100 meters; verify your switch PoE budget has headroom above 13W if daisy-chaining multiple cameras. Fixed 4mm lens cannot be refocused post-installation — verify focal distance and angle during site survey before committing to pole or corner bracket height.
