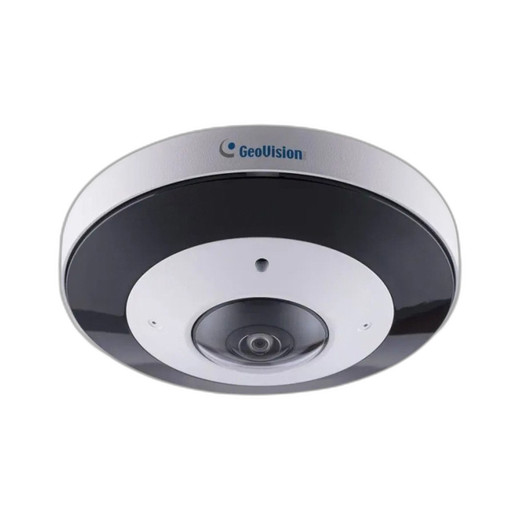

Geovision 84-FER572W-0010 5MP Fisheye IP Camera
Overview
The Geovision 84-FER572W-0010 (GV-FER5702) is a 5MP outdoor fisheye camera built for wide-angle perimeter and entrance monitoring where a single mounting point must cover all angles without pan-tilt mechanics. The 180° horizontal field of view and 1.4mm fixed focal length eliminate blind spots—useful in retail loading docks, parking structure entries, and facility corners where traditional lens coverage falls short. H.265 compression cuts bandwidth and storage overhead roughly in half versus H.264, a real benefit when recording 24/7 across distributed sites. PoE (802.3af) power means one cable handles both data and power delivery—no separate electrical run required, which simplifies retrofit installs where power conduit is unavailable.
Compatibility
The 84-FER572W-0010 integrates with any standard IP-based network video recorder or VMS that supports ONVIF Profile S or standard HTTP/RTSP streams. It operates on conventional Gigabit Ethernet infrastructure and pairs with any PoE switch or midspan injector capable of delivering 802.3af power (13W budget). Junction boxes (GV-Mount212P, GV-Mount212-1) and extension tubes (GV-Mount704 in 10, 20, 30, or 50 cm lengths) are available for flush mounting or drop-ceiling installation. Pendant bracket (GV-Mount107) enables suspended mounting. Compatible with Geovision control center platforms and ONVIF-compliant third-party management software.
Installation Notes
Mount via wall, ceiling, pendant, or junction box configurations. The compact form factor—120mm diameter × 334mm depth, weighing 0.74 kg (1.63 lb)—fits tight ceiling cavities without structural reinforcement. Standard RJ-45 cabling required; no special tools beyond a cable tester and mounting template. Verify PoE budget on your switch before deployment—this camera draws under 13W, suitable for standard 802.3af ports. For sites exceeding 100 meters cable run, use high-quality Cat5e or Cat6 to maintain voltage stability.
What's in the Box
- 1x Geovision GV-FER5702 5MP fisheye camera
- 1x GV-Mount107 pendant bracket
- 1x mounting template
- Documentation and quick-start guide
