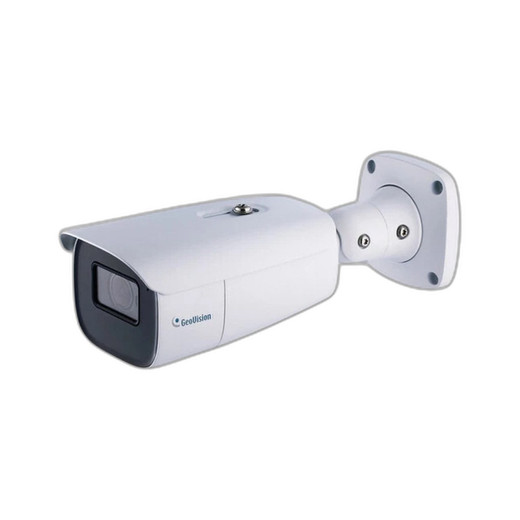

Geovision 84-BLFC58W-0010 5MP Bullet Camera
Overview
The Geovision 84-BLFC58W-0010 is a 5MP fixed-lens bullet camera designed for mixed-lighting surveillance in perimeter, retail, and facility-monitoring roles. The 4mm lens delivers moderate field of view suitable for entry points, parking areas, and loading docks where you need sharp identification-grade detail without extreme wide-angle distortion. 5MP sensor resolution captures enough pixel density to support both live monitoring and forensic review without over-committing storage on every camera in the deployment.
Key Specifications
Image Quality & Lighting: WDR (Wide Dynamic Range) processing balances exposure across high-contrast scenes—essential when a single scene contains both sun-facing glass and shadowed recesses. The camera preserves detail in both bright and dark regions simultaneously, eliminating the glare-blown or shadow-crushed footage that forces you to re-tune gain/iris manually. Full-color imaging maintains saturation across the visible spectrum, supporting color-based forensics (clothing, vehicle paint, signage) without relying on infrared fallback. If your deployment includes consistent ambient light (covered loading dock, retail floor under fluorescents), the combination of WDR and full-color output delivers reliable evidence-quality footage.
Form Factor & Mounting: Bullet housing integrates into existing wall and eave mounts with minimal visual intrusion. The compact profile simplifies cable routing through conduit and reduces wind load on pole-mount installations. Mounting is straightforward—standard wall bracket hardware; confirm your pole or surface can accept M12 or 1/4-20 fasteners depending on the bracket supplied with your deployment.
Compatibility
The 84-BLFC58W-0010 connects via standard IP networking (RJ-45) and supports ONVIF-compatible video management platforms. Confirm your VMS or NVR explicitly lists Geovision in its ONVIF Profile S compliance matrix before deployment; most modern systems support ONVIF passthrough, but older custom implementations may require firmware or plugin updates. Pair with PoE-capable network switches to eliminate separate power supplies—verify your switch has available budget for this camera's power draw.
Installation Notes
Mount in locations protected from sustained direct rain (IP rating not specified in evidence—verify with Geovision before rooftop or fully outdoor exposure). Ensure network runs include proper strain relief to prevent RJ-45 connector fatigue. If installing in high-EMI environments (near industrial motors, radio transmitters), use shielded Ethernet and ground the camera chassis to a common point.
