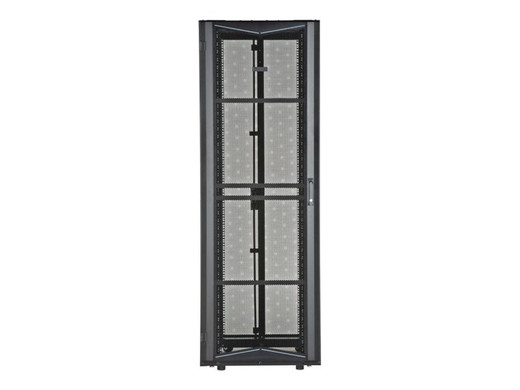

Panduit XG84221BS00NU FlexFusion™ 42RU Network Cabinet
The Panduit XG84221BS00NU is a FlexFusion™ 800mm-wide, 42RU network cabinet engineered for high-density IT infrastructure deployments in data centers, telecom spaces, and enterprise server rooms. Built with steel construction and rated for 2,250 lbs dynamic load capacity (3,000 lbs static), this cabinet combines robust structural integrity with intelligent airflow management via a top cap with brush slot sealing. The single-hinge front door and split rear door configuration delivers accessible service paths while maintaining thermal containment, and the 1200mm depth accommodates deep switches, blade servers, and cable management infrastructure without rear obstruction. EIA-310-E and IEC 60297 compliant 19" vertical rails accept standard rack-mount equipment, and UL 2416 listing confirms suitability for North American commercial installations.
Key Features
- 42RU (73.5") height supports full-rack server, networking, and storage deployments with 2,250 lb dynamic load rating
- 800mm × 1200mm (31.5" × 47.2") footprint balances aisle density with deep-equipment compatibility for blade chassis and high-port-count switches
- Top cap with brush slot seals cable entry points to prevent hot-aisle air recirculation while maintaining organized overhead pathways
- Single-hinge front door with standard locks provides quick access for routine maintenance without removing the entire door assembly
- Split rear door design enables independent left/right access for concurrent front-and-rear service on dual-power equipment
- Steel construction with black powder-coat finish delivers long-term durability in 24/7 operating environments
- EIA-310-E and IEC 60297 compliant 19" rails ensure worldwide equipment compatibility across vendors and form factors
- UL 2416 listed for use in commercial IT spaces, meeting North American fire and structural safety requirements
- 3,000 lb static load capacity accommodates fully populated UPS battery cabinets and high-density storage arrays
- FlexFusion™ platform integrates with Panduit's modular containment, PDU mounting, and intelligent infrastructure management systems
Data center operators and IT infrastructure integrators face constant pressure to increase equipment density without sacrificing thermal performance or service accessibility. The XG84221BS00NU addresses both imperatives through purposeful engineering: the 1200mm depth clears rear-mounted PDUs, vertical cable managers, and exhaust plenums that shallow cabinets cannot accommodate, while the top brush slot maintains hot-aisle/cold-aisle containment even when cables enter from overhead tray or ladder rack. The 800mm width strikes the optimal balance for row-based deployments—narrow enough to maximize floor-tile count in constrained spaces, wide enough to house dual power supplies, redundant fabric modules, and side-mounted zero-U PDUs without equipment interference. At 2,250 lbs dynamic load, this cabinet supports 30–40 1RU servers with dual power supplies, or 8–12 blade chassis, or mixed workloads combining compute, storage, and top-of-rack switching—real-world configurations that exceed most competitors' published ratings.
The split rear door configuration is a practical response to a common pain point: when you need simultaneous front-and-rear access on equipment with redundant hot-swap components (think dual-controller SANs, modular UPS systems, or chassis switches with rear fabric modules), a single full-width door forces one technician to wait or removes rear access entirely. Split doors let two engineers work concurrently, and the independent swing means you can open just the section you need without exposing the entire rear plane to airflow disruption. The single-hinge front door, meanwhile, eliminates the center post found on double-door designs—no more wrestling wide servers past a vertical obstruction during installation. Standard keyed locks on both front and rear provide basic physical security for open-floor environments; for higher-security requirements, the cabinet accepts Panduit electronic lock and access-logging accessories.
Thermal management in high-density IT spaces depends on containment integrity, and the top cap with brush slot is the critical seal point that many cabinets overlook. Blanking panels handle unused RU positions, and perforated doors manage front-to-back flow, but if the top is open or uses a simple cable pass-through, hot exhaust air short-cycles back into the cold aisle, collapsing your temperature delta and forcing CRAC units to overcool. The brush slot allows cables to enter from overhead—fiber trunks, copper bundles, power whips—while the brushes form a physical barrier against air backflow. This keeps your supply air cold and your return air hot, which is exactly what economizer cooling and variable-speed CRAC controls need to achieve PUE targets below 1.3.
The 3,000 lb static load rating isn't marketing fluff—it reflects welded steel frame construction with reinforced corner posts and a continuous base frame that distributes weight to the floor without requiring seismic-anchor kits for typical installations (though seismic zones and local codes may still require anchoring). You can stack battery modules floor-to-top, mount heavy UPS electronics mid-rack, and still have structural headroom for patch panels and switches above. The cabinet ships with EIA-310-E square-hole vertical rails installed; these accept cage nuts, toolless clips, or threaded hardware depending on your equipment and change-velocity preferences. Rail-to-rail spacing is IEC 60297 compliant at 450mm, so European and Asian-manufactured equipment mounts without adapter brackets.
FlexFusion™ is Panduit's ecosystem approach to intelligent infrastructure: the cabinet serves as the mechanical platform, but it integrates with modular containment panels (for row-based hot-aisle or cold-aisle enclosures), environmental sensors (temp/humidity monitoring at top, middle, and bottom of rack), intelligent PDUs with per-outlet switching and kWh metering, and structured cabling pathways (vertical managers, horizontal troughs, overhead cable runway). If you're building a greenfield data center or modernizing a legacy server room with containment and DCIM, this cabinet is the foundation that accepts those components without custom fabrication. If you're just racking switches and servers with basic power strips, the cabinet doesn't force you to buy into the ecosystem—it's a solid enclosure that does the fundamental job without upselling.
Installation and ongoing operations benefit from thoughtful details: the split rear door has a cable pass-through notch at the hinge line so you don't have to drill the door when running power or fiber between adjacent cabinets in a row. The front door is reversible (hinge-left or hinge-right) to match your aisle access pattern. Leveling feet adjust ±0.5" to compensate for uneven floors without shimming, and casters are available as an accessory for pre-staging and placement before final leveling. The black powder-coat finish resists scratches during equipment installs and hides the minor dings that accumulate over years of moves, adds, and changes.
Compliance with EIA-310-E, IEC 60297, and UL 2416 ensures this cabinet works in North American enterprise and colocation facilities, and the IEC spec confirms compatibility with international equipment if you're deploying global-standard builds across multiple regions. UL 2416 specifically addresses IT equipment enclosures and includes structural testing, grounding continuity, and flammability requirements—critical for insurance, AHJ approval, and corporate risk management.
The XG84221BS00NU is the choice when your infrastructure roadmap calls for real density, real serviceability, and real thermal control—not the lightweight sheet-metal cabinets that sag under load or the all-in-one "solutions" that lock you into a single vendor's cable management and power distribution. You get Panduit's data-center-grade construction, the FlexFusion integration path if you need it, and a platform that will outlast multiple generations of the IT equipment it houses.
