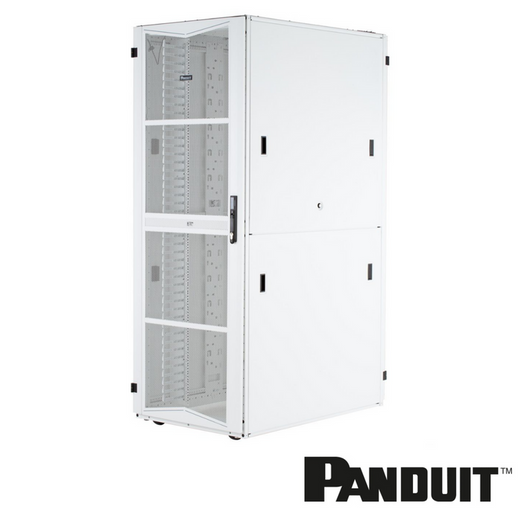

Panduit XG84222BS00M5 FlexFusion 42RU Network Cabinet

The Panduit XG84222BS00M5 FlexFusion network cabinet delivers 42RU of vertical mounting space in an 800mm-wide, 1200mm-deep steel enclosure engineered for high-density server and networking installations. Built to UL 2416, EIA-310-E, and IEC 60297 standards, this cabinet supports up to 3,000 lbs static load and 2,250 lbs dynamic load—sufficient for fully populated configurations with blade servers, UPS modules, and switching infrastructure. The black powder-coated finish, brush-sealed top cap, single front hinged door, split rear doors, and locking side panels provide secure access control and integrated cable management for mission-critical data center and telecommunications environments.

Key Features

• 42RU Vertical Capacity: Full-height EIA-310-E compliant 19" rail mounting accommodates servers, switches, patch panels, and power distribution units across 73.5 inches of usable space.
• 3,000 lb Static / 2,250 lb Dynamic Load Rating: Heavy-gauge steel frame and reinforced mounting rails support dense compute, storage, and network gear without deflection or rail sag.
• 800mm × 1200mm Footprint: Standard datacenter dimensions fit raised-floor tile grids and cold-aisle configurations; 47.2" depth leaves room for rear cable management and AC exhaust.
• Brush-Sealed Top Cap: Factory-installed top with brush grommet pass-throughs prevents hot-aisle air recirculation while routing overhead cable trays and fiber bundles.
• Single Front Hinged Door + Split Rear Doors: Front door swings left or right for full-width access; independent rear doors allow technicians to service one side of the cabinet without exposing the opposite rail.
• Locking Side Panels (Left & Right): Removable steel side panels with keyed locks restrict access to internal cabling and equipment; tool-free removal speeds MACs and audits.
• UL 2416, EIA-310-E, IEC 60297 Compliant: Third-party safety and mechanical standards certification ensures compatibility with enterprise procurement specs and insurance underwriting requirements.
• Black Powder-Coated Steel Construction: Corrosion-resistant finish withstands humidity, dust, and thermal cycling in 24/7 data center and telecom CO environments.

Commercial integrators deploying hyperconverged clusters, SAN arrays, or carrier-grade routing gear face three recurring pain points: insufficient vertical space for future expansion, inadequate load capacity for dense 1U/2U configurations, and poor airflow management that forces over-provisioned cooling. The XG84222BS00M5 addresses each. Its 42RU height matches full-height industry racks, eliminating the "we ran out of RU" scenario during refresh cycles. The 3,000 lb static rating and 2,250 lb dynamic rating (with seismic bracing) handle fully loaded blade enclosures—Cisco UCS, Dell PowerEdge MX, or HPE Synergy—without the rail twist or screw-hole elongation common in undersized cabinets. The brush-sealed top cap and optional blanking panels (sold separately) enforce front-to-back airflow separation, reducing CRAC unit runtime and cutting PUE when combined with hot-aisle containment.

The 800mm width (31.5 inches) is the global standard for networking and telecom equipment; wider than the older 600mm telco racks but narrower than broadcast or industrial 23" frames. The 1200mm depth (47.2 inches) provides 36–38 inches of internal space between the front rail and rear rail, leaving 4–6 inches at the back for vertical cable managers, fiber splice trays, and power strips. Rear split doors open independently—critical during live MACs where a single tech needs access to one side of a modular switch stack or storage controller without shutting down the adjacent rail. The single front hinged door includes a perforated mesh insert (60–70% open area) for intake airflow; hinge orientation is field-reversible to match your cold-aisle approach. Locking side panels use a common key (included, typically Panduit P/N matching your site's cabinet family) and lift off after releasing top and bottom latches—no screwdriver, no lost hardware.

The FlexFusion sub-brand indicates Panduit's modular accessory ecosystem: zero-U vertical cable managers, horizontal brush-entry panels, adjustable depth shelves, grounding kits, and seismic anchor brackets all mount via captive cage nuts or toolless clips. If you're running 10GBase-T copper or 25G/100G DAC to each server, the vertical managers handle up to 200 patch cords per side without pinch radius violations. If you're running MPO-12 or MPO-24 fiber trunks, the rear split-door design lets you route breakout cassettes and cross-connects without snaking cables through hinge gaps. Factory rack-and-stack services (available through Panduit or your integrator) can pre-install rails, PDUs, and KVM at Panduit's facility, then freight the populated cabinet to your dock—reducing on-site labor by 40–60% compared to field assembly.

Load ratings deserve a closer look. "Static" means the cabinet is bolted to a concrete slab or raised-floor stringers and the equipment is powered off; "dynamic" means equipment is energized and you're rolling the cabinet on casters (if equipped) or the floor is vibrating (seismic or mechanical). 3,000 lbs static is roughly 14× 200 lb blade enclosures or 21× 140 lb 2U servers—well beyond typical deployments but critical for edge micro-datacenter builds where a single cabinet houses compute, storage, network, and UPS. The 2,250 lb dynamic rating covers real-world reconfigurations: you can roll a fully populated cabinet (with optional Panduit HD casters, sold separately) across a raised floor to a new tile position during a hot-aisle realignment without offloading gear or risking frame damage. Compare that to commodity 1,500 lb static / 1,000 lb dynamic cabinets, which require partial decommission and a lift team for any move.

UL 2416 certification is the US/Canada safety standard for information technology equipment racks; it covers tip-over resistance, grounding continuity, sharp-edge mitigation, and flammability. EIA-310-E defines the hole-spacing and thread spec for 19" racks (square holes, tapped holes, or cage nuts; this cabinet uses square holes with included cage nuts). IEC 60297 is the global equivalent, ensuring compatibility with European, Asian, and APAC gear. If your procurement team requires third-party certification for insurance or tenant build-out, the XG84222BS00M5's compliance documentation (available via Panduit's online portal) satisfies underwriters and AHJs without custom testing.

Integration with existing Panduit infrastructure products is seamless. If you're already using Panduit copper or fiber systems—PanZone horizontal managers, PanView LCD console drawers, or SmartZone G5 switched PDUs—the XG84222BS00M5 shares the same mounting pitch and accessory interface. Grounding is via a factory-installed stud on the frame (typically 10-32 or M6) plus bonding jumpers to each door and panel; run a #6 AWG green wire to your data center's equipotential bonding grid per J-STD-607-B. Seismic bracing (required in California, Oregon, Washington, Alaska, and parts of Nevada, Utah, and Montana per IBC seismic design categories D, E, F) uses Panduit's zone-4-rated anchor kit (sold separately); the cabinet frame includes pre-drilled holes at the base and mid-height for front-to-back and side-to-side bracing without field drilling.

The XG84222BS00M5 ships fully assembled (no field assembly of frame or doors) on a pallet with protective corner guards and shrink wrap. Freight class is 125; expect LTL delivery with liftgate service if your loading dock lacks a forklift. Lead time varies by region—typically 2–4 weeks for black, longer for custom colors or seismic-rated variants. Panduit's FlexFusion cabinets are manufactured in North America (Mexico and US plants) and meet Trade Agreements Act (TAA) requirements for federal and defense installations. For projects requiring NDAA Section 889 compliance (no Chinese-manufactured enclosures), the XG84222BS00M5 qualifies as a compliant alternative to offshore brands. If you're building out a SCIF, a DoD edge site, or a federal data center, this cabinet's country-of-origin and bill-of-materials documentation supports your DFARS and FAR clauses without waiver requests.

Designed for commercial integrators and enterprise IT teams deploying scalable, standards-compliant infrastructure, the Panduit XG84222BS00M5 FlexFusion network cabinet combines proven mechanical engineering, third-party safety certification, and a comprehensive accessory ecosystem to support high-density server, storage, and network installations in mission-critical data centers and telecommunications spaces.
