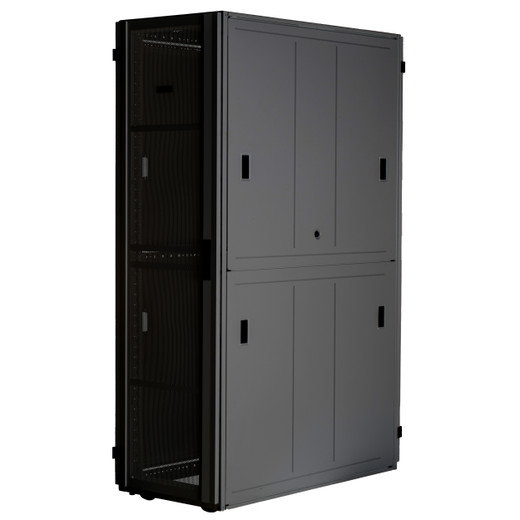

Panduit FlexFusion XG84222BS018X 42RU Network Cabinet with Brush Seal Top Cap
The Panduit XG84222BS018X delivers enterprise-grade equipment housing for high-density datacenter and server room deployments. This 42RU FlexFusion cabinet combines 800mm width, 1200mm depth, and a brush seal top cap to optimize airflow management while supporting up to 3,000 pounds of rack-mounted infrastructure. Built for integrators managing surveillance NVRs, network core switches, PoE distribution, and UPS systems, it meets EIA-310-E and IEC 60297 mounting standards with UL 2416 safety certification. The extended depth accommodates deep servers and switch chassis while the top brush seal prevents hot air recirculation in rows with overhead cable routing.
Key Features
- 42RU vertical mounting space fits full-height switch stacks, UPS arrays, and storage systems
- 800mm x 1200mm footprint (31.5" x 47.2") provides clearance for deep enterprise switches and cable managers
- Brush seal top cap blocks hot exhaust recirculation in hot-aisle/cold-aisle configurations
- 3,000 lb static load capacity supports dense NVR builds with multiple drives and redundant power supplies
- EIA-310-E compliant mounting rails accept standard 19" rack equipment without adapters
- Steel construction with black finish resists corrosion in climate-controlled environments
- UL 2416 listed for US commercial installations requiring AHJ approval
- FlexFusion modular platform allows field installation of doors, side panels, and cable management accessories
Datacenter thermal management depends on controlling airflow at every cabinet. The XG84222BS018X's brush seal top cap sits flush with the cabinet frame, using dense nylon bristles to close the gap around overhead cable bundles. This prevents heated exhaust air from the equipment below from looping back into the cold aisle intake — a common problem when cable trays or ladder racks create an open path above the cabinet. In raised-floor environments with underfloor cold air delivery, the seal maintains positive pressure inside the cabinet and reduces bypass airflow that wastes cooling capacity. For integrators running network uplinks, fiber trunks, or power whips through the top opening, the flexible bristles conform around cables without requiring custom cutouts or rigid brush panels that leave gaps. Unlike blank top panels that force you to punch holes or snap-out sections, the brush seal adapts to evolving cable counts as you add circuits during phased deployments.
The 1200mm depth (47.2 inches) is sized for the deepest network switches, blade servers, and storage arrays without requiring the equipment to overhang the rear rails. Many enterprise-class PoE switches exceed 600mm depth when you account for rear cable bend radius and airflow clearance — the extended cabinet depth gives you room to mount equipment at the manufacturer's recommended setback while still closing the rear door. This also simplifies cable management: you can route horizontal managers behind the equipment plane and use vertical managers at the rear uprights without fighting for space. The 800mm width (31.5 inches) provides the standard 19-inch equipment mounting width with generous side clearance for vertical PDU mounting and side-entry cable access. Shallow 600mm cabinets force compromises — rear-facing ports end up inaccessible, or you sacrifice the rear door to gain clearance. The XG84222BS018X eliminates that tradeoff.
Load capacity matters when you're stacking surveillance NVRs with eight 10TB drives, redundant power supplies, and UPS battery modules in the same cabinet. The XG84222BS018X is rated for 3,000 pounds static load (equipment weight while stationary) and 2,250 pounds dynamic load (weight during transport or seismic movement). That's enough headroom to mount a 12-bay storage chassis at the bottom, a 48-port PoE++ switch stack in the middle, and redundant UPS modules at the top without approaching the structural limit. The steel frame distributes the load across four leveling feet, and the cabinet ships with floor anchors for seismic zones or raised-floor installations where lateral bracing is required. For integrators working in mission-critical facilities with strict weight-per-tile limits on raised floors, the cabinet's tare weight and published load rating simplify the structural coordination with the facility's engineer of record. You can hand the spec sheet to the structural engineer and get sign-off without custom load testing.
Field serviceability starts with access. The FlexFusion frame design uses reversible doors and removable side panels, so you can configure front or rear access based on the row layout. If you're mounting the cabinet against a wall in a network closet, you can omit the rear door and side panels entirely to save cost and reduce the footprint. The vertical mounting rails adjust front-to-back on a track, letting you shift equipment toward the cold aisle for better intake airflow or toward the hot aisle to reclaim space for rear cable management. The cabinet frame ships partially assembled — the roof, floor, and uprights bolt together on-site in under 30 minutes with basic hand tools. This reduces the shipping cube and lets you bring the cabinet through standard 36-inch doorways without tilting or removing door frames. For integrators working in occupied buildings where elevator size and hallway width constrain deliveries, the knock-down frame is the difference between a smooth installation and a crane-and-window delivery.
The FlexFusion platform is Panduit's modular cabinet family, meaning the XG84222BS018X frame accepts a range of field-installable accessories: solid or perforated doors (front and rear), removable side panels, fixed or sliding rail kits, horizontal and vertical cable managers, blanking panels, and fan tray modules. This lets you ship the base cabinet to the site, then configure it per the final equipment list once the network design is locked. If you're bidding a project with uncertain NVR counts or switch port density, you can commit to the cabinet frame and defer the door and accessory selection until the owner approves the final BOM. The modular approach also simplifies staged commissioning: install the cabinet and patch panels during rough-in, add the servers and switches during the AV/IT phase, then install the locking front door and side panels at substantial completion when the space is secure. You're not paying for a fully-loaded cabinet on day one when half the accessories sit in storage for six months.
EIA-310-E and IEC 60297 compliance means the vertical mounting rails use the standard 19-inch hole pattern with square or round mounting holes (depending on the rail variant you specify). Any EIA-compliant switch, server, patch panel, or shelf mounts without adapters or custom brackets. The rails are adjustable front-to-back in the cabinet to accommodate varying equipment depths, and the square hole pattern accepts cage nuts or toolless clip nuts for rapid mounting. UL 2416 listing covers the cabinet structure, load rating, grounding continuity, and flammability — critical for installations in hospitals, schools, or government facilities where the AHJ requires listed enclosures. The cabinet ships with a grounding lug bonded to the frame, and the paint is conductive at mounting points to maintain a low-impedance ground path to rack-mounted equipment. During inspections, you can point to the UL label and the published test report to satisfy code officials without engineering letters or field testing.
For surveillance network operations centers, this cabinet handles the full stack: enterprise-class NVRs at the bottom (where weight and depth concentrate), a core PoE switch stack in the middle (where you need front and rear access for fiber uplinks and copper distribution), and UPS or battery modules at the top (where DC bus bars and AC input feeds route through the top opening). The brush seal top cap keeps the thermal boundary intact even when you're running 50+ cables overhead to adjacent cabinets or overhead cable trays. In campus MDF applications, the 1200mm depth accommodates core layer switches with front-to-back airflow, fiber patch panels at the rear, and horizontal cable managers without forcing the door to stay open. For colocation providers renting cabinet space to multiple tenants, the modular door and panel options let you configure individual cabinets with locking fronts and solid sides for security while leaving service cabinets open for rapid access.
The XG84222BS018X solves the integrator's core problem: deploying dense, mixed-vendor equipment in a single enclosure without thermal failures, structural overload, or AHJ compliance delays. The brush seal top cap is not a luxury — it's the difference between stable inlet temps and a cabinet that runs 15°F hotter than design because you're recirculating exhaust. The 1200mm depth is not overbuilt — it's the minimum clearance for real enterprise switches once you account for cable bend radius and rear airflow. The 3,000 lb load rating is not a marketing number — it's the capacity you need when a 42U cabinet is fully populated with storage, power, and network gear that each weigh 80-120 pounds per RU. This is the cabinet you specify when the project can't tolerate a do-over.
