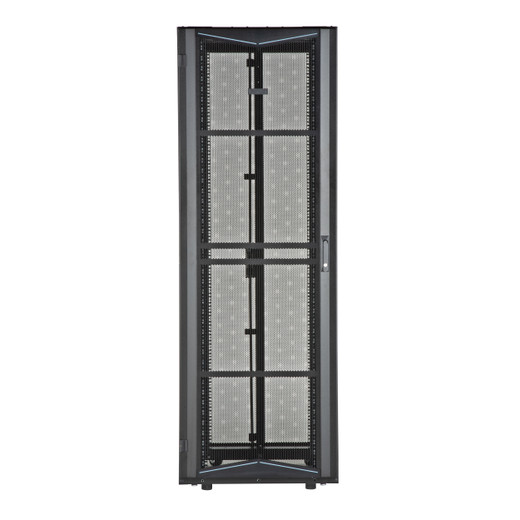

Panduit XG64222BS0001 FlexFusion 42RU Server Cabinet
The Panduit XG64222BS0001 FlexFusion cabinet delivers 42RU of EIA-310-E compliant rack space in a 600mm-wide by 1200mm-deep footprint, built for datacenter-grade deployments where surveillance NVR arrays, access control head-ends, and network core infrastructure demand both density and thermal performance. Powder-coated steel construction combines structural rigidity with corrosion resistance, while front and rear perforated doors maintain sub-35°C internal temperatures under continuous load. Shipped with hardware mount rails, integrated left PDU bracket, removable side panels, and four heavy-duty casters for in-row positioning before final leveling.
Key Features
- 42RU vertical capacity supports 60+ 1RU devices or mixed NVR/switch/server configurations in a single enclosure
- 600mm × 1200mm × 1999mm (W×D×H) dimensions fit standard datacenter hot-aisle/cold-aisle layouts with 600mm tile spacing
- Perforated front door (single-hinge) and split rear doors deliver 65% open area for front-to-back airflow without forced-air plenum requirements
- Included hardware mount rails accept square-hole, round-hole, and threaded mounting hardware across EIA-310-E, IEC 60297, and DIN 41494 equipment standards
- Left-side PDU mounting bracket pre-installed for vertical power strips; eliminates U-space sacrifice and cable-reach problems common with rear-mount PDU installations
- Powder-coated black steel resists fingerprints, scratches, and oxidation across 10+ year service life in 24/7 operations
- Split rear door design allows single-technician servicing of rear-facing ports and cabling without full door removal or aisle clearance
- Standard keyed locks on front/rear doors plus removable side panels satisfy PCI-DSS physical security audit requirements for card-processing infrastructure
- Four industrial casters enable two-person cabinet positioning during build-out; leveling feet deploy through caster mounts for seismic-zone anchoring
- Top cap with integrated brush seal prevents dust ingress and cable pass-through without compromising positive-pressure cooling
- EIA-310-E, TIA/EIA-942, UL2416, and RoHS compliance meets federal datacenter construction standards and California e-waste regulations
The XG64222BS0001's 1200mm depth accommodates deep-chassis NVRs (RAID expansion models routinely exceed 700mm), enterprise switches with rear cable-management arms, and UPS units with extended battery trays—all with 150mm+ front clearance remaining for patch panels. Hardware mount rails ship with the cabinet and install tool-free into square perforations on 0.5U increments; rails accept cage nuts for threaded equipment or clip-in universal brackets for square-hole mounting. The left PDU bracket positions 30A or 60A vertical power strips inside the left interior edge, preserving all 42U for equipment while keeping C13/C19 outlets within 200mm of every device—short enough for the included 1m power cords that ship with most enterprise gear. Perforated doors use 6mm hex-pattern perforations across 65% of door area; this maintains sub-30°C internal temperatures when populated with mixed-load devices (NVRs, PoE switches, SAN arrays) drawing up to 4kW combined, assuming 21°C supply air from underfloor or overhead CRAC units. Split rear door hinges open independently left and right, so a tech can access SFP+ ports or rear RJ45 jacks on left-side switches without swinging a full door into the adjacent cabinet row—critical in deployments where aisle width is constrained to the 1200mm TIA-942 minimum.
Security operations centers deploying 40+ camera NVRs across multiple recording tiers use the XG64222BS0001 to co-locate primary recording (top 20U), RAID expansion shelves (middle 12U), and network aggregation switches (bottom 10U) in a single locked enclosure—eliminating the unsecured rack sprawl that causes audit failures during SOC2 or HIPAA reviews. Datacenter builds installing this cabinet in hot-aisle/cold-aisle configurations benefit from the 600mm width, which aligns to raised-floor tile boundaries and simplifies containment-curtain installation; the 1200mm depth leaves 100mm rear clearance when installed against standard 1300mm-deep containment doors, enough space for technician access without breaking containment seals. The included casters support cabinet repositioning during the build-out phase—roll it into position, load equipment to 70% capacity, then deploy leveling feet and anchor to floor rails or seismic brackets before final dense population. Top cap brush seals prevent cable-bundle air leaks when dozens of Cat6a runs pass from overhead ladder rack into the cabinet; maintaining sealed top/bottom planes is essential when chilled air is expensive and PUE targets are below 1.4. Removable side panels allow horizontal cable pass-throughs for in-row fiber trunks or equipment-to-equipment stacking cables without routing everything through congested top/bottom openings. Standard keyed locks on all access points satisfy the "enclosed and locked" physical control requirement that appears in PCI-DSS 3.2.1 section 9.1.2, NIST 800-53 PE-3, and equivalent frameworks—auditors specifically check for keyed locks on cabinets housing payment processors, authentication servers, or cardholder-data storage.
Compliance with EIA-310-E ensures universal compatibility with 19-inch rack equipment from any manufacturer, while TIA/EIA-942 adherence confirms the cabinet meets Tier II, III, and IV datacenter construction standards for structural load, grounding, and seismic resilience. UL2416 certification covers the cabinet's electrical safety under load—specifically the grounding-path continuity from equipment chassis through mounting rails to cabinet frame to facility ground—eliminating the floating-ground hazards that cause intermittent network errors or NVR lockups in improperly bonded installations. RoHS compliance satisfies California, EU, and federal e-waste regulations, which matter for GSA contracts, university projects, and any deployment where end-of-life disposal cost is procurement-reviewed. The FlexFusion line is engineered specifically for mixed IT/physical-security deployments where surveillance infrastructure shares rack space with access control panels, VMS servers, and PoE switch stacks—use this cabinet when your project spec calls for a single-vendor enclosure solution that handles 10kW thermal loads, satisfies SSAE-18 audit lockdown requirements, and ships with every bracket and rail needed to go from delivery dock to operational in a single eight-hour shift.
