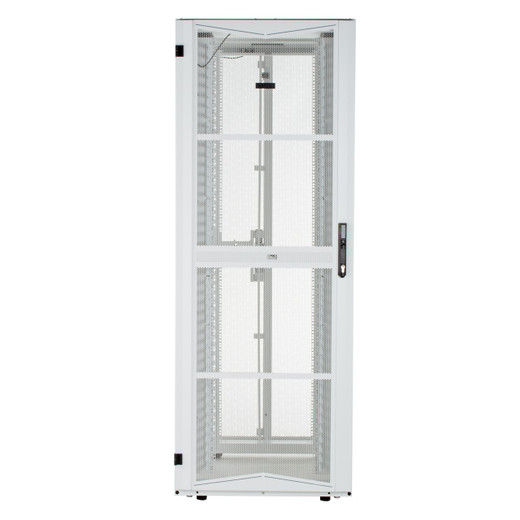

Panduit XG84222WS0001 FlexFusion 42RU Server Cabinet
The Panduit XG84222WS0001 FlexFusion cabinet addresses the core challenge of deploying high-density compute, storage, or surveillance NVR clusters in colocation and enterprise data centers: managing airflow, maintaining TIA-942 compliance, and adapting PDU placement to match your power distribution strategy. This 42RU, 800 × 1200 mm cabinet combines perforated front and split rear doors for optimized cooling, a deeper-than-standard 1200 mm depth for modern servers and cable management, and FlexFusion's modular accessory system for field-configurable power and cable entry. White powder-coated steel construction meets durability and aesthetic requirements for healthcare, education, and corporate IT environments.
Key Features
- 42RU Capacity: Full-height rack holds up to 42U of EIA-310-E compliant servers, switches, storage, or NVR equipment
- 800 × 1200 mm Footprint: 1200 mm depth (47.2") provides clearance for deeper servers, cable management arms, and rear vertical PDUs without door interference
- Perforated Front Door: Single-hinged perforated door maximizes airflow intake for high-thermal-load equipment
- Split Rear Doors: Independently hinged perforated rear doors allow granular access during maintenance without full door swing—critical for tight aisle spacing
- White Powder-Coat Finish: Durable, chip-resistant finish meets aesthetic and cleanliness standards for healthcare, education, and executive-grade IT spaces
- Left PDU Bracket: Included left-side PDU mounting bracket supports vertical power distribution without consuming rear U-space
- Brush Grommet Top Cover: Top panel with brush seal manages cable entry from overhead ladder rack or cable tray while maintaining airflow separation
- Removable Side Panels: Tool-removable left and right side panels provide access for horizontal cable routing and future upgrades
- Included Casters: Four casters enable mobility during staging and installation; lock down for permanent deployment
- Standard Locks: Front door and rear door locks secure equipment in multi-tenant colocation or shared facility environments
- EIA-310-E Rail Mounting: Includes rail hardware for standard 19" equipment mounting with square or round mounting holes
- TIA/EIA-942 Compliant: Meets Telecommunications Industry Association data center infrastructure standards for thermal management and equipment layout
- UL2416 Listed: UL safety listing for enclosed IT equipment racks ensures fire safety and electrical isolation
- RoHS Compliant: Restriction of Hazardous Substances compliance for EU and global procurement requirements
The 1200 mm depth is the critical differentiator for modern server deployments. Standard 1000 mm cabinets force compromises: either your cable management arms don't fully extend, your rear vertical PDUs interfere with door swing, or you can't leave sufficient clearance for hot-aisle exhaust. The XG84222WS0001's extra 200 mm (7.9") eliminates those trade-offs. You can mount a 750 mm deep server, add a cable management arm, run vertical power in the rear, and still maintain 100+ mm of clearance between equipment and the rear door—essential for high-CFM exhaust in ASHRAE thermal guideline compliance. The perforated rear doors' split design means you open only the section you need during maintenance, reducing the door swing radius from 800 mm to 400 mm. In hot-aisle containment or tight colocation cages, that cut-in-half swing clearance is the difference between accessible and inaccessible equipment.
The white powder-coat finish serves a functional purpose beyond aesthetics. In healthcare data centers, hospital IT rooms, and education environments, white cabinets signal cleanliness and align with facility design standards—critical for executive-visible server rooms or HIPAA-compliant facilities where IT infrastructure is co-located with clinical or administrative spaces. The powder coating itself provides superior chip and scratch resistance compared to painted finishes, maintaining appearance through years of equipment installs, moves, and changes. The included left PDU bracket mounts vertical power distribution units (typically 20A or 30A monitored PDUs) along the left interior, leaving the rear U-space free for equipment exhaust and the right side clear for network cabling. This left-side PDU strategy is standard in colocation facilities and enterprise data centers that separate power (left) from data (right) to minimize electromagnetic interference and simplify cable audits. The brush grommet top cover handles cable entry from overhead ladder rack or cable tray without requiring you to cut or modify the top panel—cables thread through the brushes, which then close around them to maintain hot-aisle/cold-aisle separation in contained environments.
Deploy this cabinet in colocation facilities requiring TIA-942 compliance for tiered data center design, enterprise server rooms consolidating compute and storage, or security operations centers (SOCs) housing high-density NVR clusters for large camera deployments. The 42RU capacity supports mixed equipment loads: 10-12 2U servers, 4-6 4U storage arrays, 2-4 1U switches, and remaining U-space for cable management and airflow blanking panels. For surveillance integrators, a single XG84222WS0001 can house four 4U enterprise NVRs (each supporting 256+ cameras), two top-of-rack switches for camera network segmentation, redundant UPS units, and vertical PDUs—an entire site's recording infrastructure in one cabinet. The included casters are load-rated for safe transport during the staging phase; once positioned, you lock the casters and level the cabinet with adjustable feet (if your facility requires seismic bracing, the cabinet's frame supports bolt-down to raised floor or slab). Standard locks on front and rear doors meet multi-tenant colocation security requirements where multiple customers' equipment shares a cage or suite.
EIA-310-E compliance ensures universal compatibility with 19" rack-mount equipment from any manufacturer—servers, switches, patch panels, PDUs, KVM drawers, and blanking panels all mount to the included rail hardware without adapters or field modifications. TIA/EIA-942 data center infrastructure compliance means the cabinet's perforation ratio, door swing clearance, and cable entry design align with the standard's thermal management and maintainability requirements for Tier I through Tier III data centers. UL2416 listing covers fire safety (the cabinet contains electrical equipment without creating a fire propagation path), structural integrity (the frame supports rated equipment loads without collapse), and electrical isolation (the steel construction provides proper grounding paths). RoHS compliance is non-negotiable for federal, state, and EU procurement contracts that require restriction of lead, mercury, cadmium, and other hazardous substances. The FlexFusion line's modular design philosophy extends beyond this base cabinet configuration: you can field-add side-panel cable trays, overhead cable managers, front-to-rear airflow ducting, or rear vertical cable channels without replacing the cabinet—critical for environments where initial deployment is phase one and expansion is inevitable. For integrators deploying mixed IT and security infrastructure, the XG84222WS0001 provides the thermal capacity for high-wattage NVRs and servers, the depth for modern equipment and cable management, and the compliance foundation for data center, healthcare, and federal installations.
