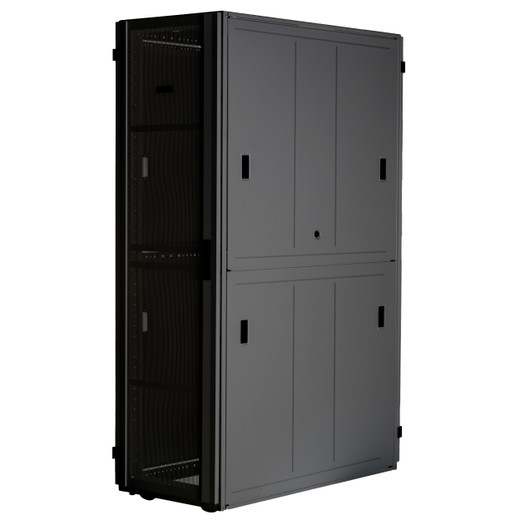

Panduit XG84212BS0113 FlexFusion 42RU Network Cabinet
The Panduit XG84212BS0113 delivers a 42RU, 800mm-wide network cabinet engineered for high-density datacenter deployments where load capacity, thermal management, and standards compliance are non-negotiable. Rated for 3,000 lbs static load and 2,250 lbs dynamic capacity, this FlexFusion cabinet handles blade servers, UPS systems, and storage arrays without structural compromise. The CoolBoot Ready top cap integrates into airflow containment strategies, while the single-hinge front door simplifies access in tight rows. Built to EIA-310-E, IEC 60297, and UL 2416 standards, the XG84212BS0113 is the structural backbone for mission-critical infrastructure.
Key Features
- 3,000 lb Static Load Capacity: Steel construction supports full-depth blade enclosures, battery cabinets, and storage arrays without floor reinforcement concerns in most facilities.
- CoolBoot Ready Top Cap: Factory-configured for hot aisle/cold aisle containment integration — no field modifications required for airflow optimization.
- 800mm x 1070mm Footprint: Industry-standard width accommodates universal 19" equipment; 42.1" depth supports full-depth servers and cable management arms without overhang.
- Single Hinge Front Door: Full-swing door (no center post) maximizes equipment visibility during maintenance and simplifies cable routing in dense aisles.
- EIA-310-E & IEC 60297 Compliant: Universal rail spacing and mounting hole patterns ensure compatibility with rack-mount PDUs, KVMs, switches, and patch panels from any manufacturer.
- UL 2416 Listed: Third-party safety certification for electrical bonding, grounding, and structural integrity — meets insurance and building code requirements for commercial installations.
Load Engineering for High-Density Environments: The 3,000 lb static load rating assumes uniform weight distribution across the 42RU height, making this cabinet suitable for mixed workloads: compute at the top (lower power density), storage in the middle (heavy but low-wattage), and UPS or battery backup at the bottom (maximum weight, minimum vibration impact). The dynamic load rating of 2,250 lbs accounts for seismic activity, pallet jack impacts during staging, and vibration from adjacent equipment — critical in colocation facilities where you don't control neighboring racks. Steel vertical rails and welded frame construction eliminate flex under asymmetric loads (e.g., fully populated front rails with empty rear rails), a common failure mode in sheet-metal cabinets. For installations requiring seismic bracing, the cabinet's mounting footprint and integrated anchor points align with NEBS GR-63-CORE and California CBC Chapter 16 requirements when paired with Panduit's optional floor anchor kits.
Thermal Management & Containment Integration: The CoolBoot Ready top cap features knockout panels pre-cut to industry-standard containment curtain dimensions, allowing direct integration with Polargy, Geist, Vertiv, or custom-built hot aisle/cold aisle containment systems. This eliminates field cutting (which voids structural warranties) and ensures clean, professional installations. The top cap design channels return air upward without creating dead zones at the cabinet crown — a frequent cause of temperature stratification in under-provisioned cooling environments. In open-floor deployments without containment, the solid top cap reduces bypass airflow (conditioned air escaping over the cabinet instead of through equipment intake), improving PUE by 5-10% in typical raised-floor datacenters. Front-to-back airflow alignment is enforced by the cabinet depth: 1070mm provides sufficient clearance for cable management arms on deep servers (Dell PowerEdge R750, HPE ProLiant DL380 Gen11) while maintaining rear door clearance for exhaust plenums or chimney ducts.
Standards Compliance & Universal Compatibility: EIA-310-E compliance guarantees 0.625" vertical hole spacing on mounting rails — the global standard since 1992. This matters when you're installing third-party rack PDUs (APC, Server Technology, Raritan) that assume EIA spacing for C13/C19 outlet positioning. IEC 60297 compliance covers horizontal rail-to-rail spacing (465mm between vertical rails for 19" equipment), critical for European or international equipment that may not conform to older EIA-310-D tolerances. UL 2416 listing certifies that grounding lugs, bonding straps, and paint-free grounding surfaces meet NEC Article 250 requirements for fault current paths — a hard requirement for inspections in financial, healthcare, and government facilities. The cabinet ships with a grounding stud bonded directly to the frame, eliminating the need for field-drilled grounding points that compromise structural integrity.
Deployment Context & Use Cases: This cabinet is sized for enterprise server rooms (not hyperscale, not edge closets). The 800mm width is the sweet spot for facilities with 36"–42" aisle widths: narrow enough to maximize floor space utilization, wide enough to accommodate side-mount PDUs and vertical cable managers without impeding front equipment access. The single-hinge door is optimized for installations where cabinets are placed against walls or in corners — the door swings fully open without requiring clearance on both sides (unlike split double doors). Common deployments include: (1) VMware/Hyper-V clusters with compute, storage, and networking in a single cabinet; (2) Cisco UCS or HPE Synergy blade chassis with top-of-rack switching; (3) backup-to-disk appliances (Dell EMC Data Domain, Veeam hardened repositories) requiring high weight capacity for spinning disk arrays; (4) telecom central office installations housing SBC gateways, media servers, and session border controllers under NEBS environmental conditions.
The FlexFusion platform's modularity extends beyond the cabinet itself: Panduit's ecosystem includes matching cable managers (vertical PatchRunner and horizontal QuickNet), fiber distribution units, and copper patch panels designed to the same 800mm width standard. This allows a single cabinet to support both structured cabling termination and active equipment without adapter brackets or oversized panels that waste RU space. For integrators managing multi-site rollouts, the XG84212BS0113's model number encodes the configuration (800mm width, 42RU height, 1070mm depth, black finish, CoolBoot top, single hinge door, special order) — simplifying procurement and ensuring consistency across locations. Every cabinet ships fully assembled (no field assembly of frame or doors), reducing installation labor to anchor mounting, grounding, and equipment racking.
Why FlexFusion for Mission-Critical Infrastructure: Panduit's FlexFusion line differentiates itself from commodity rack manufacturers through three engineering decisions: (1) over-spec'd load ratings that account for real-world abuse (pallet jack strikes, asymmetric loading, seismic events), not just static lab conditions; (2) thermal management designed for containment integration from day one, rather than as an afterthought requiring field modifications; (3) standards compliance that extends beyond hole spacing to include grounding, bonding, and safety certifications required by institutional buyers. The XG84212BS0113 is not the cheapest 42RU cabinet on the market — it's the cabinet you specify when downtime costs exceed equipment costs, when building inspectors actually check NEC compliance, and when your infrastructure needs to outlast the servers it houses. Backed by Panduit's manufacturer warranty and supported by a North American distribution network, this cabinet is the foundation for infrastructure that works.
