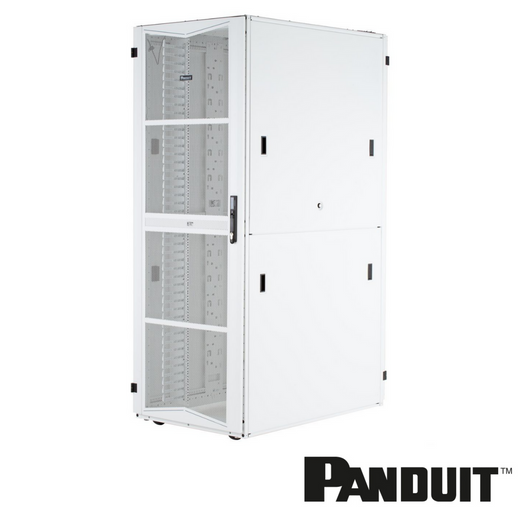

Panduit XG84212BS0030 FlexFusion 800mm 42RU Network Cabinet
The Panduit XG84212BS0030 is a FlexFusion 800mm-width 42RU steel network cabinet engineered for high-density server and network equipment deployments in data centers, telecommunications spaces, and enterprise server rooms. With a 2,250-pound dynamic load rating and 1070mm depth, this cabinet accommodates deep switches, blade servers, and UPS systems while maintaining thermal management through integrated brush-seal top caps and structured airflow pathways. Rapid Deployment (RPD) mounting brackets eliminate the need for cage nuts, and included heavy-duty casters enable positioning before final anchoring.
Key Features
- 2,250 lb Dynamic / 3,000 lb Static Load Capacity: Steel frame construction supports fully-loaded racks with multiple 1U/2U servers, patch panels, and power distribution without deflection or sag.
- 800mm Width × 42RU Height × 1070mm Depth: Standard 19-inch EIA-310-E rail spacing with extra width for high-density cabling and side-mounted vertical cable managers; 1070mm depth clears deep servers and allows rear-door access.
- Brush Seal Top Cap: Factory-installed brush grommets seal cable entry points at the top of the cabinet, maintaining hot-aisle/cold-aisle containment integrity and preventing bypass airflow that degrades cooling efficiency.
- Rapid Deployment (RPD) Mounting Brackets: Tool-less square-hole rail system with snap-in equipment brackets reduces installation time by 60% compared to traditional cage-nut mounting; brackets adjust vertically in 1RU increments without disassembly.
- Heavy-Duty Leveling Casters: Four swivel casters (two locking) enable cabinet repositioning during installation; flip-down leveling feet provide final stability and meet seismic zone requirements when anchored.
- EIA-310-E, IEC 60297, UL 2416 Compliant: Universal 19-inch rack standards compliance ensures compatibility with all standard rack-mount IT equipment; UL 2416 listing meets NEC Article 645 for information technology equipment rooms.
- Integrated Vertical Cable Management: Side-mount channels with snap-in covers manage Cat6A/fiber runs between switches and patch panels; finger ducts at each 1RU position guide cables from equipment to vertical managers without kinking.
- Perforated Front and Rear Doors: 74% perforation rate maximizes front-to-back airflow for active cooling; doors swing 180° and are removable without tools for maintenance access in tight aisles.
- Grounding Studs and Bonding Jumpers: Factory-installed 10-32 grounding studs on frame rails and door hinges maintain continuous electrical bonding per ANSI/TIA-607-C; reduces EMI and meets NEC 250.96 requirements.
- Black Powder-Coat Finish: Corrosion-resistant RAL 9004 finish withstands data center environments; scratch-resistant surface maintains appearance through equipment swaps and reconfigurations.
Data center and telecom installers face the challenge of balancing equipment density with thermal management, cable access, and long-term serviceability. The Panduit XG84212BS0030 addresses this by combining structural capacity with airflow optimization. The 2,250-pound dynamic load rating means you can fully populate all 42RU with 1U servers, top-of-rack switches, and redundant power supplies without worrying about frame flex or equipment misalignment over time. The 3,000-pound static rating provides headroom for blade chassis and dense storage arrays that concentrate weight in a few RU positions. Steel construction with welded corner gussets eliminates the frame twist common in lighter cabinets when you're torquing down heavy equipment or pulling cable bundles through side channels.
The brush seal top cap is a critical but often-overlooked feature for containment deployments. Standard cabinets with open tops or simple blanking panels allow conditioned air to escape before it reaches equipment intakes, forcing your CRAC units to overcool the room to compensate. Panduit's brush grommets seal around cable bundles while still allowing new runs to push through without disassembling the top — you get the containment benefit without the access penalty. If you're running hot-aisle containment or planning to add it later, this cabinet integrates without retrofit kits. The 1070mm depth provides space for rear-door heat exchangers or passive chimney systems if you need to address hot-spot issues without increasing facility cooling capacity.
Rapid Deployment brackets eliminate the time-sink of cage nuts while providing better load distribution than clip-nuts or hooks. Each bracket snaps into square holes with a positive lock and supports 200 pounds — sufficient for loaded 1U servers or multi-port fiber patch panels. The square-hole pattern on FlexFusion rails is EIA-310-E standard, so you're not locked into Panduit-only brackets if you need to mix equipment types. Vertical adjustment without tools means you can reposition equipment during MAC (moves, adds, changes) work without a pocket full of nuts or a cage-nut tool. For integrators running dozens of racks in a buildout, this adds up to hours saved per cabinet.
The included casters are load-rated for the full 2,250-pound capacity, so you can wheel a partially-loaded cabinet into final position rather than installing equipment in-place or using a lift. Two locking casters prevent roll during cable pulls. Once positioned, flip-down leveling feet extend to lift the cabinet off the casters and provide a solid seismic anchor point. If you're in California or another seismic zone, anchor all four corners per IBC/CBC requirements — the cabinet base has pre-drilled holes and accepts standard 3/8-inch anchor bolts. Grounding continuity is maintained through leveling feet via bonding jumpers, so you don't need separate ground straps when anchoring to a raised floor grid.
Vertical cable managers on each side accept snap-in covers with D-ring pass-throughs, giving you a structured path for switch-to-patch-panel runs without zip-ties or Velcro wraps hanging in the airflow path. Front-to-back airflow is 74% open area on doors, which matches the perforation rate on most server bezels — you're not creating a bottleneck at the door that forces fans to spin harder. Removable doors (hinge pins pull without tools) let you get a fully-loaded rack through a 36-inch door opening by removing one side door temporarily. For ongoing access, 180° door swing keeps the door out of the adjacent aisle when you're working in tight rows.
Compliance with EIA-310-E and IEC 60297 ensures any 19-inch rack-mount equipment will fit without adapters or custom brackets. UL 2416 listing is required for NEC Article 645 compliance in dedicated IT equipment rooms and data centers — this is the code inspectors check during final walkthroughs. The cabinet meets UL's requirements for load testing, grounding continuity, and flammability, which eliminates the risk of a failed inspection forcing you to swap cabinets after installation. For federal or DoD projects, the steel construction and domestic manufacturing (Panduit's Tinley Park, IL facility) can help meet Buy American Act preferences, though you'll need to verify current production sourcing for your specific project.
Panduit's FlexFusion line differentiates itself in the crowded rack market by focusing on field installer concerns rather than adding features that look good in renderings but create service headaches. The brush seal top cap, RPD bracket system, and removable doors without tools are examples of design decisions that save time on day one and every day after. When you're managing dozens of racks across a facility or planning for years of MAC work, those differences compound. The XG84212BS0030 delivers the structural and thermal performance expected in a data center cabinet while reducing the labor burden of installation and ongoing changes — a combination that matters more than feature-sheet checkboxes when you're the one twisting the wrench.
