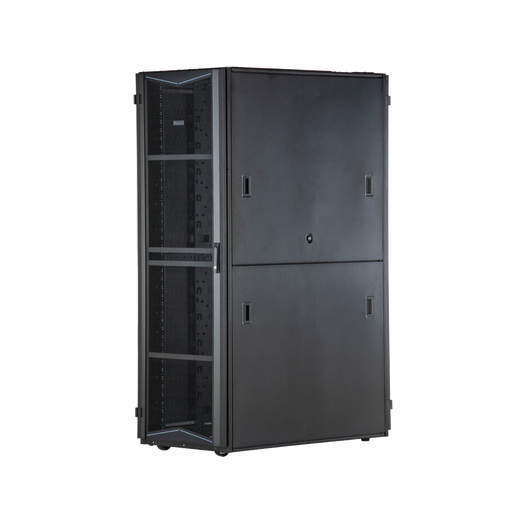

Panduit XG84212BS0001 FlexFusion 42RU Network Cabinet

The Panduit XG84212BS0001 FlexFusion network cabinet delivers 42RU of vertical equipment capacity in an 800mm-wide, 1070mm-deep steel enclosure engineered for high-density server and networking deployments. Rated for 2,250 lbs dynamic load and 3,000 lbs static load, this cabinet handles fully-populated blade servers, dense switch stacks, and UPS systems without deflection. Brush slot cable entry, split rear doors, and single front hinged door provide the access and routing paths required for clean installations in enterprise data centers, colocation facilities, and telecommunications spaces.

Key Features

• 42RU vertical mounting space accommodates full-height servers, networking gear, patch panels, and power distribution
• 800mm width and 1070mm depth support modern deep-chassis servers and leave room for rear cable management
• 2,250 lb dynamic / 3,000 lb static load capacity rated for fully-loaded enterprise equipment without sag or instability
• Steel construction with powder-coat black finish for durability in 24/7 operating environments
• Brush slot cable entry at top enables clean ingress for overhead or raised-floor cable routing
• Single hinged front door with standard lock provides secure equipment access and quick service entry
• Split rear doors with left and right standard locks allow independent access to each vertical half for hot-aisle servicing
• EIA-310-E, IEC 60297, and UL 2416 compliance ensures compatibility with standard 19-inch rack-mount equipment and meets electrical safety requirements

The XG84212BS0001 uses heavy-gauge steel vertical rails and a reinforced frame to distribute load evenly across the cabinet footprint. At 2,250 lbs dynamic capacity, the cabinet supports live equipment under operational vibration—critical when housing spinning-disk storage arrays or active cooling systems. The 3,000 lb static rating accommodates future expansions and temporary stacking during staged installations. The 800mm width is the industry-standard dimension for 19-inch rack-mount equipment, ensuring universal compatibility with servers, switches, routers, patch panels, and PDUs. The 1070mm depth is sized for enterprise-class servers with rear-mounted PSUs and leaves 150-200mm behind the equipment plane for horizontal cable managers, fiber slack storage, and airflow exhaust.

Thermal management starts with the cabinet geometry: the 1070mm depth creates a front-to-back airflow path long enough for server fans to pull cool air from the front and exhaust hot air at the rear without recirculation. The brush slot at the top of the cabinet provides a 360-degree cable entry point while maintaining a partial seal against particulate contamination—better than open-top designs that allow dust ingress but still flexible enough for installers to route bundles from overhead ladder rack or raised-floor plenums. Cable routing inside the cabinet benefits from the split rear doors: each door covers roughly 21RU of vertical space, so installers can open one side to dress cables to upper equipment and leave the lower side closed to maintain containment. For deployments in hot-aisle/cold-aisle layouts, closing the rear doors after cable termination prevents exhaust air from mixing back into the cold aisle and raising inlet temperatures.

The single front door is hinged on the left and secured with a standard keyed lock. The hinge design allows the door to swing 180 degrees and latch open against the cabinet side, giving installers full unobstructed access to rack-mounted equipment during server swaps, drive replacements, or LED diagnostics. The lock is universal-keyed within the Panduit FlexFusion line, so a single key opens all front doors in a row—useful for facilities teams managing dozens of cabinets. The split rear doors each have their own standard lock, and the vertical split is intentional: when both doors are open, the center gap aligns with the vertical cable management channel that most integrators run down the middle of the rack. This means you can terminate patch cords and power cables to mid-rack equipment without removing an entire door panel or working around a single large door that blocks half the workspace.

The FlexFusion line is Panduit's modular data center infrastructure platform, and the XG84212BS0001 integrates with Panduit's vertical cable managers, horizontal wire management panels, and zone distribution PDUs without adapter brackets or custom drilling. The cabinet's threaded square holes follow EIA-310-E spacing (standard 19-inch rack), so any EIA-compliant equipment mounts directly without cage nuts or tapped holes. IEC 60297 compliance ensures metric compatibility for international equipment, and UL 2416 certification confirms the cabinet meets electrical safety standards for data processing equipment in North American installations. Typical deployments include virtualization hosts (VMware, Hyper-V clusters), SAN storage arrays, core/distribution switches, firewall appliances, and edge compute nodes for AI inference or video analytics workloads. The 42RU height is tall enough for a fully-loaded configuration—say, 10× 2RU servers, 6× 1RU switches, 12× 1RU patch panels, 2× 2RU PDUs, and a 1RU KVM—with room left over for future expansion or airflow blanking panels.

Choose the XG84212BS0001 when your deployment requires proven load capacity, standards-compliant construction, and access design that doesn't force tradeoffs between cable management and equipment servicing. The split rear doors and brush slot eliminate the common pain points integrators face with monolithic cabinets—working around a single rear door that blocks the entire back plane or routing cables through an open top that compromises containment. Panduit's FlexFusion ecosystem means adding vertical managers, PDU mounting, or seismic bracing later doesn't require field modifications or non-standard hardware. This cabinet fits data center builds where equipment uptime, thermal predictability, and clean structured cabling are non-negotiable.
