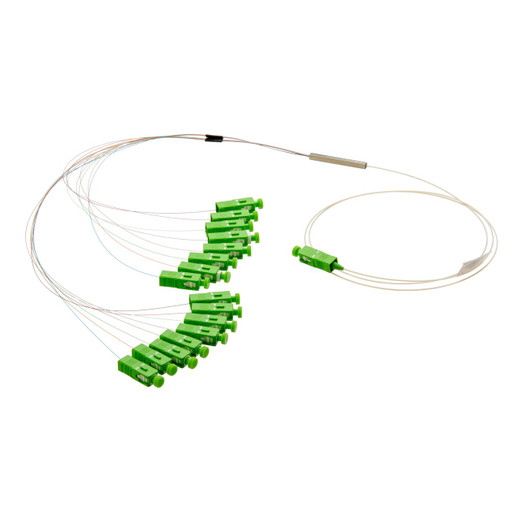

Panduit FPONCS1X16 1x16 Fiber Optic PLC Splitter
Overview
The Panduit FPONCS1X16 is a planar lightwave circuit (PLC) splitter designed for fiber optic passive optical LAN infrastructure. It takes a single input and fans it out across 16 output ports, allowing one upstream fiber run to serve 16 endpoints — the core architecture behind POL (Passive Optical LAN) deployments that eliminate active switching hardware in the distribution layer. Built to GR-1209-CORE and GR-1221-CORE Telcordia standards, the FPONCS1X16 is appropriate for enterprise-grade structured cabling environments where long-term reliability and optical loss consistency matter.
Key Features
- 1x16 Split Ratio: One upstream port feeds 16 downstream connections — a single fiber run from the MDF or IDF can serve an entire floor zone without additional active switching, reducing hardware count and ongoing power costs in passive optical LAN builds.
- GR-1209-CORE and GR-1221-CORE Compliance: These Telcordia standards cover component reliability (GR-1209) and long-term environmental durability (GR-1221). Meeting both means the splitter is validated for carrier and enterprise-grade deployments — not just functional, but proven against aging and environmental stress cycles.
- 17-Fiber Configuration: The unit counts 17 fibers total (1 input + 16 outputs), with no active components in the signal path. Passive architecture means zero power draw at the splitter itself and no failure modes tied to electronics or firmware.
- Polycarbonate Housing: The acid green polycarbonate enclosure is impact-resistant and lightweight, making it practical for above-ceiling or wall-mounted termination points. The distinctive color also aids field identification in dense fiber pathways.
- Panduit Fiber Ecosystem Compatibility: Designed to integrate within the broader Panduit fiber infrastructure portfolio — enclosures, patch panels, and cable management products — supporting a consistent structured cabling architecture across the enterprise.
- 10-Unit Carton Quantity: Sold individually but available in cartons of 10, which is practical for multi-zone or multi-floor POL rollouts where you are deploying the same split ratio across multiple IDF closets.
Integration and Compatibility
The FPONCS1X16 is intended for passive optical LAN environments where a central OLT (optical line terminal) drives multiple ONT (optical network terminal) endpoints via a passive fiber plant. It fits into fiber optic accessories and termination infrastructure supporting GPON or XGS-PON architectures. The splitter itself is protocol-agnostic — it operates at the physical layer and does not interpret traffic. Confirm connector type and polish compatibility with your specific OLT/ONT vendor before specifying; the evidence does not detail connector types, so verify with Panduit product documentation for your exact configuration.
Frequently Asked Questions
Q: What standards does the FPONCS1X16 meet?
A: The FPONCS1X16 meets GR-1209-CORE (generic requirements for fiber optic components) and GR-1221-CORE (reliability assurance for passive optical components), both Telcordia standards used as benchmarks for enterprise and carrier-grade optical infrastructure.
Q: How many fibers does the FPONCS1X16 have?
A: It has 17 fibers total — 1 input and 16 outputs — consistent with a 1x16 PLC splitter configuration.
Q: Is the FPONCS1X16 an active or passive device?
A: Passive. There are no active electronics in the signal path, no power requirement at the splitter, and no firmware or management interface. It operates purely at the physical optical layer.
Q: What is the housing material?
A: Polycarbonate, in acid green — a durable, impact-resistant thermoplastic that also provides a visual identification cue in dense fiber termination environments.
Q: Can the FPONCS1X16 be used outside of a Panduit fiber system?
A: The splitter itself is a passive optical component and is not electrically tied to Panduit-specific hardware. However, verify connector type compatibility with your enclosure and patch panel system before procurement, as the evidence does not specify connector interface details.
The FPONCS1X16 is the component I reach for when an enterprise POL design calls for a 1x16 split at the IDF level — specifically because it carries both GR-1209-CORE and GR-1221-CORE certifications, which tells me the optical loss uniformity and long-term reliability have been validated under Telcordia test regimes, not just bench-tested by the manufacturer. For a passive plant that you are not revisiting for a decade, that matters.
Technical Highlights:
- Dual GR Compliance (GR-1209 + GR-1221): GR-1209 covers insertion loss, return loss, and directivity; GR-1221 covers environmental aging. Together they confirm the splitter will hold its optical budget across temperature cycles and humidity — not just on day one.
- 17-Fiber Passive Design: No electronics, no power draw, no firmware vulnerabilities. The 17-fiber count (1 in, 16 out) means the entire distribution zone runs on a single upstream strand — a genuine simplification of IDF closet infrastructure.
- Polycarbonate Acid Green Housing: Polycarbonate handles the mechanical stress of above-ceiling installation, and the acid green colorway is a practical field aid when you are tracing splitters in a crowded termination point under poor lighting.
Deployment Considerations:
- The evidence does not specify connector type or polish (UPC vs. APC). Confirm connector interface compatibility with your OLT and ONT before ordering — APC/UPC mismatch is a common source of excess insertion loss in POL deployments.
- A 1x16 split introduces roughly 13–14 dB of splitting loss before accounting for fiber run and connector losses. Verify your OLT optical budget covers the full link loss for the longest run in the zone.
This splitter is a solid fit for enterprise POL rollouts — specifically in campus or multi-floor building designs where each IDF serves up to 16 ONT drops and the goal is eliminating active switching hardware from the distribution layer entirely.
