Panduit FPONCS1X32 1x32 Fiber Optic PLC Splitter for Passive Optical LAN
Overview

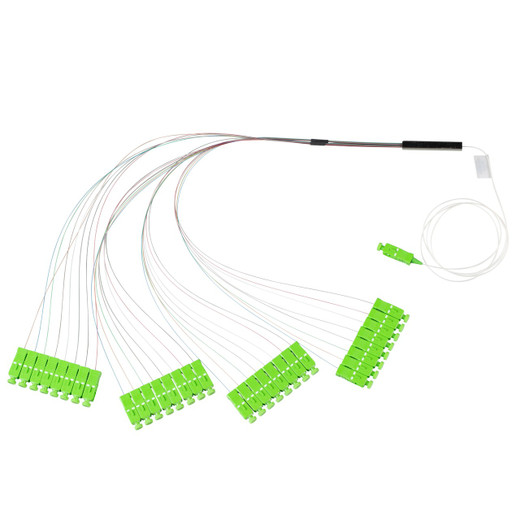

The Panduit FPONCS1X32 is a 1x32 planar lightwave circuit (PLC) fiber optic splitter engineered for passive optical LAN (POL) deployments where a single fiber feed must serve up to 32 downstream endpoints without active electronics in the distribution path. If you're architecting a POL infrastructure for a campus, hospitality, or enterprise building — eliminating active distribution hardware in the horizontal — this is the splitting component that handles the 1-to-32 fanout. It ships in carton quantities of 10, which aligns with the multi-drop planning typical of floor-level or zone-level POL distribution points.
Panduit's fiber optic systems are designed for structured cabling environments where standards traceability matters at every passive component. The FPONCS1X32 carries GR-1209-CORE and GR-1221-CORE ratings — the Telcordia reliability standards that network architects require before deploying passive optical components in permanent building infrastructure. These aren't optional certifications; in enterprise POL procurement, GR-1209/1221-CORE compliance is frequently a bid requirement.
Key Features
- 1x32 Split Ratio: A single input fiber fans out to 32 output fibers — every output port carries the same signal, which means one fiber run from the OLT closet serves an entire floor zone. Fewer fiber home-runs from the MDF translate directly to lower cabling and termination labor costs.
- 33-Fiber Count (1 input + 32 output): The 33-fiber construction is the physical realization of the 1x32 architecture. Plan your fiber management hardware — patch panels, splice trays, and enclosures — around this count before installation.
- GR-1209-CORE and GR-1221-CORE Compliance: These Telcordia standards govern optical reliability (insertion loss consistency, return loss) and long-term environmental endurance. Specifying GR-1209/1221-compliant components protects the passive optical network from performance drift over the building lifecycle — a meaningful distinction from unrated commodity splitters.
- Passive Optical LAN Application: No power, no active components, no firmware to manage. A properly installed POL splitter adds zero ongoing operational overhead to the distribution layer — that's the architectural argument for POL over switched Ethernet in certain high-density or renovation scenarios.
- Polycarbonate Housing: The acid-green polycarbonate enclosure is visually distinct for field identification and provides adequate mechanical protection for a fixed installation component. Polycarbonate won't corrode in standard conditioned indoor environments.
- Carton Quantity of 10: Priced and packaged for project-scale procurement. If you're deploying multiple floors or zones, buying in carton quantities aligns unit economics with multi-drop POL design rather than piecemeal ordering.
Integration and Compatibility
The FPONCS1X32 is a passive fiber optic splitter compatible with standard POL architectures using GPON or XGS-PON OLT equipment. It integrates into Panduit's broader fiber optic accessory ecosystem — enclosures, patch panels, and splice management products designed for enterprise structured cabling. When planning a POL installation, pair this splitter with appropriate fiber optic enclosures that can accommodate the 33-fiber count and maintain bend radius compliance on all ports. Consult your POL system design guide for insertion loss budget calculations — a 1x32 split introduces approximately 17–18 dB of splitting loss at minimum, which must be accounted for in the link budget.
What's in the Box
- 1x Panduit FPONCS1X32 1x32 PLC Fiber Optic Splitter
Frequently Asked Questions
Q: What standards does the FPONCS1X32 meet?
A: The FPONCS1X32 meets GR-1209-CORE and GR-1221-CORE — the Telcordia reliability and environmental endurance standards commonly required for passive optical components in enterprise and carrier-grade structured cabling bids.
Q: What application is the FPONCS1X32 designed for?
A: It is designed specifically for passive optical LAN (POL) deployments, where a single fiber from an OLT is split to serve up to 32 downstream ONT or ONU endpoints without active electronics in the distribution path.
Q: How many fibers does the FPONCS1X32 have?
A: The FPONCS1X32 has 33 fibers total — 1 input and 32 outputs, corresponding to its 1x32 split architecture.
Q: What is the carton quantity for the FPONCS1X32?
A: The FPONCS1X32 ships with a carton quantity of 10 units, making it suitable for project-scale procurement across multi-zone or multi-floor POL installations.
Q: What is the housing material and color of the FPONCS1X32?
A: The housing is polycarbonate, colored acid green — useful for visual field identification in structured cabling environments with mixed component types.
The FPONCS1X32 is a purpose-built 1x32 PLC splitter for passive optical LAN — and the spec that matters most at procurement is the GR-1209-CORE and GR-1221-CORE compliance. In competitive bid environments for enterprise or education campus POL projects, those Telcordia ratings are frequently a hard requirement, not a preference. If you're quoting a POL system and the spec sheet doesn't show GR-1209/1221-CORE, expect a submittal rejection.
Technical Highlights:
- 1x32 PLC Architecture: A single input drives 32 simultaneous outputs with uniform signal distribution — the PLC (planar lightwave circuit) process ensures consistent insertion loss across all 32 ports, which matters when your downstream ONTs have tight receive-power sensitivity windows.
- GR-1209-CORE / GR-1221-CORE: These Telcordia standards define optical performance reliability and long-term environmental endurance for passive components. Specifying them over unrated commodity splitters is how you defend passive network performance over a 15–20 year building infrastructure lifecycle.
- Carton Qty 10, Package Qty 1: The per-unit package and 10-unit carton structure lets you procure at project scale without committing to full pallet quantities — practical for 2–5 floor POL installs where you need 15–25 splitters total.
Deployment Considerations:
- A 1x32 PLC split introduces approximately 17–18 dB of intrinsic splitting loss minimum. Run your link budget before finalizing OLT output power and fiber plant design — confirm your ONT receive sensitivity supports the full loss budget including connectors, splices, and fiber attenuation.
- The 33-fiber count (1 in, 32 out) means your enclosure selection is critical. Verify that the chosen fiber management enclosure has adequate capacity and bend-radius protection for 33 fibers before specifying installation locations.
The FPONCS1X32 is the right specification for enterprise campus or multi-tenant building POL deployments where GR-1221-CORE compliance is a bid requirement and the distribution zone calls for a full 1-to-32 fanout from a single fiber feed.
