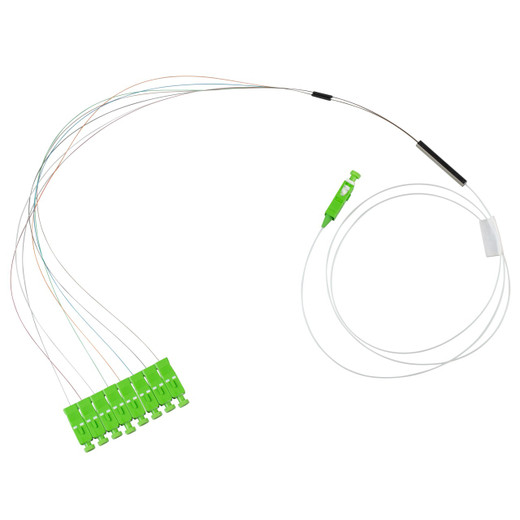

Panduit FPONCS1X8 1x8 Fiber Optic PLC Splitter for Passive Optical LAN
Overview
The Panduit FPONCS1X8 is a 1x8 planar lightwave circuit (PLC) splitter designed for passive optical LAN deployments where a single upstream fiber feed must be distributed to eight downstream endpoints without active electronics in the path. Meeting both GR-1209-CORE and GR-1221-CORE reliability standards, this splitter is built for the real-world demands of commercial and enterprise structured cabling environments. The FPONCS1X8 ships in a polycarbonate housing finished in acid green — a deliberate color choice that aids visual identification in dense fiber trays and patch panels where technicians are managing dozens of similar components.
Passive optical networking has gained traction in enterprise and campus environments as a way to reduce active switch count, cut power draw, and simplify the horizontal cabling plant. A PLC splitter like this one sits at the core of that architecture: the optical signal from the OLT arrives on a single fiber, the splitter divides it across eight ports, and each ONT downstream receives its share — no electricity, no fans, no failure-prone active hardware in the distribution layer. For IT architects evaluating a fiber optic accessories strategy, that translates directly to lower mechanical failure risk and simplified maintenance windows.
Key Features
- 1x8 Split Ratio (9 total fibers): One input fiber distributes the optical signal to eight output ports simultaneously. This is the practical split ratio for most enterprise floor-distribution scenarios — enough to serve a full wing or floor zone from a single upstream run, without the insertion loss penalty that comes with higher split ratios like 1x16 or 1x32. Verify your OLT's optical power budget accommodates the ~10.5 dB insertion loss typical of 1x8 PLC architecture before specifying.
- GR-1209-CORE and GR-1221-CORE Compliance: These Telcordia (now Ericsson) standards set the benchmark for passive optical component reliability — GR-1209 covers generic reliability requirements for fiber optic branching components, while GR-1221 defines additional reliability assurance criteria. Meeting both means the FPONCS1X8 has been tested against temperature cycling, humidity exposure, and mechanical stress protocols that carrier-grade deployments require. For enterprise buyers, this translates to a component you can specify into a 20-year cabling plant without worrying about the splitter being the weak link.
- Polycarbonate Housing: The enclosure material is polycarbonate rather than the cheaper ABS plastics seen on commodity splitters. Polycarbonate handles mechanical impact and a wider temperature range more reliably in IDF closets and utility spaces where the environment isn't always climate-controlled. The acid green color coding is a Panduit convention that helps field technicians identify this component family at a glance when cables are bundled in trays.
- Passive Operation: Zero active electronics means zero power consumption at the splitter itself — relevant when calculating total power draw for a passive optical LAN refresh. It also eliminates the need for power provisioning, UPS capacity allocation, or scheduled hardware replacement cycles at distribution points.
- Application-Specific Design for Passive Optical LAN: The FPONCS1X8 is explicitly rated for POL (Passive Optical LAN) environments, not just generic FTTX or telecom applications. POL architectures using IEEE 802.3ah (EPON) or ITU-T G.984 (GPON) standards depend on components like this splitter to maintain signal integrity across the distribution layer — specifying a component validated for this use case reduces integration risk.
- Package and Carton Quantities: Ships as a single unit (Package Qty: 1), with a carton quantity of 10. For contractors pricing a multi-floor POL deployment, ordering in carton quantities simplifies procurement and ensures consistent component sourcing across the project.
Integration & Compatibility
The FPONCS1X8 is designed to integrate into Panduit fiber optic systems infrastructure, including fiber patch panels, fiber enclosures, and the broader Panduit structured cabling ecosystem. In a passive optical LAN design, the splitter sits between the OLT (optical line terminal) at the IDF or MDF and the ONTs (optical network terminals) at the endpoint — typically at the workstation, IP phone, or access point location. Connector type and fiber mode (typically single-mode OS2 for enterprise POL) should be confirmed against your OLT specifications; verify that pigtail or connector termination style on the FPONCS1X8 matches your patch panel and ONT ports before ordering. For network switching environments transitioning to POL, the passive distribution layer this splitter enables can significantly reduce IDF switch count and associated cabling.
What's in the Box
- 1x Panduit FPONCS1X8 1x8 Fiber Optic PLC Splitter
Frequently Asked Questions
Q: What standards does the FPONCS1X8 meet?
A: The FPONCS1X8 is compliant with GR-1209-CORE and GR-1221-CORE — the Telcordia reliability standards for passive fiber optic branching components covering thermal cycling, humidity, and mechanical stress testing.
Q: What application is the FPONCS1X8 designed for?
A: It is designed specifically for Passive Optical LAN (POL) deployments, where a single upstream fiber is split to serve multiple downstream endpoints without active electronics in the distribution path.
Q: How many fibers does the FPONCS1X8 have?
A: The FPONCS1X8 has 9 fibers total — 1 input and 8 outputs — consistent with a 1x8 PLC splitter configuration.
Q: What is the housing material on the FPONCS1X8?
A: The enclosure is polycarbonate, finished in acid green. Polycarbonate provides better impact and temperature resistance compared to standard ABS housings, and the color coding aids identification in fiber trays.
Q: Can I order the FPONCS1X8 in bulk quantities?
A: Yes. The carton quantity is 10 units, making it straightforward to order for multi-floor or multi-zone passive optical LAN installations in a single procurement.
Q: Does the FPONCS1X8 require power or active management?
A: No. As a passive PLC splitter, the FPONCS1X8 requires no power supply, no configuration, and no ongoing management — it operates entirely passively within the optical distribution layer.
The FPONCS1X8 is a straightforward component, but specifying it correctly matters — particularly around the insertion loss budget. A 1x8 PLC split introduces roughly 10.5 dB of insertion loss at the splitter itself; add in connector losses and fiber attenuation over your run lengths, and you need to confirm your OLT's optical power budget can close the link before you pull cable. Panduit's GR-1209-CORE and GR-1221-CORE ratings give you confidence in the component's long-term passive reliability, but they don't substitute for a link budget calculation at design time.
Technical Highlights:
- 1x8 Split Ratio: Distributes one upstream fiber to exactly 8 downstream ONT connections — the practical sweet spot for enterprise floor distribution. Going to 1x16 doubles the downstream count but adds another ~3 dB of insertion loss, which narrows your power budget margin significantly.
- Dual Telcordia Certification (GR-1209/GR-1221-CORE): Both standards are required for carrier and enterprise-grade POL deployments. GR-1209 covers passive component reliability; GR-1221 adds assurance testing rigor. Together they validate the splitter against 20-year service life expectations — relevant when this component will be embedded in a conduit or fiber tray for the life of the building.
- Polycarbonate Housing, Acid Green: The color coding is a practical Panduit convention — acid green identifies this splitter family in mixed-fiber environments. In a populated fiber enclosure with OS2 blue, OM4 aqua, and other components, a distinctively colored splitter body saves technician time during moves, adds, and changes.
Deployment Considerations:
- Confirm connector type and polish (APC vs. UPC) on the FPONCS1X8 pigtails or ports matches your OLT uplink and ONT downlink interfaces before ordering — mating APC and UPC connectors in a POL plant adds reflection loss that can degrade link margin.
- The carton quantity of 10 units is a minimum order consideration for some procurement systems — if you need fewer than 10 for a small pilot deployment, verify your distributor can break the carton.
The FPONCS1X8 is a strong fit for enterprise campus POL refreshes where IT architects are eliminating IDF switch tiers and need a reliable, standards-validated splitter at each distribution point — specifically in new construction or tenant improvement projects where the cabling plant is being designed from scratch and Panduit's fiber infrastructure ecosystem is already specified.
