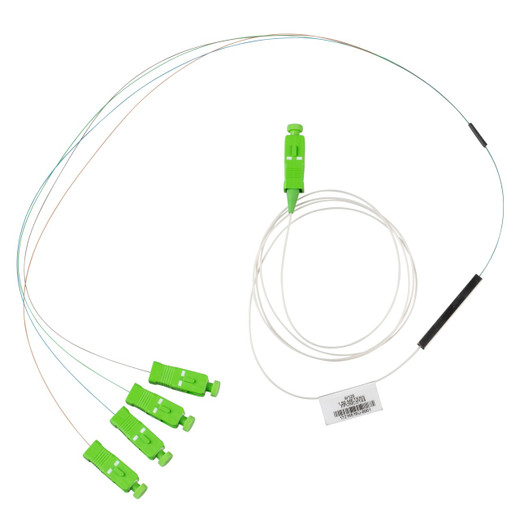

Panduit FPONCS1X4 1x4 Fiber Optic PLC Splitter for Passive Optical LAN
Overview
The Panduit FPONCS1X4 is a 1x4 planar lightwave circuit (PLC) splitter designed for passive optical LAN (POL) deployments — the architecture increasingly adopted by enterprise and campus networks to replace active Ethernet distribution with a single-fiber, no-power-at-the-edge topology. This 5-fiber component splits one upstream optical signal into four downstream outputs, allowing a single OLT port to serve multiple ONUs across a building or floor without any powered intermediate equipment. The FPONCS1X4 ships individually but is packaged in cartons of 10, aligning with typical structured cabling project quantities.
If you are evaluating Panduit fiber optic components for a POL build-out, this splitter fits within Panduit's broader fiber optic systems portfolio and is engineered to the same telecom-grade reliability standards used in carrier-class outside plant deployments.
Key Features
- 1x4 Split Ratio — 4 endpoints from a single OLT port: A 1x4 configuration is the practical sweet spot for small zone distributions — a single riser fiber feeds four workstations, APs, or IP cameras on the same floor without any active switch. That eliminates one power-dependent node per cluster, which matters in a wiring closet consolidation project.
- 5-Fiber Construction: The FPONCS1X4 uses a 5-fiber build (one input, four outputs) in a polycarbonate housing. Polycarbonate offers good impact resistance and dimensional stability across the temperature ranges typical of IDF closets and above-ceiling plenum runs — important when the splitter is installed out of reach for the life of the infrastructure.
- Passive Operation — Zero power at the split point: Because a PLC splitter is entirely passive, there is no power supply to fail, no heat to manage, and no UPS dependency at the distribution point. For a network infrastructure project where minimizing active components in remote locations is a design goal, this is a concrete reliability advantage.
- GR-1209-CORE and GR-1221-CORE Standards Compliance: These Telcordia (Bellcore) standards govern the generic reliability and long-term performance of fiber optic branching components. GR-1209-CORE covers interoperability and insertion loss consistency; GR-1221-CORE addresses mechanical and environmental reliability over the component's service life. Meeting both means this splitter is built and tested to the same benchmark used for carrier outside-plant deployments — not just a commercial-grade label.
- Acid Green Color Coding: The acid green housing follows common fiber plant color conventions for splitter identification, making it easier to distinguish split points from straight-through adapters and couplers during moves, adds, and changes. In a densely patched enclosure, visual differentiation reduces mis-termination risk.
- Polycarbonate Housing — Durable and lightweight: Polycarbonate is dimensionally stable, resists cracking under physical stress during installation, and does not corrode. In above-ceiling or in-cabinet installations where the splitter may be handled repeatedly during commissioning, a polycarbonate body holds up better than ceramic or brittle thermoset housings.
- Carton Quantity of 10 — Project-scale ordering: The FPONCS1X4 is sold individually (package quantity: 1) but ships in cartons of 10, which aligns with typical zone distribution counts on a single floor of an enterprise POL deployment. Ordering by the carton reduces per-unit shipping cost and ensures consistent lot quality across a project.
Integration and Compatibility
The FPONCS1X4 is designed for passive optical LAN architectures where an OLT (optical line terminal) at the MDF or IDF feeds ONUs (optical network units) at the endpoint. It is passive and protocol-agnostic — compatible with GPON, XGS-PON, and EPON systems provided the upstream signal budget accounts for the split loss introduced by a 1x4 configuration (typically 7–8 dB insertion loss for a PLC 1x4, which must be budgeted against the OLT's link budget and fiber run length).
For structured cabling projects, the FPONCS1X4 fits within fiber optic accessory enclosures and fiber distribution hubs where splitters are housed in a protected, organized chassis. Panduit's broader fiber platform supports pre-terminated cassettes, enclosures, and trunk cables that can be combined with this splitter for a fully engineered POL zone. Consult your fiber optic planning guide to verify link budget before finalizing split ratios and fiber run lengths.
Frequently Asked Questions
Q: What standards does the FPONCS1X4 meet?
A: The FPONCS1X4 meets GR-1209-CORE and GR-1221-CORE — the Telcordia standards for fiber optic branching component interoperability and long-term reliability. These are the same standards applied to carrier outside-plant components.
Q: Is the FPONCS1X4 compatible with GPON and XGS-PON systems?
A: PLC splitters are passive and wavelength-transparent within the standard PON operating bands (1260–1650 nm), so the FPONCS1X4 is compatible with GPON, XGS-PON, and EPON systems. Verify that your OLT link budget accommodates the 1x4 split loss (typically ~7–8 dB insertion loss) plus your fiber run length.
Q: What is the split configuration of the FPONCS1X4?
A: It is a 1x4 splitter — one input fiber, four output fibers — for a total of 5 fibers. This allows a single OLT port to serve four downstream ONUs or endpoints.
Q: Can the FPONCS1X4 be used in outdoor or plenum installations?
A: The FPONCS1X4 has a polycarbonate housing and is rated for passive optical LAN applications. The evidence does not specify an outdoor or plenum rating for this part number. Verify environmental suitability — particularly temperature range and flame rating — with Panduit or your cabling consultant before installing in outdoor or plenum-rated pathways.
Q: What is the minimum order quantity and carton size?
A: The FPONCS1X4 is sold in single-unit packages (package quantity: 1). Carton quantity is 10 units, which is a common project-quantity increment for floor-level zone distribution in POL builds.
The FPONCS1X4 is one of those components that looks simple on paper but carries real weight in a POL deployment — specifically, it is the GR-1209-CORE and GR-1221-CORE dual compliance that tells me Panduit engineered this to telecom carrier standards, not just commercial LAN tolerances. When I spec a 1x4 splitter for an enterprise floor zone, I want to know the insertion loss is consistent unit to unit (GR-1209) and that the component will hold up over a 20-year infrastructure lifecycle (GR-1221). The FPONCS1X4 checks both.
Technical Highlights:
- 1x4 PLC Architecture: Splits one OLT upstream port into four downstream endpoints with the flat insertion loss profile characteristic of PLC (vs. FBT) technology — insertion loss consistency across all four output ports matters when you are trying to maintain uniform link budget across a floor zone.
- GR-1209-CORE / GR-1221-CORE: Dual Telcordia compliance means this part has been tested for branching component interoperability and long-term environmental/mechanical reliability — the standard used for carrier outside-plant hardware, applied here to an enterprise LAN component.
- Polycarbonate Housing: More impact-resistant than ceramic alternatives and dimensionally stable across IDF closet temperature swings. In above-ceiling or in-cabinet installations where the splitter won't be touched for years, housing durability is not a trivial spec.
Deployment Considerations:
- Budget the 1x4 split loss (typically 7–8 dB for PLC) into your OLT link budget before committing to fiber run lengths — this is the most common oversight that forces a re-pull or a switch to 1x2 splits on long runs.
- The FPONCS1X4 does not carry a published outdoor or plenum flame rating in the available evidence — confirm with Panduit before installing in plenum airspace or exterior pathways where specific ratings are required by local code.
This splitter is the right choice for a structured enterprise POL deployment on a floor where a single riser fiber needs to branch to four ONUs at wireless APs, IP cameras, or workstations — particularly where eliminating powered closet equipment is a design objective and the link budget supports a 1x4 ratio.
