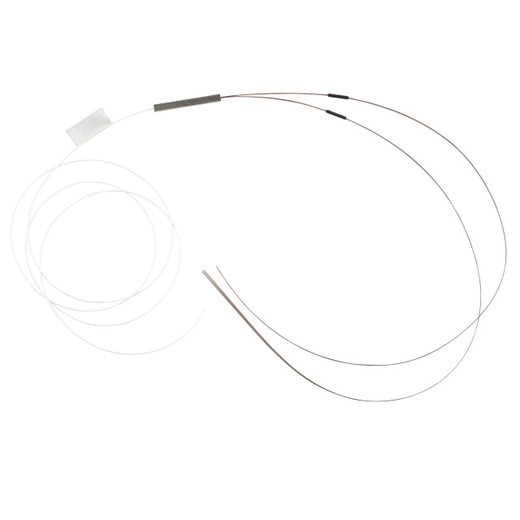

Panduit FPONSS1X16 1x16 Single-Mode Fiber Optic Splitter
The Panduit FPONSS1X16 is a 1x16 single-mode fiber optic splitter engineered for Passive Optical LAN deployments in enterprise, campus, and commercial environments. This splitter distributes optical signals from a single input fiber to sixteen output fibers, enabling efficient bandwidth delivery from OLT equipment to distributed ONTs without active electronics. Qualified to Telcordia GR-1209-CORE and GR-1221-CORE standards, the FPONSS1X16 delivers the insertion loss uniformity, environmental durability, and long-term reliability that mission-critical POL architectures demand. Designed for integrators deploying fiber-to-the-desk, converged network infrastructure, or multi-tenant optical distribution systems.
Key Features
- 1x16 Split Ratio — Distributes one input fiber to sixteen outputs for efficient POL topology design
- Telcordia GR-1209-CORE Compliant — Meets generic requirements for passive optical components including insertion loss, uniformity, and return loss
- GR-1221-CORE Reliability Qualified — Validated for mechanical durability, temperature cycling, humidity resistance, and long-term stability
- Passive Optical LAN Optimized — No power required, minimal failure points, ideal for GPON/EPON enterprise distributions
- Single-Mode Fiber Design — Supports standard 1310nm, 1490nm, and 1550nm wavelengths for bidirectional POL traffic
- Balanced Port Performance — Tight insertion loss uniformity across all sixteen output ports ensures predictable link budgets
- 10-Pack Carton Quantity — Bulk packaging for large campus rollouts, multi-floor installations, or staged deployments
- Environmentally Sealed Construction — Protected against dust, moisture, and temperature swings in telecom closets, ceiling voids, or outdoor enclosures
Passive Optical LAN architectures replace traditional copper Ethernet switching with centralized OLT chassis and distributed passive splitters, eliminating the need for powered electronics in intermediate distribution frames. The FPONSS1X16 sits at the distribution layer of this topology—typically in a telecom room, riser, or zone enclosure—where it splits a single feeder fiber from the OLT into sixteen individual drop fibers serving ONTs at desks, conference rooms, or equipment racks. This passive splitting approach drastically reduces power consumption, cooling requirements, and maintenance overhead compared to stacked Ethernet switches, while delivering symmetrical gigabit bandwidth and centralized management. The splitter's compliance with GR-1209-CORE ensures that insertion loss values and port-to-port uniformity stay within tolerances required for 20km+ POL link budgets, preventing margin erosion that would force costly OLT optic upgrades or additional amplification stages. Return loss performance minimizes back-reflections that degrade upstream burst-mode reception, critical in GPON environments where multiple ONTs share the same upstream wavelength via TDMA.
In practice, POL integrators use 1x16 splitters like the FPONSS1X16 for floor-level or zone-level distribution after an initial 1x4 or 1x8 split closer to the OLT. A common design splits each OLT PON port with a 1x4 splitter in the main telecom room, then runs four feeder fibers to four building zones, where each feeder hits a 1x16 splitter for final distribution—yielding 64 ONT ports per OLT PON interface. This two-stage cascaded architecture balances fiber count, enclosure density, and total optical loss while keeping per-port costs low. The FPONSS1X16's compact form factor fits standard splice trays and fiber management panels, allowing high-density installations in 19-inch racks or wall-mount enclosures without excessive bend radius violations. Installers appreciate the 10-pack carton quantity when provisioning multi-floor office buildings, hospitals, or campus networks where sixteen-port zones align naturally with structured cabling design—one splitter per wing, per floor, or per tenant space. Because the splitter is entirely passive, it introduces zero latency, requires no configuration, and never needs firmware updates or power budgeting, simplifying both initial deployment and ongoing operations.
The Panduit FPONSS1X16's dual Telcordia qualification distinguishes it from generic splitters that lack formal environmental and reliability testing. GR-1221-CORE validation subjects the splitter to mechanical shock, vibration, temperature cycling from -40°C to +85°C, and high-humidity exposure, ensuring stable performance in uncontrolled telecom closets, outdoor cabinets, or industrial environments. This testing regime catches failure modes—fiber pigtail pullout, housing delamination, wavelength-dependent loss drift—that only surface after months of thermal cycling or physical stress, making it a safer choice for deployments where splitter failure would orphan sixteen end-users and require costly truck rolls. Panduit's reputation in structured cabling and fiber infrastructure adds supply-chain confidence for integrators bidding multi-year projects or stocking materials for national rollouts, with consistent lead times and product availability that matters when staging equipment for phased campus cutovers. For any commercial POL deployment where centralized optical distribution replaces traditional switching, the FPONSS1X16 delivers the split ratio, standards compliance, and bulk packaging that aligns with real-world design and procurement requirements.
