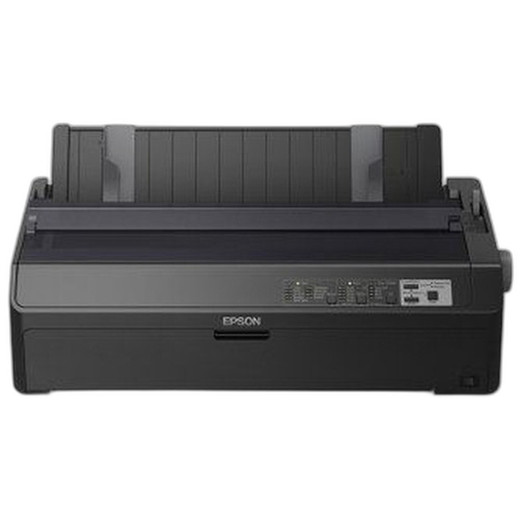

Epson C11CF40201 LQ-2090II 24-Pin Impact Dot-Matrix Printer
Overview
The Epson C11CF40201 LQ-2090II is a 24-pin impact dot-matrix printer engineered for high-volume warehouse, logistics, and multi-part form printing operations. This wide-format monochrome printer delivers reliable performance in demanding environments where durability and continuous throughput are critical. The C11CF40201 supports media widths from 4 to 16 inches and accommodates continuous roll feed, making it ideal for shipping labels, invoices, manifests, and other warehouse documentation requiring multi-copy capability. Unlike thermal label printers, impact architecture allows simultaneous printing across multiple carbonless sheets — one print pass captures customer copy, carrier copy, and internal record copy in a single operation.
Key Features
- 24-Pin Printhead: Delivers sharp, legible output on impact-sensitive forms and continuous paper stocks. The 24-pin configuration produces clean text and barcode symbols that remain readable across all copied layers, critical when shipping documentation passes through multiple handlers.
- 180 DPI Maximum Resolution (180 × 360 dpi): Sufficient for barcode readability and text legibility required in logistics workflows. This resolution balances print quality with throughput — adequate for 1D barcodes and manifest text without sacrificing speed.
- 6-Part Form Capacity: Prints through up to 6 sheets simultaneously, eliminating the need for separate copying passes. One print cycle produces six identical copies, reducing operator handling time and operational overhead in high-volume picking and shipping environments.
- Wide Media Support (4 to 16 inches): Accepts plain paper, recycled paper, continuous forms, cards, and envelopes. The printer handles 8.5-inch roll stock, 16 × 22-inch sheets, and continuous paper up to 16.54 inches × 14.33 inches, allowing a single device to handle invoices, packing slips, and multi-part bills of lading without media changes.
- Continuous Roll Feed: Processes roll media seamlessly, eliminating page-by-page sheet feeding and reducing operator interaction. Ideal for 24/7 automated dispatch and fulfillment scenarios where personnel availability may be limited.
- IBM PPDS and Epson ESC/P 2 Emulation: Integrates with legacy and modern warehouse management systems (WMS) and transportation management systems (TMS) without requiring middleware or code rewrite. Existing label design software and batch print jobs execute without modification, shortening deployment time.
- Monochrome Output (Black Ink Only): Eliminates color cartridge expenses and consumable inventory complexity. Black-only operation also reduces maintenance and print-head clogging risk in industrial environments.
- Industrial-Grade Build: Engineered for continuous operation in warehouse, logistics, and manufacturing settings. The robust mechanical architecture tolerates frequent media changes, debris from shipping materials, and the vibration typical of dock and fulfillment environments.
- 3-Year Limited Warranty: OEM coverage provides protection on critical infrastructure in high-uptime facilities. A replacement or repair turnaround is essential when a single printer failure can halt shipping operations.
Integration & Compatibility
The Epson C11CF40201 integrates with industry-standard warehouse and logistics software via IBM PPDS and Epson ESC/P 2 language emulation. This dual-protocol support ensures deployment in mixed-vendor environments — whether your facility runs SAP, Oracle NetSuite, or a custom WMS — without costly software modification. USB connectivity provides straightforward plug-and-play integration to print servers or direct workstation connection. The wide media format support allows operators to print a variety of document types—from 4-inch shipping labels to full 16-inch invoices and packing slips—from a single device, reducing equipment footprint and operator training overhead.
When to Choose a Different Model
If your facility has transitioned entirely away from carbonless multi-part forms and relies solely on thermal label printing, a thermal label printer will deliver faster throughput and lower consumable costs. If print volume is modest (fewer than 500 labels per shift) and single-copy output is acceptable, thermal is more economical. However, if your operation still requires simultaneous multi-copy output—or if legacy equipment mandates impact printing for form feeding—the C11CF40201 remains the practical choice.
Frequently Asked Questions
Q: Can the Epson C11CF40201 print barcodes that will scan reliably through all 6 copies?
A: Yes. The 24-pin printhead and 180 dpi resolution produce barcode symbols with sufficient edge definition to remain scannable across all six carbonless sheets. Bar width and height remain consistent on the final copy, though print density decreases slightly on the deepest layers. Test with your specific carbonless stock before large-scale deployment.
Q: Does the C11CF40201 work with modern WMS software, or is it legacy-only?
A: The C11CF40201 supports both legacy and modern systems. IBM PPDS and ESC/P 2 emulation ensure compatibility with current WMS platforms (SAP, Oracle, NetSuite, Infor) as well as older systems still in operation. Verify your WMS software documentation to confirm PPDS or ESC/P 2 support before purchase.
Q: What is the typical printhead replacement interval?
A: Impact printheads are rated for approximately 200 million characters under normal conditions. In high-volume 24/7 environments, expect 12–18 months of operation before replacement becomes necessary. This is substantially longer than thermal printhead life but requires periodic maintenance inspection.
Q: Can I use standard cut-sheet paper, or must I use continuous forms?
A: The C11CF40201 supports both continuous roll media and manual cut-sheet feeding (via the friction feed mechanism). Switching between continuous and cut-sheet requires simple adjustment — no special kits or firmware changes. This flexibility is valuable in facilities that print both high-volume continuous manifests and occasional single-sheet documents.
Q: What is the power requirement, and does it require a dedicated circuit?
A: The C11CF40201 requires AC 110–240V, 50/60 Hz input. Peak draw during print is approximately 350W. A standard 15A office outlet will handle the printer; no dedicated industrial circuit is required for most deployments. Verify facility electrical specification before installation.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
I've spec'd the Epson C11CF40201 for several warehouse deployments, and it remains a workhorse for high-volume multi-part form printing. The 24-pin architecture combined with the 6-part form capacity makes this device invaluable in facilities still relying on carbonless manifests, bills of lading, and pick/pack documentation. While thermal label printers have displaced much small-format printing, impact printers like the LQ-2090II remain essential where multi-copy capability is non-negotiable or where legacy equipment integration is required.
Technical Highlights:
- 6-Part Form Simultaneous Printing: One print pass captures six copies — reducing manual collation, copying, and paper waste. In a facility processing 10,000+ shipments per week, this single-pass capability translates to measurable labor savings and faster document handoff to carriers.
- 180 DPI Resolution with 24-Pin Precision: Clean barcode and text reproduction across all copies ensures that even the sixth (deepest) carbonless sheet remains scannable at receiving and sorting points. 24-pin quality eliminates the soft-print appearance common with 9-pin legacy printers.
- 4–16 Inch Media Width Flexibility: A single printer handles 4-inch shipping labels, 8.5-inch pick tickets, and 16-inch invoices and manifests without media cassette swaps or secondary equipment. This consolidation reduces device footprint in space-constrained dock areas and simplifies operator training.
- IBM PPDS and ESC/P 2 Dual Emulation: Guarantees integration with both enterprise WMS (SAP, Oracle) and legacy warehouse software without middleware or API development. Deployment velocity is accelerated when existing label templates and batch jobs run without modification.
Deployment Considerations:
- Impact Noise Footprint: Impact printers operate at 75–80 dB during printing. In open dock or shipping areas this is generally acceptable, but placement near quiet office spaces or break areas requires acoustic shielding or scheduling coordination.
- Consumable Lifecycle: Ribbon life varies with form thickness and print density. Expect ribbon changes every 2–4 weeks in high-volume operations. Factor ribbon cost into TCO projections, especially if the facility runs 20+ hour shifts.
- Carbonless Form Stock Limitation: The printer is optimized for carbonless forms but does not perform well with self-adhesive labels or specialty media (e.g., waterproof polyester). Verify all media specifications before committing to this device.
The C11CF40201 is the right choice for distribution hubs, fulfillment centers, and LTL carrier docks where regulatory compliance, carrier integration, and multi-copy documentation are non-negotiable. If your facility has fully transitioned to thermal and no longer requires carbonless multi-part output, thermal printers will deliver faster throughput and lower per-label cost. But if you're still holding carbonless in your process — or integrating with a legacy WMS that mandates impact printing — the LQ-2090II is the proven, low-risk option.
