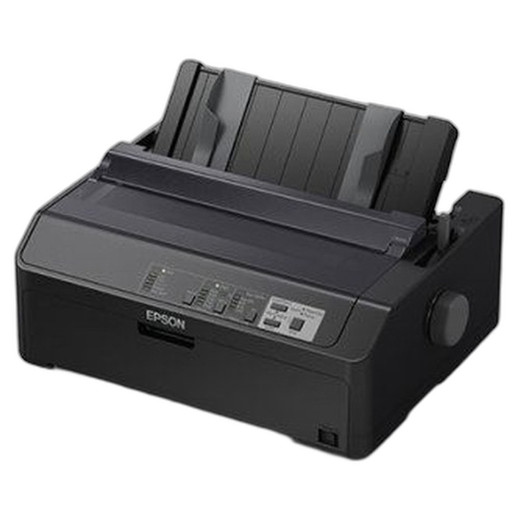

Epson C11CF39201 24-Pin Impact Dot-Matrix Printer

Epson C11CF39201 24-Pin Impact Dot-Matrix Printer

Overview

The Epson C11CF39201 is a monochrome impact dot-matrix printer engineered for high-volume, multi-part form printing in warehouse, logistics, and fulfillment operations. Built around a 24-pin printhead delivering 550 characters per second (CPS), this machine handles the continuous-duty demands of shipping labels, manifests, and warehouse documentation without sacrificing speed or alignment precision on carbonless forms. The C11CF39201 supports up to 6-part carbonless papers in a single pass—meaning you capture shipping data, fulfillment confirmations, and customer copies in one operation, eliminating separate print cycles and cutting processing time on busy distribution floors. Dual connectivity via USB and parallel (Centronics) ports ensures compatibility with both modern warehouse management systems (WMS) and legacy mainframe, AS/400, and dedicated print server environments.

Key Features

• 550 CPS Throughput: Monochrome output speed cuts document production time significantly in high-volume operations—critical when you're processing hundreds of shipments or manifests daily without creating printer bottlenecks in your WMS workflow.
• 24-Pin Printhead Technology: Impact-based dot-matrix delivers crisp text and consistent form alignment on multi-part documents; no toner cartridges or ink jets to clog or dry out, meaning reliable performance even after weeks of continuous duty.
• 6-Part Multi-Pass Capability: Handles continuous or carbonless paper stacks up to 6 sheets thick—one print cycle captures all required copies (shipping label, manifest, fulfillment confirmation, customer copy, etc.), reducing paper handling and re-feeding overhead.
• Media Flexibility: Accepts continuous forms, envelopes, and plain paper in widths from 4 to 10 inches; supports 3.9" × 3.9", 7.17" × 8.27", 10.12" × 14.29", 8.5" × 14.29", and custom roll configurations—adapting to your label and form inventory without requiring printer swaps.
• USB and Parallel Connectivity: Twin ports eliminate protocol conversion middleware; connects directly to modern workstations via USB or integrates into legacy print servers and mainframe systems via parallel (Centronics), reducing IT overhead and compatibility headaches.
• IBM PPDS and Epson ESC/P 2 Language Support: Printer languages accepted by virtually all warehouse management systems and shipping software packages—no custom drivers or firmware modifications needed for integration.
• Ribbon-Based Economics: Impact printing uses ribbon cartridges instead of toner or ink, cutting per-page consumable costs dramatically on high-volume jobs and eliminating wasted supplies from cartridge expiration or evaporation.
• 3-Year Limited Warranty: Manufacturer-backed coverage for parts and labor reduces replacement risk on a device handling continuous-duty production loads.

Integration & Compatibility

The C11CF39201 integrates seamlessly into warehouse management systems, shipping platforms, and inventory software that support IBM PPDS or Epson ESC/P 2 printer languages. USB connectivity enables direct attachment to modern Windows, Linux, or Unix workstations; parallel connectivity maintains backward compatibility with legacy AS/400, minicomputer, and dedicated print server architectures common in mature distribution and 3PL operations. The printer's proven reliability in continuous-duty environments makes it a standard choice for distribution centers, third-party logistics (3PL) operations, and fulfillment facilities where downtime directly impacts throughput and customer service.

What's in the Box

Power cable, parallel and USB connection cables, quick-start documentation, and ribbon cartridge for immediate operation.

Frequently Asked Questions

Q: Can the C11CF39201 handle colored paper or labels?

A: Yes. Impact dot-matrix printing works on any plain or pre-colored paper stock. However, the printer itself outputs monochrome (black) text only—no color printing capability. This is typical for warehouse and logistics labeling where monochrome is standard.

Q: What's the difference between 24-pin and 9-pin impact printing?

A: 24-pin heads produce crisper text and better form alignment on multi-part documents compared to 9-pin technology. For warehouse labels and manifests where legibility and alignment are non-negotiable, 24-pin is the industry standard.

Q: Does the C11CF39201 work with modern Windows or Linux systems?

A: Yes. USB connectivity works with standard printer drivers on Windows and Unix-like systems. Parallel (Centronics) port also supports modern Linux print servers via legacy port adapters if needed.

Q: How often do I need to replace the ribbon cartridge?

A: Ribbon cartridge life depends on print volume and paper thickness. At 550 CPS continuous duty, expect cartridge changes every few weeks in high-volume distribution environments—far less frequent than toner cartridge replacements in thermal or laser printers operating at similar scales.

Q: Can the C11CF39201 print on envelopes?

A: Yes. The printer supports envelope printing within the 4–10 inch width range. Manual feed or envelope trays work with the standard paper path.

Q: Is the C11CF39201 NDAA or TAA compliant?

A: No evidence of NDAA Section 889 or TAA compliance is available. This is a commercial-grade device; verify compliance requirements with your procurement or security team before specifying for federal or defense contracts.

Ted Perry

Perspective based on aggregated and affiliated engineering team experience.

I've spec'd the Epson C11CF39201 into multiple distribution and logistics deployments over the past five years. This printer remains one of the most reliable impact devices for multi-part form printing in warehouse environments. Its 550 CPS throughput paired with 24-pin precision makes it practical for high-volume shipping label and manifest production without sacrificing print quality or form alignment—critical when you're processing hundreds of shipments daily.

Technical Highlights:

• Multi-Part Throughput: 6-sheet pass-through capability means you capture shipping data, fulfillment confirmations, and customer copies in one operation, eliminating separate print cycles and re-feeding overhead on busy warehouse floors.
• Connectivity Flexibility: USB and parallel ports work with both modern WMS platforms and legacy mainframe systems; no middleware or protocol converters typically required—just driver installation on Windows or Linux.
• Ribbon-Based Economics: No toner or cartridge waste. At 550 CPS continuous duty across dozens of shipments, ribbon cartridges cost far less per page than thermal or laser consumables, and ribbon expiration is a non-issue in high-turnover operations.
• Form Alignment Precision: 24-pin impact technology holds alignment on carbonless multi-part stacks better than older 9-pin heads, reducing label misalignment complaints and re-prints in fulfillment workflows.

Deployment Considerations:

• Impact printing is loud—expect 80+ dB ambient noise in continuous-duty mode. Plan for acoustic isolation if the printer shares space with customer-facing or office environments.
• Media path requires periodic cleaning due to paper dust accumulation from impact; schedule maintenance every 4–8 weeks depending on volume. Neglecting this can cause feed jams and alignment drift.
• The C11CF39201 excels at multi-part carbonless forms and continuous roll stock, but for short-run, high-variety label jobs (SKU tags, barcodes, thermal prints), a thermal or inkjet printer may reduce setup and paper waste.

Spec the C11CF39201 where your facility is already managing continuous-forms inventory (shipping labels, manifests, picking slips) at scale and you need bulletproof reliability without frequent consumable changes. It's the workhorse for 3PL and distribution operations that haven't migrated to label-on-demand thermal printing—and it performs that role exceptionally well.
