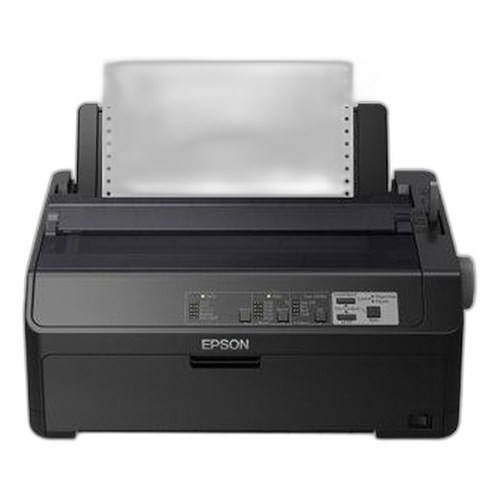

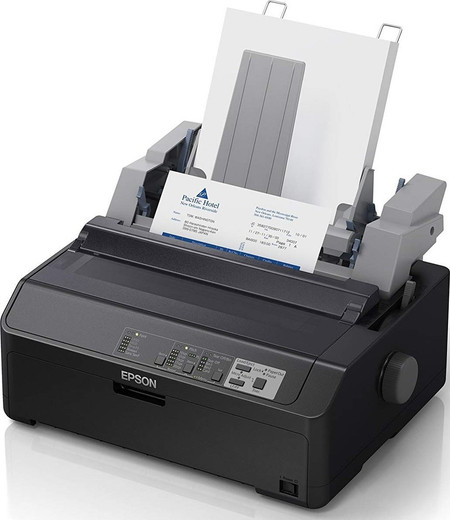

Epson C11CF37201 FX-890II 9-Pin Impact Dot-Matrix Printer
Overview
The Epson C11CF37201 FX-890II is a 9-pin impact dot-matrix printer engineered for high-volume, continuous-form printing in warehouse operations, logistics centers, and order fulfillment facilities. This monochrome impact printer delivers reliable performance on multi-part carbon-backed documents where speed and durability matter more than color or network convenience. The FX-890II combines proven dot-matrix technology with dual connectivity options—parallel and USB—to integrate into both legacy systems and contemporary PC environments without requiring proprietary drivers or complex setup.
Key Features
- 9-Pin Printhead Design: The 9-pin hammer bank generates consistent strike force across the full print width, enabling prints through up to 6 sheets of carbon-backed paper in a single pass. This matters in warehousing because it eliminates multiple printer passes for multi-part invoices, packing slips, and shipping documentation—reducing labor and jam risk on high-volume runs.
- 144 × 240 dpi Resolution: Maximum print resolution of 144 horizontal × 240 vertical dpi produces legible text and barcode-readable graphics without sacrificing throughput. At this resolution, standard warehouse documents—invoices, bills of lading, picking lists—remain sharp and scannable even on worn ribbon or slightly aged forms.
- Continuous Media Range (4–10 inches): Accepts continuous roll paper from 4 inches to 10 inches in width, plus standard cut-sheet media up to 10.12 × 14.29 inches, and envelope sizes. This flexibility avoids the cost and hassle of maintaining separate printers for different form widths—one printer handles standard letterhead, narrow labels, and wide warehouse logs.
- Monochrome Impact Output: Black-on-white printing on continuous roll and multi-part carbon-backed forms. No color cartridges, no thermal elements—just a ribbon that costs cents per spool and lasts through thousands of pages. Reduces consumable budgets and downtime compared to thermal or inkjet alternatives.
- Parallel and USB Connectivity: Dual interface options mean the C11CF37201 plugs into legacy parallel-port warehouse management systems without adapters, or integrates directly into modern USB-equipped PCs and label-printing servers. No network complexity, no DHCP headaches, no firmware updates—just plug, load driver (or use native emulation), and print.
- Emulation Support (EPSON ESC/P, Okidata Microline, IBM PPDS): The printer understands three industry-standard command sets, so existing warehouse software written for HP LaserJets, Okidata ML models, or older Epson printers often works with zero code changes. This reduces integration time and risk when replacing aging fleets.
- 3-Year Factory Warranty: Covers parts and labor, providing peace of mind for high-utilization deployments. In a 24/7 warehouse environment, warranty coverage on mechanical components—the printhead, paper-advance motor, ribbon drive—is tangible risk mitigation.
Integration & Compatibility
Deployment flexibility is a defining trait. The C11CF37201 works with legacy parallel-port warehouse management systems still running on Windows XP–era terminals, and also integrates directly into modern label-printing software (such as shipping label applications on current Windows and Linux servers) via USB. Because it emulates EPSON ESC/P, Okidata Microline, and IBM PPDS protocols, custom warehouse scripts and label-printing applications often recognize the printer without modification. This backward-compatible design is invaluable in facilities transitioning from older dot-matrix fleets or maintaining parallel systems for business continuity.
When to Choose a Different Model
If your facility requires color output, barcode-quality graphics, or network connectivity over Ethernet, the impact dot-matrix design is not the right fit—consider a color thermal or laser alternative. If you need to print on plain sheet media only (no multi-part forms), a faster, more compact thermal or laser printer will be more economical. The C11CF37201 is purpose-built for high-volume continuous-form environments; it is not a general-purpose office printer.
Frequently Asked Questions
Q: Can the Epson C11CF37201 print on plain paper, or only continuous forms?
A: The C11CF37201 supports both continuous roll media (4–10 inches wide) and cut-sheet paper sizes (up to 10.12 × 14.29 inches), as well as envelopes. However, it is optimized for continuous-form feeding; loading cut-sheet media requires manual feed adjustment and is slower than running a continuous roll.
Q: What is the maximum number of carbon-backed sheets the C11CF37201 can print through in one pass?
A: The 9-pin printhead is rated to print through up to 6 sheets of carbon-backed paper simultaneously, making it suitable for multi-part invoices, packing slips, and warehouse documentation without running the same form multiple times.
Q: Does the C11CF37201 require special drivers or software to operate?
A: The printer supports EPSON ESC/P, Okidata Microline, and IBM PPDS emulations, so existing warehouse software written for compatible printers often works without modification. For modern systems, standard Windows and Linux drivers are available; no proprietary software is required.
Q: What connectivity options does the C11CF37201 offer?
A: The printer features both parallel (DB-25) and USB connectivity, allowing deployment in legacy parallel-port systems or modern USB-equipped PCs and servers. There is no built-in Ethernet or network interface.
Q: Is the ribbon user-replaceable, and how often does it need replacement?
A: Yes, the ribbon is a standard replacement item. Ribbon life depends on usage, but typical industrial ribbons last through thousands of pages at a cost of a few dollars each—significantly lower consumable expense than thermal or inkjet alternatives.
Q: What is covered under the 3-year warranty?
A: The factory warranty covers parts and labor for manufacturing defects. It does not cover consumables (ribbon, paper) or damage from misuse or environmental neglect. Coverage includes mechanical components such as the printhead, paper-advance motor, and drive electronics.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
I have deployed the Epson C11CF37201 FX-890II in several warehouse and logistics operations over the past few years. This is a purpose-built, no-frills impact printer designed for environments that rely on multi-part continuous forms—order fulfillment centers, distribution hubs, and shipping departments. The C11CF37201 does one job and does it reliably: print fast on carbon-backed documents without jamming, without color complexity, and without network overhead.
Technical Highlights:
- 9-Pin Impact Printhead + 6-Sheet Capacity: The 9-pin design is proven technology—every strike is consistent, and the ability to print through 6 carbon-backed sheets in a single pass eliminates the labor cost and jam risk of running forms multiple times. In a 24/7 fulfillment center, that efficiency difference translates to thousands of dollars per year in reduced manual handling and printer downtime.
- 144 × 240 dpi Resolution: Adequate for barcode scanning and legible text on shipping labels and invoices. Not photo-quality, but that is not the use case. Barcodes remain scannable even on worn ribbon or faded forms—a critical factor when your picking and shipping software depends on reliable label reads.
- Dual Connectivity (Parallel + USB): The combination of parallel and USB interfaces means the C11CF37201 bridges legacy and modern infrastructure without adapters or network configuration. I have seen this printer drop into a 15-year-old warehouse system with parallel-port terminals and also integrate directly into a modern label-printing server over USB—no driver hell, no firmware updates, just plug and print.
- Consumable Cost: Ribbon spools cost a few dollars each and last thousands of pages. Compare that to thermal printer ribbons or inkjet cartridges—the impact model's lifetime cost is substantially lower in high-volume environments.
Deployment Considerations:
- Continuous-Form Optimization: The C11CF37201 is optimized for continuous roll media. If your facility needs to print mixed plain-sheet and form media dynamically, you may end up running a separate sheet-fed printer anyway, which complicates your equipment footprint. Decide upfront whether your forms are continuous-only before purchasing.
- No Network Connectivity: There is no Ethernet or IP interface. If your warehouse management system requires network-based printer discovery or remote status monitoring, this printer will not satisfy that requirement. You would need a legacy parallel-to-network converter or USB server, which introduces complexity.
- Noise and Maintenance: Impact printers are louder than laser or thermal alternatives—expect ~80 dB in operation. Mechanical components (printhead, ribbon drive) require routine cleaning and eventual replacement. In a noisy warehouse, that is not a problem; in a quiet office, it is.
The C11CF37201 is the right choice if your facility runs 1000+ multi-part forms per shift, you maintain parallel-port or USB-connected label printing infrastructure, and you need proven reliability with minimal consumable cost. It is not a general-purpose office printer, and it is not a networked solution. Deploy it where it belongs—high-volume, continuous-form warehousing—and it will deliver years of dependable service.
