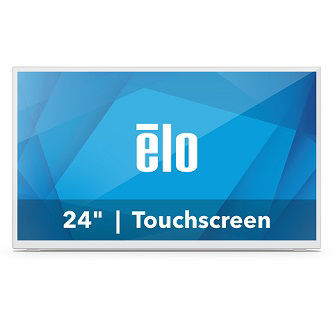

ELO Touch E266179 Elo 2470L 24-inch Full HD Touch Monitor
The ELO Touch E266179 is a 24-inch retail-grade touchscreen monitor designed for point-of-sale, self-service kiosks, and interactive signage environments. Featuring a projected capacitive 10-touch interface with anti-glare glass and a zero-bezel form factor, this display integrates seamlessly into compact counter and wall-mounted installations. USB controller connectivity and support for VGA, DisplayPort, and HDMI video inputs provide flexibility across legacy and modern POS host systems.
Key Features
- Projected Capacitive 10-touch: Simultaneous multi-touch input (up to 10 fingers). Glove-compatible operation and high responsiveness reduce training time and improve transaction speed in high-volume retail environments.
- 24-inch Full HD (1920×1080): 1080p resolution on a wide 16:9 aspect ratio delivers clarity for menu graphics, payment prompts, and product imagery without pixel scaling artifacts.
- Anti-glare Coating: Reduces light reflection and surface gloss, critical in bright retail locations and outdoors-facing window displays where specular reflection would degrade usability.
- Zero-bezel Design: Minimal side bezels enable seamless tiling of multiple displays and create a unified visual presentation for multi-unit kiosk arrays and digital signage walls.
- USB Controller: Stand-alone USB connection to host — no additional software drivers required on Windows, macOS, or Linux. Plug-and-play touch input across diverse POS platforms and OS versions.
- Triple Video Input (VGA/DP/HDMI): VGA for legacy systems, HDMI for modern consumer electronics, DisplayPort for high-bandwidth applications. Input selector avoids costly cable rework when migrating hosts or running dual-display configurations.
- Collapsible Stand: Integrated stand angles and folds for transportation and compact storage. Supports VESA mounting for wall, arm, or kiosk enclosure integration without stand obstruction.
The projected capacitive touch technology on the 2470L delivers consistent response across the full glass surface, even when exposed to liquids, dust, and gloved handling — common in retail and hospitality checkouts. Unlike resistive or infrared systems, capacitive sensing requires no physical pressure and inherently supports object rejection, reducing false touches from nearby drinks or merchandise contact.
Full HD resolution at 24 inches yields approximately 92 PPI, sufficient for sharp menu text and payment form rendering without oversized UI elements that waste screen real estate. The anti-glare treatment and 16:9 aspect ratio are intentional retail choices: gloss screens cause showroom reflections that confuse customers, and 4:3 aspect ratios force letterboxing on modern web-based POS and kiosk applications.
Video input flexibility extends the monitor's operational lifespan across host hardware refreshes. Many retail chains operate multi-generational POS terminals — legacy serial/parallel systems still on VGA, mid-cycle Windows 10 systems on HDMI, and newer BYOD or cloud-tethered kiosks favoring DisplayPort or USB-C with alt-mode adapters. The 2470L accommodates all three without adapter daisy-chaining or port multiplexers.
ELO Touch touch displays are built for the hospitality, retail, and quick-service restaurant verticals where mean time between failure is measured in operational dollars per day. The E266179 carries manufacturer warranty and is sourced direct from the manufacturer or US channel partner — no grey-market units, full factory support path. VESA 100×100 mounting bracket compatibility enables integration into custom kiosk shells, wall-mount arms, and POS stand assemblies without proprietary adapter complexity.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've specified hundreds of retail touchscreen installations, and the 2470L occupies a pragmatic middle ground between consumer-grade monitors and industrial-spec display systems. The projected capacitive technology is the real workhorse here — it's immune to the small spills, dust accumulation, and gloved input that kill resistive screens within 18 months in a high-traffic environment. We've deployed the E266179 in quick-service restaurants, convenience store checkout stands, and self-service kiosk installations where uptime is non-negotiable. The USB controller is a quiet engineering win: integrators don't need to hunt down proprietary drivers or worry about OS compatibility patches breaking touch input on Tuesday afternoon. Just USB, any OS, works. Multi-touch simultaneous input matters more than people expect — when a customer's hand slips across the glass mid-transaction, the capacitive system rejects the spurious contact and preserves the transaction state. Resistive screens in the same scenario often register ghost clicks and require a restart.
Technical Highlights:
- Projected Capacitive 10-touch with glove mode: Simultaneous multi-finger input without pressure sensitivity — the architecture that underpins modern smartphone touchscreens, proven at scale. Glove-compatible operation is critical in food service and cold-storage environments where staff wear thick gloves. Many resistive monitors fail entirely with gloved input.
- Full HD (1920×1080) at 24 inches: 92 PPI density keeps payment form fields, menu text, and product thumbnails sharp without unnecessary overscan or UI scaling that complicates POS software layout. This resolution-to-size ratio is the retail standard for a reason.
- Anti-glare glass + 5ms gray-to-gray response: The anti-glare coating eliminates the mirror-image problem in sunlit window displays and brightly lit checkout areas. Response time of 5ms prevents ghosting during rapid gesture input, which matters for signature capture and pinch-zoom interactions.
- Triple video input (VGA/HDMI/DP): Institutional flexibility — legacy POS terminals on VGA, modern systems on HDMI, and cloud-tethered or Citrix-client kiosks on DisplayPort. No forced hardware refresh cycle when adding one unit to an aging estate.
- USB standalone controller: No proprietary driver stack, no OS version mismatches, no certificate expiration issues. Touch input works on Windows XP through Windows 11, Ubuntu, macOS — effectively transparent to the host application.
Deployment Considerations:
- USB touchscreen controller is a separate device on the USB bus — reserve at least one USB port on the host (many POS terminals have limited USB availability). If the host is fully loaded, a powered USB hub adds minimal complexity but introduces a single point of failure. Test the specific POS system in advance.
- Projected capacitive requires capacitive-compatible touch software — most modern web-based and native POS applications (NCR, Micros, Square, Toast, Toast, TouchBistro, PAR) are built for this. Older embedded DOS or Windows CE POS systems may not support multi-touch gestures but will still recognize basic single-touch input as mouse movement.
- Zero-bezel form factor means the glass extends to the physical edge. Be cautious during installation and transport — corner impacts or tool slips during mounting can crack the bezel-free glass. Use soft padding and frame-first handling.
- Anti-glare coating reduces maximum brightness slightly compared to glossy panels — if the installation has extreme backlighting (direct sunlight for 8+ hours), confirm brightness specs (typical 250 nits) are adequate. Most indoor retail and restaurant environments are fine.
- VESA 100×100 mounting is standard — verify the final kiosk or arm assembly offers VESA compatibility before custom fabrication. Proprietary quick-release mechanisms sometimes interfere with VESA alignment.
The E266179 is the right choice for system integrators and retail operators building or upgrading multi-unit POS installations where touch durability and driver-free connectivity matter more than cutting-edge resolution. It's a mature, proven platform — no surprises, long production runs, and parts availability. For small single-unit kiosk projects or bespoke installations requiring 4K or curved displays, consider alternatives. For a 50-store rollout, the 2470L's simplicity and repair-path scalability make it the economic winner. See our ELO Touch catalog for additional display options.
