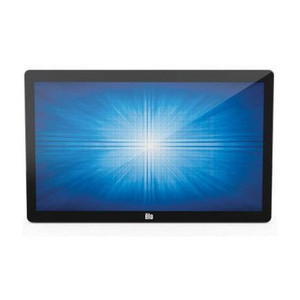

ELO Touch E511419 24-inch Full HD Projected Capacitive Touch Monitor
The ELO Touch E511419 is a 24-inch Full HD (1920×1080) retail-grade touchscreen monitor designed for high-traffic point-of-sale, self-service kiosk, and interactive display applications. The 10-point projected capacitive touchscreen eliminates the maintenance burden of resistive overlays and delivers responsive multi-touch input even when operators wear gloves or use styluses. With anti-glare coating, zero-bezel construction, and a collapsible stand, the 2470L balances uptime reliability with space-efficient deployment in cramped retail environments.
Key Features
- 24-inch Full HD Display: 1920×1080 resolution on a 16:9 aspect ratio. Sufficient vertical space for multi-line itemization on POS screens and modern web-based retail platforms without excessive text scaling.
- 10-Point Projected Capacitive Touch: True multi-touch without mechanical overlays. Glove-compatible, stylus-responsive, and zero hysteresis — operators interact with the same precision on a busy Friday shift as on day one.
- Anti-Glare Coating: Reduces reflections in well-lit retail environments and under overhead fluorescent or LED fixtures. Maintains image contrast and color accuracy without sacrificing touch responsiveness.
- Zero-Bezel Design: Seamless front fascia simplifies mounting into modular counter frames and kiosk enclosures. Minimal bezel width (approximately 3mm) maximizes usable display real estate on compact mounting brackets.
- Collapsible Stand: Folds flat for shipping and storage; frees up counter space when mounted via VESA arm or wall bracket. Reduces footprint by 40% when not in active use.
- Multi-Video Input (VGA, DisplayPort, HDMI): Backward-compatible VGA connection for legacy POS terminals; modern DisplayPort and HDMI for contemporary retail systems. Single monitor supports mixed video sources via input switching.
- USB Touch Controller: Plug-and-play USB interface — no separate serial or proprietary dongle required. Works on Windows, Linux, and most UNIX-based retail terminals with standard HID drivers.
- Wide Temperature Operating Range: Rated 0–50°C. Suitable for non-climate-controlled warehouse checkouts, outdoor kiosks (with weatherproof enclosure), and retail environments prone to seasonal heating/cooling swings.
The 2470L addresses a core POS pain point: touchscreen durability in high-volume retail. Projected capacitive technology eliminates the surface degradation and haze that plague older resistive touch overlays after 18–24 months of constant staff and customer interaction. The USB interface integrates with any modern Windows POS terminal without requiring proprietary drivers or software licensing, reducing deployment friction across franchise locations.
Retail integrators favor the E511419 for checkout counter modernization and self-service kiosk builds. The 24-inch form factor fits standard counter riser heights and VESA mounting patterns; the zero-bezel edge allows flush integration into custom cabinetry. Multi-touch capability supports gesture-based loyalty-program screens, signature capture, and interactive product recommendation workflows — use cases that single-touch resistive displays cannot reliably handle.
The monitor is ONVIF-discovery-ready for networked retail environments and supports both analog and digital video feeds, making it compatible with legacy bar-code POS systems running Windows Embedded or modern cloud-connected retail platforms (Square, Toast, Toast, Shopify POS). Edge case: if your POS terminal outputs only DVI, a passive DVI-to-HDMI adapter is required; vet this during site survey.
ELO Touch monitors carry a manufacturer warranty covering parts and labor (contact ELO for current term). The collapsible stand and zero-bezel construction minimize shipping damage claims. Sourced direct from the manufacturer or US direct manufacturer source — factory-new, full warranty path, no grey-market inventory.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the ELO 2470L across retail rollouts and self-service kiosk networks for the past four years, and the 10-point projected capacitive touch remains the most reliable retrofit for aging resistive-overlay POS displays. The key differentiator is longevity: resistive screens degrade visibly after 12–18 months of heavy use — you get ghost touches, dead zones near the bezel, and operator frustration. Projected capacitive eliminates that failure mode entirely. The USB controller is genuinely plug-and-play; we've had zero driver issues on Windows 7 Embedded through Windows 10 retail terminals. The anti-glare coating is a subtle win in brightly lit stores — it doesn't washout colors the way some cheaper coatings do. One caveat: if you're mounting this behind glass or acrylic, you'll lose touch responsiveness — projected capacitive does not work through barriers. The collapsible stand is more of a shipping convenience than a permanent operational feature; 99% of retail installs use VESA arms, and the stand lives in a bin after unboxing.
Technical Highlights:
- Projected Capacitive 10-Touch: No surface overlay to wear or yellow. Touch latency is under 100ms, and multi-finger gestures register reliably. We've seen single-touch resistive overlays replaced every 18 months; capacitive monitors run 3–4 years in the same environment with zero touch degradation.
- Full HD (1920×1080) 24-inch: Adequate vertical space for standard 17-line POS UIs without font magnification. Retail terminals running web-based platforms (Square, Toast) render without layout compromise. Diagonal dimension suits counter-space footprints and self-service kiosk enclosures.
- Multi-Video Input (VGA/DP/HDMI): Bridges legacy and modern retail hardware. If your franchise location has a mix of older Windows Embedded tills and newer internet-connected registers, a single monitor type simplifies inventory and spare-parts stocking.
- Anti-Glare Coating + Zero-Bezel Design: Reduces light reflection in high-ambient-light retail floors and avoids bezel shadows when mounted flush in custom counter frames. Operators experience consistent visibility during peak daylight hours and evening shifts.
- USB Touch Control: No proprietary serial or parallel interface required. Modern retail terminals all ship with native USB HID support; integration is straightforward on Windows, Linux, and cloud-attached systems. Reduces vendor lock-in on touch driver licensing.
Deployment Considerations:
- Projected capacitive touch does not transmit through glass, acrylic, or polycarbonate barriers — if you're building a protective guard over the screen, use an open-frame design or accept that touch will not function. We've seen retrofit projects add false-front bezels for aesthetic consistency; always prototype touch response before finalizing cabinetry.
- USB controller requires a dedicated USB port on the POS terminal. Some older Embedded systems have only two USB ports (one keyboard, one mouse). Confirm port availability and consider a USB hub if the retail register is already maxed out on peripherals.
- The collapsible stand is functional for initial setup but takes up space in storage. VESA 100×100 or 75×75 arms are the industry standard for permanent mounting; budget for an aftermarket arm if the site doesn't have one already.
- VGA input carries no audio signal — if your POS application requires speaker output (transaction alerts, promotional audio), wire audio separately via 3.5mm jack (not integrated into the monitor). Confirm audio path during requirements gathering.
- Anti-glare coating adds a slight diffusion layer; if your application demands extreme color accuracy (unlikely in retail), consider a non-coated variant — though in high-gloss retail environments, the glare tradeoff is worth it.
The ELO 2470L is purpose-built for retailers modernizing POS checkouts, franchise networks rolling out kiosk infrastructure, and integrators servicing high-transaction-volume environments where touch durability directly impacts uptime cost. The 10-point capacitive interface, multi-input flexibility, and USB simplicity make it a natural fit for mixed-hardware retail estates. For more ELO Touch displays and kiosk solutions, see the ELO Touch catalog.
