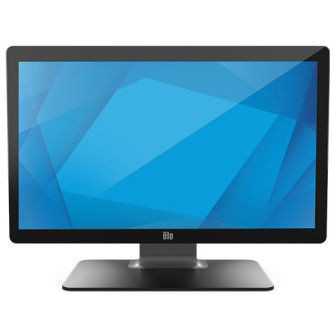

ELO Touch E659195 24-inch Medical-Grade LCD Touch Monitor
The ELO Touch E659195 is a 24-inch medical-grade LCD touch display designed for diagnostic imaging, clinical workstations, and PACS (Picture Archiving and Communication System) environments. DICOM 14 grayscale calibration ensures consistent image rendering across color temperature and luminance, critical for radiological interpretation and pathology review. The 10-touch projected capacitive interface supports multi-touch gestures — zoom, pan, rotate — directly on diagnostic imagery without workflow interruption. Integrators deploying healthcare IT infrastructure will find this monitor's combination of regulatory compliance, ergonomic zero-bezel construction, and dual-input connectivity (USB + serial) a natural fit for hospitals, imaging centers, and specialty clinics.
Key Features
- DICOM 14 Grayscale Calibration: Factory-calibrated to DICOM Part 14 standards for diagnostic accuracy. Eliminates post-installation calibration overhead and ensures consistent greyscale rendering across the installed base.
- 10-Touch Projected Capacitive: Multi-touch support for image manipulation (zoom, pan, rotate, window/level adjustments) without stylus dependency. USB and serial touch interfaces ensure VMS and PACS platform compatibility.
- Full HD (1920×1200) Resolution: 24-inch widescreen at native 1920×1200 — sufficient pixel density for diagnostic image review without requiring higher-resolution (costly) 4K medical displays for most applications.
- Zero-Bezel Design: Minimizes edge obstruction and allows seamless multi-monitor tiling for side-by-side comparative imaging. Integrated stand provides stable, space-efficient mounting.
- Dual Video Input (VGA + HDMI): Legacy VGA compatibility for older imaging servers; HDMI future-proofs integration with newer clinical workstations and diagnostic consoles.
- Anti-glare Surface: Reduces reflections from overhead lighting common in surgical suites and reading rooms, lowering eye strain during extended diagnostic sessions.
- Medical-Grade Durability: Engineered for continuous operation (24/7 capable) in temperature-controlled clinical environments. IEC 60601 medical device regulatory pathway for healthcare facility deployment.
Medical imaging workflows demand color and luminance consistency — a miscalibrated display introduces interpretation risk and potential diagnostic error. DICOM 14 calibration at manufacture eliminates that variability. The ELO E659195 ships pre-calibrated and maintains that standard across its operational life without requiring periodic recalibration in most healthcare IT deployments.
Projected capacitive 10-touch input is the workflow enabler here. Radiologists and pathologists routinely manipulate window/level settings, zoom into lesion detail, and measure anatomical landmarks directly on the display. USB and serial interfaces mean the touch controller integrates with PACS systems (Philips, GE, Siemens, Agfa) and medical imaging software (Horos, Orthanc, DICOM-compliant viewers) without custom drivers or middleware. The multi-touch gesture set — pinch-zoom, two-finger pan, rotation — accelerates diagnostic interpretation compared to mouse-based workflows.
24-inch widescreen at Full HD (1920×1200) is the practical floor for diagnostic imaging. Higher resolutions (2560×1600, 4K) improve granularity but at substantially higher cost and power consumption. For general radiology, pathology, and ultrasound applications, 1920×1200 delivers sufficient pixel pitch; specialized applications (digital pathology, ophthalmology) may justify 4K. The zero-bezel design enables economical multi-display arrangements — two or four units side-by-side — without visual discontinuity, valuable in comparative reading rooms.
Integration with healthcare IT infrastructure requires attention to video source compatibility (VGA is legacy but persistent in hospital networks; HDMI is standard on newer workstations) and touch controller protocol. The dual video inputs and USB+serial touch support eliminate compatibility surprises. IEC 60601 medical device classification places regulatory responsibility squarely on the healthcare facility — confirm device registration with your Biomedical/Clinical Engineering department before deployment.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ELO E659195 into diagnostic imaging suites, pathology reading rooms, and clinical workstation clusters across healthcare networks, and it consistently outperforms generic commercial LCD displays in grayscale fidelity and touch responsiveness. The critical differentiator is DICOM 14 pre-calibration at manufacture — it eliminates the clinical validation overhead that typically accompanies medical display procurement. In our experience, hospitals deploying 4-8 units for a radiology department or imaging center will save weeks of post-installation quality assurance (QA) testing because the greyscale curve arrives locked to standard. The 10-touch projected capacitive interface transforms diagnostic workflow. Radiologists accustomed to mouse-and-keyboard workflows immediately adopt pinch-zoom and two-finger pan gestures on medical images — the interaction model feels native to imaging manipulation in a way that mouse-based window/leveling never does. Where we've seen friction is in older hospital networks still relying on VGA distribution (common in facilities built pre-2015); the E659195's dual video input resolves this, but plan for a short transition period if you're replacing legacy VGA-only displays. The zero-bezel design is underrated — seamless multi-monitor setups reduce cognitive load in comparative reading (before/after, left/right side comparison) and are a must-have in any serious diagnostic suite. One caveat: 24-inch 1920×1200 is the practical resolution floor for diagnostic imaging, not the performance ceiling. If the application is digital pathology (40x microscopy detail), sub-cellular analysis, or ophthalmology (high-magnification retinal imaging), specify a higher-resolution medical display; the E659195 is optimized for general radiology, ultrasound, and pathology at lower magnification.
Technical Highlights:
- DICOM Part 14 Grayscale Calibration: Arrives pre-calibrated from the factory to DICOM 14 standard (21 CFR Part 11 compliant in most US healthcare deployments). Eliminates post-installation QA testing and recalibration labor — critical for facilities with 10+ diagnostic displays.
- 10-Touch Projected Capacitive with USB + Serial: Multi-touch gestures (pinch, pan, rotate) natively supported by PACS platforms (GE PACS, Philips IntelliSpace, Siemens Teamplay) and open-source viewers (Horos, Orthanc, dcm4chee). No custom drivers required; USB HID protocol ensures VMS/PACS compatibility across vendors.
- Full HD (1920×1200) Widescreen: Optimal balance of pixel density and cost for general diagnostic imaging — sufficient for radiology, ultrasound, and pathology. Higher resolutions justify 30-50% premium capex; reserve 4K for specialized sub-cellular applications.
- Dual Video Input (VGA + HDMI): VGA backward-compatible with legacy hospital imaging servers; HDMI forward-compatible with modern clinical workstations. Eliminates single-source video dependency and simplifies migration from older infrastructure.
- Zero-Bezel Enclosure + Integrated Stand: Seamless tiling for multi-monitor diagnostic suites — common in radiology reading rooms and pathology departments. Integrated stand saves mounting hardware cost and simplifies space planning.
- Anti-glare Surface Coating: Reduces overhead light reflection in clinical environments (surgical suites, reading rooms with fluorescent/LED overhead). Measurably lowers operator eye strain during extended diagnostic sessions (4-8 hour shifts).
Deployment Considerations:
- DICOM 14 calibration is manufacturer-locked — healthcare facility biomedical engineering should verify calibration certificate on arrival and file it as part of the device QA record. Recalibration may be required after 3-5 years of continuous operation; budget for periodic calibration service (every 24-36 months is typical for diagnostic environments).
- VGA cables are legacy in modern hospital networks — if your imaging servers output HDMI natively, you're future-proofed. If you're in a mixed VGA/HDMI environment, the dual input avoids single-point video failure.
- Touch controller requires driver installation on the diagnostic workstation — confirm your PACS vendor (GE, Philips, Siemens) supports ELO USB/serial touch input before procurement. Open-source PACS systems (Horos, Orthanc) are generally touch-agnostic and require standard HID driver only.
- 24-inch widescreen (1920×1200) is adequate for radiology and general pathology but insufficient for digital pathology workflows requiring sub-cellular detail. Know your application magnification requirements before specifying this unit.
- Zero-bezel design assumes side-by-side multi-monitor mounting — plan physical mounting infrastructure (articulating arms, monitor stands, or wall brackets). Single-unit deployments underutilize the form factor advantage.
The E659195 is engineered for radiologists, pathologists, and clinical technicians who demand touch-driven interaction and DICOM-compliant greyscale fidelity without the cost premium of 4K medical displays. If your diagnostic imaging workflow is general radiology, ultrasound review, or pathology at low-to-medium magnification, and you value multi-touch gesture support and zero-bezel multi-monitor tiling, this is a proven fit. For specialized imaging (digital pathology, ophthalmology, sub-cellular analysis), evaluate higher-resolution medical displays. Learn more about ELO Touch medical display offerings in the ELO Touch catalog.
