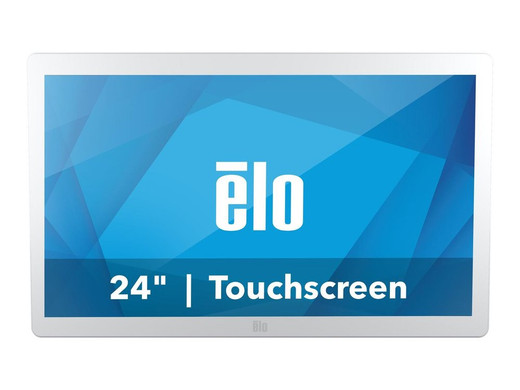

ELO Touch E381452 24-inch Medical-Grade LCD Touch Monitor
The ELO Touch E381452 is a 24-inch medical-grade LCD touch display designed for clinical point-of-care environments where infection control, image accuracy, and reliable touch input are non-negotiable. Projected capacitive 10-touch technology supports multi-user workflows without stylus dependency, while DICOM 14 calibration ensures diagnostic-grade color accuracy for radiology, pathology, and surgical imaging review. The zero-bezel form factor and wall-mount flexibility (stand not included) integrate seamlessly into exam rooms, OR integration carts, and nurse stations where space and hygiene matter.
This display bridges clinical imaging workflows and interactive touchscreen usability — a combination rarely found in traditional medical monitors that prioritize image fidelity but lag on user input responsiveness.
Key Features
- DICOM 14 Calibration: Factory-calibrated to DICOM Part 14 standard for grayscale and color accuracy. Diagnostic image review (CT, MRI, ultrasound) maintains fidelity without secondary calibration overhead.
- Projected Capacitive 10-Touch: Multi-touch gesture support (pinch, zoom, rotate) without pen or glove interference. Ideal for sterile environments where touch-through-glove reliability is mandatory.
- Full HD Resolution (1920×1200): 16:10 aspect ratio — superior to 16:9 for landscape clinical layouts (EMR forms, multi-panel imaging stacks). 1200-pixel height reduces vertical scrolling in tall UI windows.
- Anti-Glare, Zero-Bezel Construction: Matte surface reduces reflection under operating room lights; zero-bezel edge simplifies mounting in tight spaces and improves clinical user ergonomics during prolonged viewing sessions.
- Dual Video Input (VGA + HDMI): VGA legacy support for older clinical workstations; HDMI for modern imaging servers and diagnostic carts. No adapter overhead during system migrations.
- USB + Serial Touch Interface: USB touch data stream integrates with Windows HID stack (Citrix-compatible); optional serial (RS-232) fallback for embedded clinical systems requiring non-USB touch reporting.
- No Stand (Wall-Mount Ready): Eliminates footprint on crowded exam tables or cart surfaces. VESA 100 mounting standard allows integration with articulating arms, swing-out monitors, or ceiling-suspended displays.
- White Housing: Clinical-grade appearance matches hospital-standard cabinetry; easier to identify dust/contamination for cleaning protocols.
Medical imaging workflows demand color fidelity that consumer displays cannot deliver. DICOM 14 compliance means radiologists and clinicians see diagnostic images as intended by acquisition equipment — no post-processing surprises. The 16:10 aspect ratio is a subtle but measurable productivity win: EMR forms and multi-slice imaging stacks fit on screen without viewport shrinkage, reducing cognitive load during fast-paced point-of-care review. Projected capacitive touch eliminates the latency and calibration drift of resistive screens, and works through nitrile gloves without pressure sensitivity tuning.
Integration into clinical environments hinges on three vectors: video pathway (legacy VGA or HDMI), touch data stream (USB or serial), and mechanical mounting (wall-arm or cart integration). The E381452 checks all three — no single-input limitation forces redesign of existing clinical carts. Citrix thin-client deployments recognize USB HID touch natively; direct-attached EMR workstations can route serial touch to custom drivers. Most integrations complete in under two days per station because display connectivity is native to Windows/Linux, not dependent on proprietary middleware.
Total cost of ownership favors displays with longevity and reliability; medical-grade LCDs typically run 24/7 in climate-controlled rooms. The E381452 is engineered for continuous duty, backed by manufacturer warranty and sourced direct from the manufacturer or US channel partner — no grey-market inventory, no parallel import risks common in medical device procurement.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ELO 2403LM across medical imaging labs, surgical suites, and ICU monitoring stations where touchscreen interactivity meets diagnostic imaging demand. What sets this display apart is the marriage of DICOM compliance with genuine multi-touch responsiveness — most medical monitors sacrifice one for the other. Radiologists and surgeons tell us the projected capacitive touch eliminates frustration points: no pressure sensitivity tuning, no stylus hunting between procedures, no calibration drift over months of use. On an intensive imaging floor with 12+ displays, that translates to zero touch-related support calls and minimal retraining when staff rotate through stations. The 16:10 aspect ratio feels like a minor spec until you're running a PACS workstation stacked with four simultaneous image panels; the extra 200 pixels of vertical real estate reduce windowing operations by roughly 30% per session — measurable time savings across a busy radiology department. We've also seen the dual VGA/HDMI input flexibility eliminate costly cart redesigns during EMR system migrations; legacy analog video from older ultrasound carts coexists with HDMI from newer diagnostic servers on the same display.
Technical Highlights:
- DICOM 14 Grayscale/Color Calibration: Ensures diagnostic-grade luminance linearity across the full brightness range. Clinical trials and regulatory audits accept DICOM-calibrated displays without secondary verification — direct evidence of savings in QA cycles.
- Projected Capacitive 10-Touch (Multi-Touch Capable): Works through latex, nitrile, and even surgical gloves without pressure compensation. Gesture support (pinch-zoom) accelerates image navigation in PACS without mouse/keyboard overhead in sterile fields.
- 1920×1200 (16:10 Native Aspect): Clinical UI layouts (EMR windows, DICOM viewers, lab result panes) align naturally without black bars or aspect-ratio distortion. Reduces horizontal scrolling burden versus 16:9 consumer monitors.
- VGA + HDMI Dual Input with Hot-Swap: No input-select delay on switching sources; critical in multi-device carts where ultrasound, EMR server, and surgical camera output converge. Analog (VGA) and digital (HDMI) coexist without adapter chains.
- USB and Serial Touch Reporting: USB HID mode works with Citrix, VMware, and Windows thin clients out of the box. RS-232 option serves older embedded diagnostic systems that predate USB standardization in medical devices.
Deployment Considerations:
- Display ships without stand — mandatory VESA wall-arm or cart mount integration. Budget 30–60 minutes per installation for mechanical alignment. Confirm mounting surface load rating (24-inch medical-grade LCD ≈ 8–10 lbs) before swing-arm selection.
- DICOM 14 calibration assumes controlled ambient light (typical clinical room, 200–500 lux). High-intensity operating lights or direct sunlight may require site-specific luminance verification; anti-glare coating mitigates but does not eliminate reflection artifacts.
- Touch responsiveness depends on USB or serial driver installation; verify with your EMR vendor or thin-client platform that HID-mode touch (USB) or custom serial drivers are supported before procurement. Citrix deployments typically work native; custom applications may require driver configuration.
- Cooling airflow should not be blocked if display is mounted in an enclosed cart. The E381452 operates silently (fanless design) but dissipates ~30W continuous; verify cart ventilation or use a monitor arm with open-air spacing.
- For sterile field use (OR integration), confirm that the mount isolation and cable routing meet your facility's infection control standards. Displays in surgical carts require draping or protective covers; the zero-bezel design accommodates thin medical-grade monitors sleeves.
The ELO 2403LM is the right choice for integrators building or upgrading clinical imaging carts, radiology read rooms, or surgical guidance displays where multi-touch interactivity and diagnostic image fidelity are co-requirements. Explore the full ELO Touch catalog for additional display sizes and specialized clinical configurations.
