ELK Products M1 Interface Kit For Lutron M1Xslc

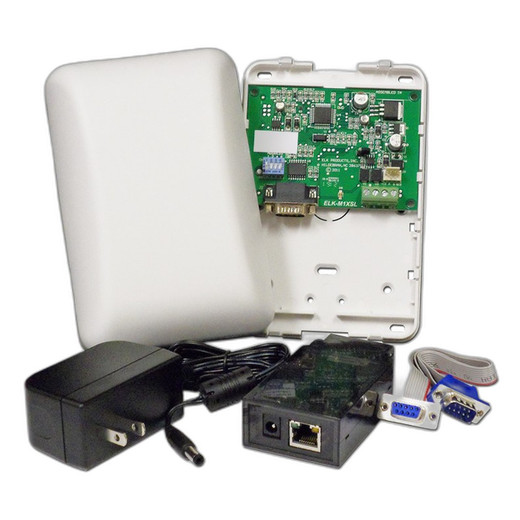

ELK Products ELK-M1XSLC M1 Interface Kit for Lutron

The ELK Products ELK-M1XSLC is a dedicated interface kit designed to bridge ELK security and automation systems with Lutron M1XSLC lighting control platforms. This integration module enables bi-directional communication between ELK control panels and Lutron distributed dimming systems, allowing security integrators to coordinate access control, intrusion detection, and automation logic with precision lighting management across commercial and residential installations.

Overview

The M1 Interface Kit for Lutron M1XSLC provides the hardware and protocol translation necessary to synchronize ELK panel operations with Lutron lighting architectures. Security professionals deploying hybrid ELK/Lutron environments require this interface to unify control messaging, scene activation, and status feedback across both platforms. The kit handles the communication protocol conversion, allowing ELK control logic to directly trigger Lutron lighting scenes, dimming levels, and load states without requiring separate gateways or third-party middleware.

Key Features

• Direct integration between ELK control panels and Lutron M1XSLC distributed dimming systems
• Bi-directional communication for real-time status synchronization
• Protocol translation from ELK to Lutron lighting control language
• Support for lighting scene activation via ELK automation rules
• Compatible with ELK M1 series control panels
• Enables coordinated access and lighting control workflows
• Supports integration with ELK security logic and alarm responses
• Facilitates centralized monitoring of both security and lighting states

Integration & Compatibility

The ELK-M1XSLC interface kit is purpose-built for Lutron M1XSLC systems and integrates with ELK M1-series security and automation control panels. This pairing allows installers to program security events—such as arm/disarm actions, zone violations, or duress scenarios—to trigger corresponding lighting changes. For example, an after-hours perimeter alarm can automatically illuminate exterior zones, or an access denial event can activate warning lighting. The interface manages all protocol translation internally, requiring only standard network or serial connections between the ELK panel and Lutron XSLC processor.

Typical Applications

Security integrators deploy the M1 Interface Kit in mixed-protocol environments including corporate offices, retail facilities, hospitality properties, and residential smart home systems where both security monitoring and lighting automation are critical. The kit eliminates the need for separate control apps or manual intervention, enabling fully automated responses to security events with synchronized lighting. Technicians can configure ELK programming to respond to intrusion, access violations, or scheduled events by activating predefined Lutron lighting scenes, improving both operational efficiency and occupant safety.

Karl Wilson

During multi-protocol integration projects, the ELK-M1XSLC interface kit removes a significant architectural challenge: synchronizing independent security and lighting platforms. I have deployed this kit in several commercial builds where ELK handled intrusion detection and access control while Lutron managed zone dimming and scene management. The kit's bi-directional communication ensures that lighting states remain visible to ELK logic, allowing sophisticated automation rules that respond to both security and occupancy conditions.

Technical Highlights:

• Protocol Translation: Converts ELK M1 control messaging to Lutron XSLC-compatible commands, enabling seamless cross-platform automation without middleware
• Scene Synchronization: Allows ELK rules to activate Lutron lighting scenes and dimming presets as part of security event responses
• Real-Time Feedback: Maintains bidirectional state reporting so ELK panels display current Lutron lighting status

Deployment Considerations:

• Verify your ELK panel firmware supports M1 series interfaces; older generations may require updates
• Ensure Lutron XSLC processor is configured for network or RS-232 communication before installing the interface
• Plan integration testing early—synchronize lighting zones with ELK partition boundaries to avoid automation logic conflicts
• Document all scene mappings and ELK rule triggers in your project handover to support future maintenance

For integrators tasked with unifying ELK security systems with Lutron lighting, the ELK-M1XSLC is a reliable, field-proven solution. It eliminates workflow fragmentation and delivers the automated response capabilities that modern security designs require.
