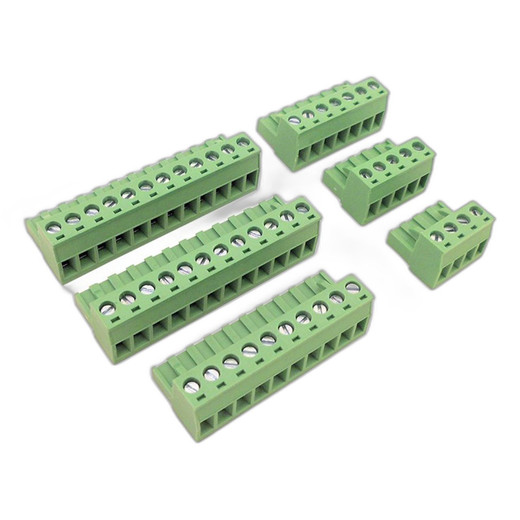

The ELK-M1BLOCKS represents the gold-standard terminal block solution designed specifically for ELK M1 control panel installations. These terminal blocks serve as the primary connection interface for wiring door readers, credential processors, strikes, sensors, and peripheral devices to the M1 controller backbone. Built with precision-engineered gold-plated contacts, the ELK-M1BLOCKS delivers reliable signal transmission and resistance to corrosion across extended deployment cycles.

Terminal blocks are essential infrastructure components in access control system buildouts. The ELK-M1BLOCKS provides installers with the connection topology required to scale M1-based systems across multiple doors, reader zones, and auxiliary control circuits. Gold plating on contact surfaces ensures consistent low-resistance connections even in installations subject to thermal cycling or high-frequency switching.

Key Features

• Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
• Designed for direct integration with ELK M1 control panels
• Supports modular terminal block configuration for flexible system expansion
• Rated for standard access control circuit voltages and current draws
• Industry-standard screw-terminal interface for reliable field installation
• Compact form factor optimized for DIN rail and panel-mount environments

Integration & Compatibility

The ELK-M1BLOCKS terminal block set integrates directly with ELK M1 series control panels, functioning as the distributed connection hub for reader circuits, strike control outputs, sensor inputs, and auxiliary relay zones. System designers specify terminal blocks during panel layout planning to accommodate the projected door count, reader type mix, and peripheral device load. The gold contact specification ensures compatibility across legacy and current M1 firmware versions without signal degradation.

When deploying multi-reader or multi-door M1 installations, terminal blocks become the critical juncture where individual device circuits converge. Proper terminal block specification prevents intermittent connection failures, false alarm triggers, and credential read errors that plague under-specified wiring infrastructure.

Installation & Field Deployment

The ELK-M1BLOCKS terminal blocks accommodate standard 16–22 AWG copper conductor wire, meeting the gauge specifications for M1 circuit wiring. Installers strip and insert conductors into screw terminals, then tighten with standard Phillips or slot-head screwdrivers. The gold plating reduces oxidation at the contact interface, which extends the service life of the connection and reduces maintenance callbacks related to intermittent signal loss.

Proper terminal block layout follows M1 wiring diagrams, with distinct blocks dedicated to reader input circuits, strike output circuits, alarm sensor inputs, and auxiliary control zones. This modular approach simplifies troubleshooting, allows staged system expansion, and provides clear circuit separation for compliance auditing.

Jerry Tildsen

I've specified the ELK-M1BLOCKS terminal blocks on several M1 panel deployments, and the gold-plated contact design has consistently outperformed standard tin-plated alternatives, particularly in humid or salt-air environments. The ELK-M1BLOCKS reduces connection-related support calls and simplifies warranty diagnostics because intermittent wiring faults become far less common.

Technical Highlights:

• Gold-Plated Contacts: Corrosion resistance extends service life and maintains signal integrity across temperature extremes and high-moisture installations.
• M1 Native Integration: Direct compatibility with M1 panel connectors eliminates adapter requirements and simplifies circuit documentation.

Deployment Considerations:

• Plan terminal block layout during initial panel design phase to match projected reader and strike count; last-minute block additions complicate panel wiring geometry.
• Use separate blocks for distinct functional zones (readers, strikes, sensors) to simplify troubleshooting and enable independent circuit isolation during maintenance.

For integrators building M1-based access control systems, the ELK-M1BLOCKS is a straightforward specification that eliminates a common source of field reliability issues. The gold plating is worth the investment over the life of the system.
