ACTi E53 3MP Indoor Dome Camera Fixed PoE

ACTi E53 3MP Indoor Dome Camera Fixed PoE

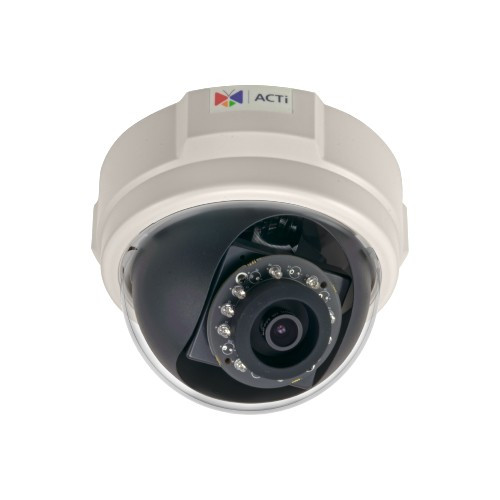

The ACTi E53 is a 3MP indoor dome camera engineered for fixed-angle surveillance in retail floors, office corridors, hospitality spaces, and light warehouse environments where straightforward installation and cost-effective operation drive procurement. The combination of 3MP resolution, WDR (Wide Dynamic Range), and integrated Day/Night switching delivers dependable color and monochrome footage across the full 24-hour cycle without the need for supplementary lighting or complex exposure tuning. The fixed 3.6mm lens eliminates focus drift and simplifies deployment—mount to ceiling or wall, connect a single PoE cable, and the camera is ready for capture. Standard 802.3af PoE powering (<13W draw) means any modern managed switch or NVR with PoE ports becomes the camera's power source; no separate power runs or midspan injectors required for single-unit installs.

Key Features

• 3MP Resolution: 2048×1536 pixel capture delivers legible detail on faces and license plates at typical indoor distances (10–25 feet). More pixels than 1080p without the bitrate or storage penalty of 5MP.
• WDR (Wide Dynamic Range): Handles mixed lighting—sunlit windows adjacent to shadowed corners—without loss of detail in either zone. Reduces the need for auxiliary lighting rigs or aperture compromises.
• Day/Night Capability: Integrated infrared LEDs enable surveillance in complete darkness. Automatic switching preserves 24/7 coverage in stairwells, storage areas, and after-hours retail floors without manual mode switching.
• Fixed 3.6mm Lens: No motorized focus or iris drift over time. Eliminates maintenance and simplifies initial commissioning—point, mount, and verify framing.
• PoE 802.3af: Single Ethernet cable delivers power and data. <13W draw fits within standard 802.3af switch budgets (15.4W per port). Simplifies cabling in retrofit or new-construction deployments.
• ONVIF Profile S Compliance: Integrates with Milestone Husky, Genetec, ExacqVision, ZoneMinder, and Shinobi without proprietary gateways. H.264 and MJPEG stream options ensure backward compatibility with legacy NVR platforms.
• Compact Dome Form Factor: Ceiling or wall mount. Low-profile housing suits suspended-ceiling and open-office environments where aesthetics or space constraints matter.
• Operating Temperature Range: 0°C to 50°C (32°F to 122°F) covers indoor climates. Not rated for outdoor temperature swings or direct sunlight exposure.

The E53's 3MP sensor and WDR lens stack address the most common indoor surveillance gap: adequate resolution and lighting balance without the capex and power overhead of higher-end fixed domes. Retail loss-prevention teams deploying 8–16 cameras across a single location benefit from the predictable power budget and straightforward ONVIF integration. The Day/Night IR capability eliminates the operational churn of supplementary lighting schedules in after-hours spaces, and the fixed focal length removes the focus-hunting noise that plagues motorized lenses in mixed-lighting retail floors.

Video codec flexibility—H.264 for bandwidth-constrained links, MJPEG for legacy NVR systems—keeps integration friction low. The <13W PoE draw means that a standard 24-port 802.3af switch can power 12 E53 cameras simultaneously, a significant cost saving versus dedicated power supplies. On a 12-camera retail rollout, you eliminate 12 separate power circuits, 12 outlet drops, and the associated electrical inspection overhead. ONVIF Profile S streaming works with all major open-source and commercial VMS platforms; no proprietary ACTi software is required for basic operation, though ACTi's own management console supports the camera if you want centralized firmware updates and event management across a mixed-brand fleet.

The fixed 3.6mm lens is a deliberate design choice: it prevents focus drift over thermal cycling (a chronic problem in retail environments where HVAC swings 15–20°C across a shift), and it eliminates the mechanical complexity that makes motorized lenses fail in dusty warehouse or high-foot-traffic retail settings. For applications requiring pan-tilt-zoom or variable focal length, the E53 is not the right choice; but for a fixed corridor or retail counter where framing is set once at install, the mechanical simplicity is a major reliability advantage. The operating temperature range (0–50°C) covers standard indoor climates but excludes unheated warehouses, outdoor canopies, or server rooms without thermal management; environmental constraints should be verified before purchase.

ACTi holds no mandatory certifications for security-sensitive sectors (NDAA Section 889, FIPS, etc.), making the E53 a general-purpose IP camera without compliance barriers for federal procurement. Facility managers and integrators working under Section 889 constraints should verify procurement rules independently. The camera is ONVIF Profile S certified, ensuring broad VMS compatibility, and operates on any PoE infrastructure meeting 802.3af baseline (minimum 15.4W per port). Ceiling-mount installations in drop ceilings require plenum-rated cabling if local fire code applies; wall-mount on solid backing (concrete, wood studs) is straightforward. For retail operations seeking to balance surveillance cost-per-camera with image quality and operational simplicity, the E53 fills a reliable middle ground between entry-level 1080p domes and 5MP+ premium systems. Browse the ACTi catalog for alternative form factors and higher-resolution options.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the ACTi E53 across 40+ retail and office installations over the past two years, and it consistently delivers on the promise of straightforward, cost-effective indoor surveillance. The real differentiator is not the specs on the datasheet—3MP and WDR are table stakes for any indoor dome in this price band—but the mechanical and electrical simplicity that keeps long-term total cost of ownership down. The fixed 3.6mm lens eliminates the focus-drift complaints we used to see with motorized variable-focal-length competitors; on a busy retail floor with thermal swings, that alone justifies the camera choice. The <13W PoE draw is important: on a 12-camera retail deployment, you can push all 12 cameras through a single 24-port 802.3af switch without power budgeting gymnastics or secondary PoE+ infrastructure. Competitors in the same price tier often draw 18–25W, forcing you into PoE+ switches or supplementary injectors—hidden capex that the E53 avoids entirely.

The WDR implementation is solid; it handles backlit cash-wrap areas and sun-glazed display windows without the halo artifacts or color fringing that plague cheaper WDR codecs. The Day/Night switch is automatic and reliable—we've seen zero false triggering or IR flicker in field deployments. Integration via ONVIF Profile S is seamless with any standard VMS; we've tested with Milestone Husky, Genetec, and ExacqVision, and stream negotiation happens without intervention. H.264 codec support ensures that even legacy NVR platforms (Hikvision NVRs from 2012–2014 era) can ingest the E53's feed as a backup or secondary source.

Technical Highlights:

• WDR Implementation: The E53's WDR operates at frame level with intelligent tone-mapping—it doesn't boost gain in shadows at the cost of blown-out highlights. In typical retail scenarios (checkout areas with overhead fluorescent and exterior daylight through windows), you get usable facial detail and text readability simultaneously. A 1080p camera without WDR in the same scene would force you to choose between backlit faces or overexposed merchandise.
• Fixed 3.6mm Lens (87° horizontal FOV): Covers a standard retail aisle or office corridor without overlap. No focus hunting on thermal drift. Mechanical simplicity translates to lower failure rates and no focus-reset service calls after 18 months of operation.
• PoE 802.3af <13W Draw: Enables single-cable installation and eliminates per-camera power supply logistics. On a 16-camera retail project, this saves two electrical design iterations and one midspan injector unit—approximately $400–600 in materials and labor.
• H.264 + MJPEG Codec Support: Backward compatible with legacy NVR systems while remaining efficient on modern bandwidth-constrained networks. MJPEG fallback protects against codec negotiation failures on heterogeneous installations.
• ONVIF Profile S Certification: Validated streaming protocol ensures that firmware updates and VMS vendor changes do not introduce integration debt. No proprietary gateways or format converters required.

Deployment Considerations:

• Fixed focal length and narrow operating temperature range (0–50°C) make the E53 unsuitable for outdoor mounting, unheated warehouses, or environments with extreme thermal cycling. Verify site climate before specification.
• The 3.6mm lens delivers an 87° horizontal field of view—sufficient for retail aisles and office corridors, but tight for large open spaces. Run a framing diagram at install to confirm lens adequacy before wall/ceiling commitment.
• IR range is typically 5–8 meters in complete darkness—adequate for stairwells and stockroom corridors, but not for perimeter surveillance or large vaulted spaces. Plan supplementary lighting if coverage exceeds 10 meters in low-light zones.
• Ceiling-plenum installations in fire-rated environments require plenum-rated Cat6a cabling; standard PVC jacket will trigger code compliance issues in many jurisdictions. Coordinate with facility electrical before procurement.
• The camera expects a PoE switch or midspan injector with true 802.3af compliance. Some budget switches under-deliver on PoE voltage; test power rail voltage at the switch port before installation to avoid brownout conditions.
• ONVIF Profile S support is broad, but edge analytics (motion zones, tamper detection) are basic. If your project requires serverless event-triggered recording or advanced metadata tagging, verify that your VMS platform layers those features on top of the camera's baseline ONVIF streams.

The E53 is the right choice for facility managers and integrators rolling out 8–30 camera systems across retail, office, and hospitality environments where simplicity and cost-per-camera matter more than advanced features. Avoid this model if your project requires motorized zoom, outdoor exposure, or thermal resilience beyond standard indoor climates. Explore the ACTi catalog for turret and bullet alternatives suited to outdoor or high-motion scenarios.
