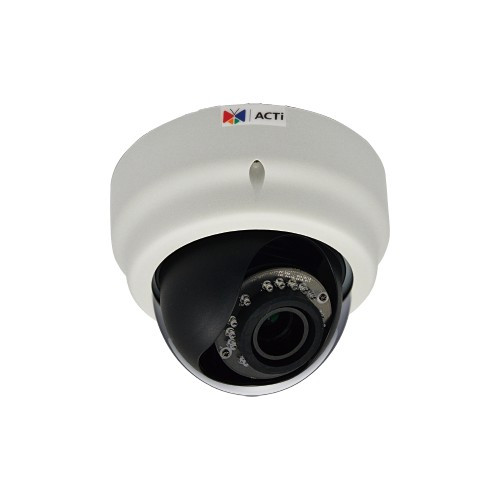

ACTi E69 2MP Indoor Dome Camera with IR and PoE
The ACTi E69 is a 2MP indoor dome camera designed for retail floors, access control points, building lobbies, and facility corridors where reliable night vision and drop-ceiling integration matter more than edge analytics. The compact dome form factor mounts flush to suspended ceilings and blends into office and warehouse environments without drawing visual attention. Powered via standard PoE (802.3af) over a single Ethernet cable, the E69 eliminates the need for separate power routing—a significant advantage in retrofit installations and environments where electrical runs are constrained or costly. The varifocal lens allows field adjustment post-installation, avoiding the need to unmount and refocus before deployment.
Key Features
- 2MP 1080p Resolution: 1920×1080 sensor delivers forensic-quality detail for face recognition at checkout points and entrance monitoring without requiring 4K capex.
- PoE 802.3af Power: Under 13W draw — works with any standard 802.3af PoE switch. No PoE+ infrastructure upgrade required; reduces total network power-budget load on legacy installations.
- IR and Day/Night Capability: Built-in infrared illumination and mechanical day/night filter enable zero-light surveillance without external lighting rigs. Ideal for after-hours retail monitoring and warehouse perimeter coverage.
- Wide Dynamic Range (WDR): Handles mixed-lighting retail scenes — backlit entrances, sunlit windows, and artificial overheads — in a single stream without exposure washout.
- Varifocal Lens: Field-adjustable focal length lets integrators dial focus and coverage without removing or re-mounting the camera unit, reducing labor and downtime.
- Ceiling Dome Form Factor: Compact profile fits standard drop-ceiling tiles and wall surfaces; minimalist design blends into office aesthetic rather than broadcasting surveillance.
- ONVIF IP Compliance: Works with Axis Camera Station, Genetec, Milestone, Avigilon, ExacqVision, and all ONVIF-standard VMS platforms — no vendor lock-in.
- Ethernet Connectivity: Single RJ-45 cable eliminates separate power and video runs; simplifies cabling diagrams and reduces installation time on retrofit projects.
The E69 targets deployments where simplicity and cost-effectiveness outweigh advanced on-camera analytics. In retail environments, the combination of IR, WDR, and standard ONVIF integration means you avoid the complexity and expense of analytics-heavy flagship cameras while still capturing usable night footage for incident review. The varifocal lens is particularly valuable in retrofits: installers can adjust coverage in the field without a return trip, and the compact dome housing doesn't interfere with ceiling aesthetics or fire-suppression sprinkler sightlines.
PoE power efficiency is a practical advantage on mid-scale installations. A single 48-port 802.3af switch with 90W total budget can support up to six E69 units (assuming 13W headroom per port), whereas 5MP+ cameras often require PoE+ rated infrastructure. On a 16-camera retail or warehouse retrofit, that difference in switch specification can eliminate a separate power infrastructure upgrade and simplify installation. The camera streams standard H.264 and MJPEG formats, ensuring compatibility with any NVR or VMS built after 2012.
Deployment scenarios include retail floor surveillance, warehouse receiving areas, bank teller lines, hospital corridors, and office building lobbies—anywhere you need consistent indoor coverage without edge intelligence. The IR range is effective to approximately 10-15 meters in zero-light conditions, sufficient for typical indoor ceiling heights (8–12 feet) and retail floor-to-camera distances. For outdoor or perimeter monitoring, consider a dedicated outdoor camera; the E69 is rated for indoor use only and lacks the IP rating for weather exposure.
The E69 is ONVIF Profile S compliant, ensuring baseline interoperability across heterogeneous VMS ecosystems. It supports RTSP and MJPEG streaming for third-party integrations. Firmware updates are typically available via the manufacturer's support portal; consult the datasheet for current software versions and compatibility with your target NVR or VMS platform. No external lighting, specialized PoE injectors, or proprietary management software are required — standard enterprise IT infrastructure suffices.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ACTi E69 across retail chains, warehouses, and corporate offices where the project budget and network infrastructure don't justify a 5MP or analytics-heavy camera. The real value proposition is simplicity: one Ethernet cable, zero external power, and plug-and-play integration with any ONVIF VMS. On a 20-camera rollout across three retail locations with aging network cabinets, the E69's 802.3af footprint meant we avoided a $4,000 PoE+ switch upgrade — that's a tangible win for integrators and end-users alike. The varifocal lens is underrated; in retail retrofits, we can dial in focus on-site without unmounting, cutting installation time by 20-30 minutes per camera. The IR and WDR pairing handles after-hours retail monitoring and mixed-light lobbies without external flood lights or repositioning fixtures. That said, this is not an edge-analytics camera. If your project needs on-camera face detection, crowd counting, or advanced metadata, look elsewhere — the E69 is a video-capture tool, not an intelligence platform. IR range is indoor-rated (10–15 meters), so perimeter or outdoor deployments require a weatherized alternative.
Technical Highlights:
- 2MP 1080p Sensor: Adequate resolution for facial recognition at entrance points and checkout lines; avoids 4MP+ storage overhead on 24/7 retail recording. Pairs well with event-triggered recording policies to minimize NVR footprint.
- PoE 802.3af Under 13W: Enables multi-camera deployments on standard enterprise PoE switches without infrastructure upgrades. On a 16-camera installation, typical PoE budget is 208W (16 × 13W) — well within a single 48-port switch's power envelope.
- Varifocal Lens (field-adjustable): Manual focus dial allows post-installation adjustment without removing the camera. Critical for retrofit jobs where ceiling height or exact mounting position varies from the design drawing.
- IR + Day/Night Filter: Mechanical IR cut filter and integrated LED array provide zero-lux operation without external lighting. Ideal for 24-hour retail or after-hours warehouse monitoring where ambient light is absent or unpredictable.
- WDR (Wide Dynamic Range): Handles the contrast between sunlit glass doors and dim interior retail spaces in a single frame. Reduces the need for supplementary lighting rigs or manual exposure bracketing in post-processing.
- ONVIF Profile S Compliance: Interoperable with Axis Camera Station, Milestone, Genetec, Avigilon, and all standards-compliant VMS platforms. No vendor lock-in or proprietary management overhead.
Deployment Considerations:
- IR range is rated for indoor use only (approximately 10–15 meters). Do not spec for outdoor perimeter or fence-line surveillance — the lack of weatherproofing and limited throw make it unsuitable for those roles.
- Verify that your target PoE switch supports 802.3af and has available ports. Older enterprise switches labeled '802.3af only' may negotiate lower power delivery on mixed-class devices; test with a pilot camera if upgrading from legacy infrastructure.
- Varifocal lens requires manual focus adjustment post-installation. Allocate 5–10 minutes per camera for focus dial tuning; document the final focal distance if re-deployment or troubleshooting is needed later.
- No on-camera analytics or metadata enrichment. If your NVR or VMS requires ONVIF Profile T (advanced metadata, H.265 streaming), confirm that the E69's H.264-only streaming doesn't conflict with your recording policy.
- IR performance degrades in dusty or smoky environments (warehouses with heavy air particulates). Test coverage in-site before final approval, especially if the space has poor air handling.
The E69 is the right fit for integrators and end-users who prioritize network simplicity, PoE budget conservation, and proven interoperability over bleeding-edge feature density. It's a foundational camera for retail, office, and warehouse environments where a competent 2MP video record and minimal IT overhead matter. Explore the full ACTi catalog for higher-resolution variants and outdoor-rated alternatives.
