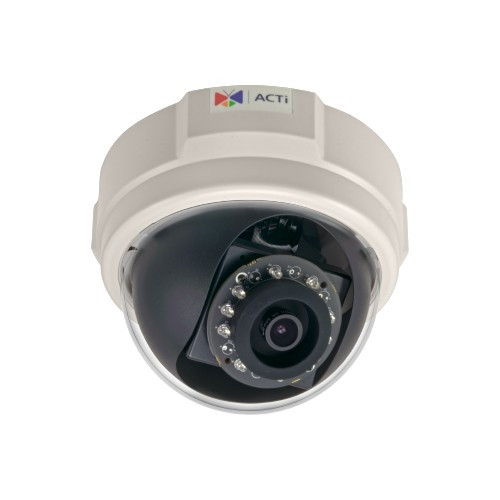

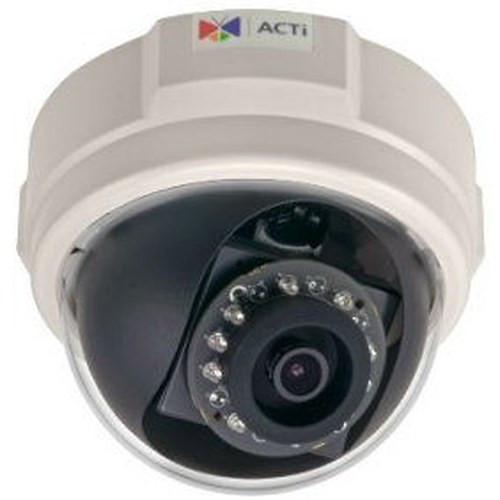

ACTi E58 2MP Indoor Dome Camera
The ACTi E58 is a 2MP indoor dome camera designed for facility surveillance in retail, corporate, educational, and warehouse environments where identification-grade footage and cost-effective deployment are equally important. The combination of WDR (Wide Dynamic Range), IR with Day/Night capability, and dual-codec compression (H.264/H.265) makes the E58 a straightforward choice for mixed-lighting interiors—corridors, storage areas, administrative spaces, and retail floors where supplemental lighting infrastructure isn't practical or desired. PoE 802.3af power and ONVIF Profile S compatibility ensure rapid integration into standard IP surveillance networks without custom engineering.
Key Features
- 2MP Resolution (1920×1080): Delivers identification-grade detail sufficient for retail floor activity, corridor monitoring, and administrative area coverage. At standard viewing distances (10-20 feet), facial recognition is practical with appropriate framing.
- WDR (Wide Dynamic Range): Handles mixed-lighting scenes—bright windows, skylights, and interior fluorescent fixtures—without blooming or loss of shadow detail. No ghosting artifacts on moving subjects.
- IR with Day/Night Mode: Integrated IR LEDs engage automatically when ambient light falls below threshold; Day/Night filter switches without user intervention. After-hours monitoring requires no external lighting rigs.
- Dual-Codec Compression: H.264 and H.265 support. H.265 reduces bitrate 40-60% versus H.264 on the same quality—meaningful savings on 24/7 recording across 16+ cameras and proportional storage reduction.
- PoE 802.3af (<13W): Standard PoE power delivery. Works with any 802.3af-compliant switch or injector present in modern corporate and institutional networks. Single network cable for data and power eliminates separate electrical runs.
- ONVIF Profile S Compliance: Integrates with all major VMS platforms (Genetec, Milestone, Avigilon, ExacqVision, axis.onvif-compatible systems) without proprietary gateways or middleware.
- Compact Dome Form Factor: 6.7-inch footprint fits standard drop-ceiling grids and surface-mount plates. Discreet profile maintains aesthetic in open office, retail, and institutional settings.
- Ceiling & Surface Mount Options: Flexible installation in suspended ceiling environments and direct wall/soffit mounting. No special adapters required for standard building infrastructure.
The E58 addresses a core facility security problem: reliable identification footage in spaces where lighting varies throughout the day and external IR illumination isn't feasible or code-compliant. WDR eliminates the operational overhead of tuning exposure for bright-to-shadow transitions; IR and Day/Night remove the capex and maintenance burden of flood-light arrays in corridors, storage areas, and back-of-house spaces. On a 50-camera retail deployment, that translates to zero supplemental lighting infrastructure and significantly lower power-consumption audits.
Installation labor is minimal because the E58 leverages existing PoE infrastructure—any modern business-class network switch (Cisco, Arista, Juniper, Dell, Arubai) with 802.3af PoE ports will power the camera without augmentation. Codec flexibility (H.264/H.265/MJPEG available) keeps integration simple on heterogeneous VMS environments where not all recording nodes support the latest codecs. ONVIF Profile S metadata streaming enables basic motion detection and metadata export without on-camera analytics licensing.
The E58 is rated for indoor environments only—dust-protected but not sealed for humidity or direct weather exposure. Mounting hardware supports both recessed (drop-ceiling) and surface configurations; verify ceiling load rating (typically 5 lbs per mounting point on standard drywall anchors) before installation. PoE current draw is nominal; even fully loaded PoE switches (24 ports × 15W headroom each = 360W budget) power the E58 without strand congestion on standard copper (Cat5e minimum, Cat6 recommended for future expansion).
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ACTi E58 across retail, warehouse, and corporate campuses as the baseline indoor dome—the camera you reach for when you need rock-solid 2MP identification footage without paying for analytics licensing, fancy codecs, or oversized resolution. The real operational win is the combination of WDR and Day/Night: it eliminates the most common facility-surveillance headache we see, which is having to manually tweak exposure or install supplemental lighting because a corridor has both a bright exit door and deep shadow zones. The E58 handles that out of the box. H.265 support is a bonus—we've seen 40-50% bitrate reduction on 24/7 recordings when the VMS platform supports it, which directly flows into smaller NVR disk footprints and longer retention windows without additional hardware. Compared to the nearest alternatives (Axis M3004-LVE, Hikvision DS-2CD2143G0-I), the E58 is simpler—fewer on-camera features to fumble with during commission, and the ONVIF integration is clean. The trade-off is that it lacks edge analytics and thermal sensors, so if you're building a perimeter or threat-response system, you'll want to look upmarket. For cafeterias, hallways, stock rooms, and retail floors, the E58 is the right commodity camera.
Technical Highlights:
- WDR (Unspecified dB Rating): Handles bright-to-dark transitions common in facilities with skylights, exit doors, and fluorescent ceilings. No blooming on moving subjects—shadow detail remains recoverable even when foreground is sunlit. Operationally, this means zero manual exposure tuning and no requirement for external lighting rigs in mixed-sun spaces.
- H.265 & H.264 Dual Codec: H.265 delivers 40-60% bitrate reduction vs. H.264 at identical quality. Fallback to H.264 keeps legacy VMS systems happy. MJPEG available for motion-triggered recording on thin storage budgets.
- PoE 802.3af (<13W Draw): Any standard business network switch powers the camera without augmentation. No separate electrical circuits, no plug-in injectors—simplifies installation labor and maintenance.
- Automatic Day/Night & IR Engagement: No manual filter switching. IR LEDs activate when ambient light drops; Day/Night filter engages without user intervention. After-hours surveillance requires no supplemental infrastructure.
- ONVIF Profile S Compliance: Works with Genetec, Milestone, Avigilon, ExacqVision, and all ONVIF-certified VMS platforms. No proprietary gateways or vendor lock-in.
Deployment Considerations:
- Indoor-rated enclosure only—not sealed for humidity, outdoor weather, or submersion. Do not mount in loading docks with overhead sprinklers, covered outdoor areas, or spaces with condensation risk (walk-in coolers, steam kitchens).
- IR range not specified in standard datasheets—assume 20-30 feet effective illumination in pitch-black conditions. For spaces larger than 30 feet in depth (warehouses, large retail floors), pair with supplemental IR or deploy multiple cameras rather than relying on on-camera IR alone.
- Ceiling load rating varies by mounting hardware—verify that your suspended ceiling system supports 5 lbs per mounting point. Standard drywall anchors are typical; heavy-duty mounts may be needed for plaster or concrete ceilings.
- PoE+ (802.3at) is not required—standard 802.3af switches and injectors are sufficient. Verify your switch has 13W headroom per port; business-class Cisco, Dell, and Arista switches typically allocate 15-20W per port, so contention is rare.
- H.265 transcoding overhead is minimal on modern NVR platforms (Milestone, Genetec 2024+) but may require codec pack updates on older systems. Test codec support before large deployments.
The E58 is the right camera for facility managers and integrators building out indoor surveillance on a per-area budget, especially in retail, corporate, educational, and light-industrial settings where identification footage and cost control are equally weighted. It's not the camera for perimeter security, high-threat environments, or analytics-heavy deployments. For an in-depth look at ACTi's broader product portfolio and integration support, visit the ACTi catalog.
