DMP PB-52TC Push-Button Reed With Terminal Connects

DMP PB-52TC Push-Button Reed Switch with Terminal Connections

Overview

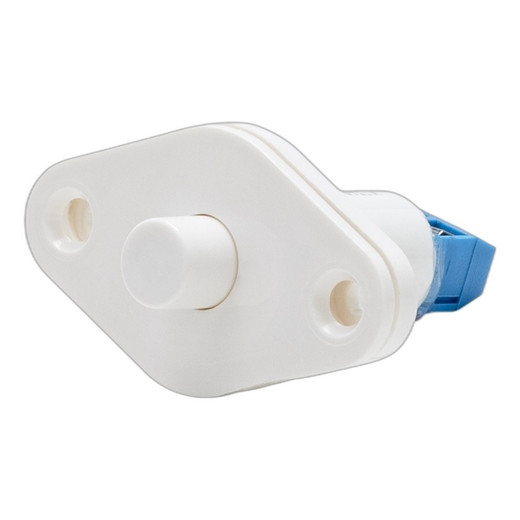

The DMP PB-52TC is a hardwired push-button reed switch assembly designed for integration into access control systems and security installations. This component provides a reliable switching mechanism with screw terminal connections, enabling straightforward integration into door strike circuits, alarm loops, and control panel inputs. The reed switch technology ensures consistent, maintenance-free operation across repeated activation cycles.

Key Features

• Push-button activation with integrated reed switch mechanism
• Screw terminal connections for direct panel integration
• Designed for access control and security system applications
• Reliable switching performance across extended service life
• Compatible with standard 12V DC and 24V DC control circuits
• Compact form factor suitable for door frame and mullion installation
• Low actuation force optimized for institutional and commercial environments
• Factory-tested for consistent electrical performance

Technical Integration

The PB-52TC integrates into access control and alarm systems requiring discrete push-button switching inputs. Terminal connections support both normally-open (N.O.) and momentary-contact configurations. The reed switch mechanism eliminates mechanical wear associated with traditional contact switches, reducing maintenance overhead in high-traffic access points. Installation requires standard wiring practices; terminal blocks accommodate 14-18 AWG copper conductors with standard screw-down terminals.

Typical Applications

Security integrators deploy the DMP PB-52TC in emergency exit release circuits, secondary access authorization points, and alarm system manual bypass stations. The component is suitable for interior door frames, secure vestibules, and perimeter access points where reliable switching and low maintenance are operational priorities. Because the reed switch operates without exposed contacts, the PB-52TC performs consistently in environments where dust, humidity, or temperature fluctuations would compromise traditional mechanical switches.

Compatibility

The PB-52TC works with DMP control panels and third-party access control systems accepting dry-contact inputs. Integrators should confirm panel input specifications (voltage, impedance, and circuit loop type) prior to installation. The component functions as a standalone switching element and does not require additional modules or software configuration.

Installation Considerations

Mount the PB-52TC in a protected location behind the door frame or within a mullion pocket to prevent accidental or malicious activation. Route terminal wiring through conduit for mechanical protection and code compliance. Test switch operation and verify circuit continuity before system handoff. The push-button travel is designed for user confirmation without excessive force, suitable for both able-bodied operators and ADA-compliant installations.

Karl Wilson

The DMP PB-52TC represents a straightforward but essential integration point in access control systems. During deployment planning, I've found this push-button reed switch particularly valuable in scenarios where manual override or secondary authorization is required without adding complexity to the control panel or software configuration.

Technical Highlights:

• Reed Switch Technology: Sealed contact mechanism eliminates wear and reduces maintenance cycles compared to traditional mechanical buttons.
• Terminal Connectivity: Screw-down connectors accept standard control wiring and integrate seamlessly into existing panel loops without adapters.
• Voltage Compatibility: Operates reliably across standard 12V and 24V DC control circuits used in commercial access systems.

Deployment Considerations:

• Position the PB-52TC behind the secure side of the door frame to prevent unauthorized access to the manual release mechanism.
• Verify that your control panel accepts momentary dry-contact inputs; the PB-52TC does not provide latching or timed hold functionality on its own.
• Route terminal wiring through rigid conduit in shared wall cavities to meet fire code and mechanical protection requirements.

From a field perspective, the PB-52TC is a reliable component that reduces troubleshooting calls related to button wear or stuck contacts. For integrators managing medium-to-large installations with multiple access points, having this hardware-level switching option simplifies system architecture and improves fault tolerance. I recommend stocking this component for retrofit and new-build access control projects.
