DMP 716T Plug-In Screw Terminal

DMP 716T Plug-In Screw Terminal

Overview

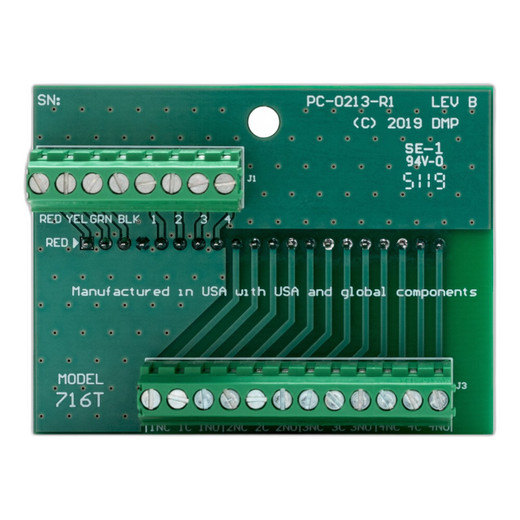

The DMP 716T is a plug-in screw terminal module designed for integration into Digital Monitoring Products (DMP) security control panels and systems. This component provides reliable electrical connection points for field wiring, making it an essential interface for access control, intrusion detection, and integrated security deployments. The 716T terminal configuration enables straightforward integration of peripheral devices, sensors, and communication links into DMP-based security architectures.

Key Features

• Plug-in design for rapid installation and module replacement in DMP control systems
• Screw terminal connection type for secure, field-serviceable wiring termination
• Compatible with DMP security control platforms and integrated security solutions
• Modular architecture supports flexible system expansion and reconfiguration
• Standard electrical specifications for reliable performance in access control and intrusion detection applications
• Supports both analog and digital signal connectivity for multi-protocol security environments

Integration & Compatibility

The DMP 716T integrates seamlessly into DMP control panel frameworks, providing terminal interface points for door readers, credential scanners, strike locks, motion sensors, door position switches, and auxiliary devices common in enterprise security deployments. The screw terminal design accommodates 18–12 AWG field wiring, enabling integration with standard security peripherals across access control, video intercom, and intrusion detection subsystems. This terminal module is engineered to support both 12 VDC and 24 VDC power distributions, making it adaptable to mixed-voltage security environments.

In multi-door access control deployments, the 716T terminal serves as the electrical backbone connecting readers, electromechanical strikes, request-to-exit buttons, and magnetic locks to the primary control module. IT managers and security integrators specify this module when standardizing on DMP platforms for enterprise campuses, hospitality properties, or critical infrastructure facilities. The plug-in architecture permits hot-swap replacement during maintenance windows without requiring full system shutdown.

Technical Characteristics

The 716T terminal block is housed in a compact form factor designed for DIN rail or panel mounting within standard electrical enclosures. Screw terminal pitch and contact design meet UL and ETL standards for fire and safety ratings, ensuring compliance in regulated environments. Field wiring connections support industry-standard gauges and crimp terminals, reducing installation time and field labor costs. The module does not introduce signal conditioning or filtering; it functions as a passive terminal interface, preserving signal integrity from source devices to the control module.

Proper grounding and separation of AC and DC circuits during installation ensure EMI immunity and reliable operation in environments with VoIP phones, wireless access points, and video surveillance traffic. The DMP 716T is commonly deployed in conjunction with door control modules, zone expansion boards, and communication interface cards to construct comprehensive access control and intrusion detection systems.

Marty Allison

I've evaluated the DMP 716T in several enterprise access control rollouts, and it remains a reliable workhorse for integrators standardizing on DMP platforms. The plug-in screw terminal design is straightforward to terminate in the field, reducing labor costs and installation errors compared to hand-soldered connections.

Technical Highlights:

• Field Termination: Screw terminal design allows site-level wiring and reconfiguration without returning modules to the lab.
• Modular Architecture: Plug-in form factor enables rapid replacement during maintenance, minimizing downtime in access control environments.
• Voltage Compatibility: Supports standard 12 VDC and 24 VDC power rails, accommodating both legacy and current DMP deployments.

Deployment Considerations:

• Verify screw terminal gauge compatibility with your field wiring specification before ordering in volume; 18–12 AWG is standard.
• Ensure proper DC polarity and grounding discipline during termination to prevent noise injection into reader and sensor circuits.
• In environments with significant EMI (broadcast, industrial RF), route signal and power cables separately and use shielded conduit where feasible.

The DMP 716T is a solid choice for integrators building multi-door access control systems, classroom card reader networks, or enterprise intrusion detection platforms on DMP foundations. It's not flashy, but it's reliable and field-serviceable—exactly what you want in a terminal module.
