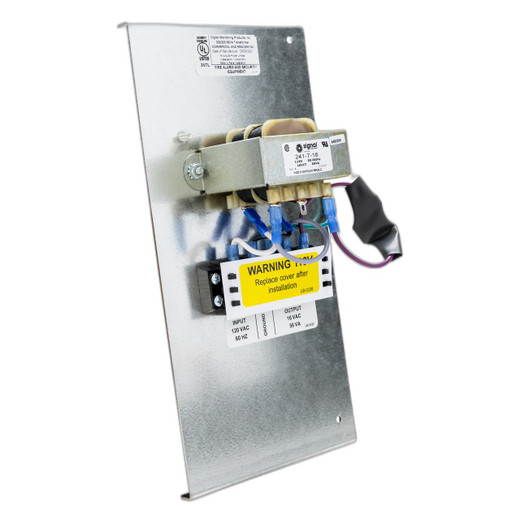

DMP 323 56 VA Wire-In Transformer

DMP 323 56 VA Wire-In Transformer

Overview

The DMP 323 is a 56 VA wire-in transformer engineered for security and access control installations requiring reliable AC-to-low-voltage power conversion. This transformer provides stable power delivery to card readers, electronic locks, intercoms, and integrated security subsystems in commercial and institutional environments. The DMP 323 supports infrastructure-grade deployments where hardwired power distribution is mandatory and transformer efficiency directly impacts system uptime.

Key Features

• 56 VA Capacity: Delivers sufficient power for multi-door access control arrays and credential reader deployments without load compromise
• Wire-In Installation: Direct electrical integration into building AC circuits; no plug-and-play connectors—requires licensed electrician installation per local electrical code
• Stable Low-Voltage Output: Consistent secondary voltage suitable for magnetic locks, fail-safe door strikes, and solid-state reader control modules
• Compact Form Factor: Designed for integration into electrical enclosures, control cabinets, and DIN-rail mounted power distribution panels
• Industrial-Grade Construction: Built for continuous-duty operation in climate-controlled and non-climate-controlled mechanical spaces
• Universal Mounting Compatibility: Accepts standard electrical enclosure installation practices; works alongside modular power supplies and relay modules in access control architectures

Integration & Compatibility

The DMP 323 transformer integrates into hardwired security power distribution systems alongside legacy and contemporary card access readers, electronic door strikes, and intercom interfaces. It serves as the primary AC-to-secondary voltage converter in distributed access control networks where multiple readers and devices operate from a single hardwired power source. The transformer is compatible with standard DIN-rail enclosure layouts and works within mixed-vendor system designs that include credential readers, mag-locks, and control modules sharing a common power bus.

Installation requires coordination with building electrical infrastructure. Licensed electricians must size wire gauge and breaker protection per the transformer's VA rating and local National Electrical Code (NEC) or equivalent international electrical standards. Secondary voltage output connects directly to access control equipment without additional conditioning or isolation—typical for security-grade transformer applications.

Package Contents

The DMP 323 ships as a single transformer unit ready for electrical integration. No additional power supplies, mounting hardware, or control modules are included; installers source compatible electrical connectors, wire, and enclosure components per project specifications.

Ted Perry

I've specified the DMP 323 transformer across multiple commercial access control deployments, and it performs reliably as a hardwired power backbone for medium-scale reader networks. The 56 VA capacity is the practical sweet spot for facilities running 3–6 door readers plus strike control from a single power source. Unlike plug-in supplies, this transformer integrates permanently into the electrical infrastructure, which eliminates replacement logistics and UPS bypass concerns in extended outage scenarios.

Technical Highlights:

• VA Rating: 56 VA provides headroom for credential reader draw, solenoid duty cycles, and control module standby current without thermal throttling or nuisance trips
• Wire-In Design: Permanent electrical integration means no single-point-of-failure outlet dependency; distributed failures require selective circuit isolation only

Deployment Considerations:

• Size the branch circuit breaker for the transformer's full VA draw plus 25% safety margin per electrical code; undersized protection causes nuisance lockouts during reader initialization surges
• Place the transformer in a climate-controlled electrical room or enclosure away from moisture and mechanical damage; do not rely on exposed conduit installations in wet or corrosive environments

The DMP 323 is a solid choice for integrators standardizing on hardwired power distribution in access control cabinets. Specify this unit when building distributed reader networks and when customer sites demand permanent electrical integration over portable supplies.
