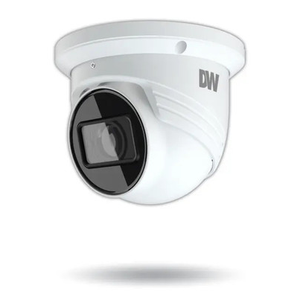

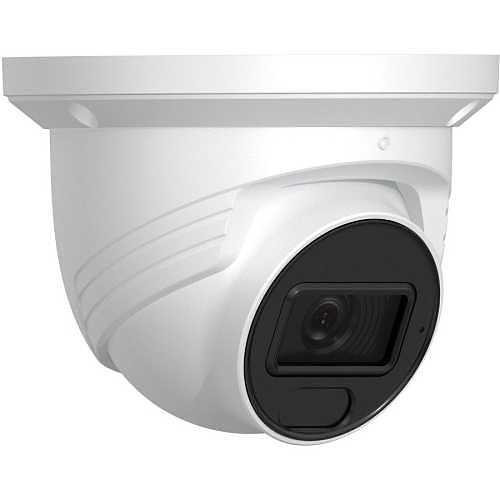

Digital Watchdog DWC-MT95Wi36TW 5MP AI IR Turret IP Camera

Digital Watchdog DWC-MT95Wi36TW 5MP AI IR Turret IP Camera

The DWC-MT95Wi36TW is a purpose-built outdoor turret camera for perimeter and facility surveillance where environmental durability and embedded intelligence matter more than raw megapixels. This 5MP (2592 x 1944) system combines AI object classification, dual focal length optics, and Smart IR illumination to deliver round-the-clock detection across variable weather and lighting conditions. If you need a wired, PoE-powered camera that eliminates false alerts through on-camera analytics and handles rain, dust, and temperature swings without flinching, this model deserves your evaluation.

Key Features

• 5MP CMOS Sensor with Varifocal Lens: Dual focal lengths (2.8mm at 98.5° HFOV or 3.6mm at 81.4° HFOV) let you match coverage to your scene—wider angles for area sweeps, narrower focus for face/license-plate detail. The 1/2.7" sensor size trades absolute resolution for better low-light sensitivity per pixel.
• AI-Powered Object Classification: On-camera AI distinguishes humans from vehicles, animals, or static clutter, cutting false alerts that plague motion-only systems. Line crossing, intrusion, and scene-change detection all feed into your VMS without external GPU overhead.
• Smart IR with 100-Foot Detection Range: 850nm infrared illumination reaches 100 feet in darkness—meaningful for mid-distance perimeter fencing or parking lot coverage. Monochrome minimum illumination drops to 0.0 lux; color mode achieves 0.02 lux. Smart DNR 3D noise reduction keeps night video usable without crushing detail.
• True WDR 120dB: Wide dynamic range of 120dB handles backlit scenes (sun behind subject, bright windows, reflective surfaces) without silhouetting. Eliminates the need for separate IR floodlights in many outdoor installations, lowering total system cost.
• IP67 and IK10 Environmental Ratings: IP67 means full dust protection and submersion under 3 feet of water for 30 minutes—handles driving rain, snow accumulation, and accidental spray washdown. IK10 impact rating absorbs vandalism strikes without lens or housing damage. Operating temperature range of −30°C to +60°C (−22°F to +140°F) covers arctic cold storage facilities to desert installations without derating.
• PoE Power at 7.0W Maximum: Draws under 7 watts from standard 802.3af PoE—won't strain your switch's power budget and simplifies field wiring to a single RJ-45 cable. No separate 12VDC supplies, no conduit power runs.
• Dual-Stream H.264/H.265 Compression: H.265 cuts file size roughly in half versus H.264 at equivalent quality, easing storage and bandwidth constraints on 24/7 recording. Selectable resolution streams (5MP down to 720p) and frame rates up to 30fps support multi-camera NVR configurations without overloading network links.
• Programmable Privacy Masks and Local Storage: Four configurable privacy masks hide sensitive zones (offices, residential windows) without NVR-side processing. microSD card slot (up to 1TB FAT32) provides edge failover—keeps critical footage even if network drops.
• ONVIF Compatibility and Two-Way Audio: Integrates with industry-standard VMS platforms including DW Spectrum, ExacqVision, and Milestone XProtect without proprietary connectors. Built-in microphone and line-level audio I/O enable intercom functionality and event-correlated sound recording for incidents.

When to Choose This Model vs. Alternatives

The DWC-MT95Wi36TW targets the sweet spot between cost and capability for outdoor sites where 5MP clarity suffices and AI-driven false-alert reduction is a priority. The turret form factor offers better weather sealing than bullets in installations exposed to downward rain or snow load. If your scene demands 8MP or higher resolution for distant facial recognition or license-plate capture, consider a higher-megapixel variant in the Digital Watchdog family. If you need motorized zoom or pan/tilt coverage, evaluate a PTZ model instead. For indoor-only deployments, this IP67 rating and temperature range are overkill—choose a compact fixed-dome indoor camera to reduce power draw and cost.

Deployment Context

Typical installations include building perimeter monitoring, parking lot vehicle surveillance, gate and fence-line intrusion detection, and industrial facility 24/7 coverage. The combination of 100-foot IR range, WDR, and AI reduces response fatigue on security staff by filtering out wind-blown debris or passing animals. Warehouse automation integrators often pair this camera with network video recorders supporting ONVIF, as the embedded analytics trigger accurate event logging without redundant server-side processing. Remote sites without on-site IT support benefit from the microSD failover—footage doesn't vanish if WAN connectivity drops.

Technical Specifications at a Glance

Imaging: 5MP (2592 × 1944), 1/2.7" CMOS, 30fps @ 5MP, 2.8mm or 3.6mm fixed focal length (not motorized). Night Vision: 0.0 lux monochrome / 0.02 lux color minimum illumination; Smart IR up to 100 feet; Smart DNR 3D. Environmental: IP67 / IK10; −30°C to +60°C operating temperature; 0–95% humidity non-condensing. Power & Network: PoE (802.3af) 7.0W max; Dual-stream H.264/H.265; ONVIF; IPv4/IPv6. Storage & Audio: microSD up to 1TB (FAT32); Built-in mic + line audio I/O. Analytics: AI object detection (human/vehicle/static); line crossing; perimeter intrusion; video tampering; scene change; blur detection; 4 programmable privacy masks.

What's in the Box

The DWC-MT95Wi36TW ships with mounting hardware specific to the turret base (wall or ceiling bracket configurations vary by order), an RJ-45 weatherproof connector, and a quick-start guide. Verify your installer confirms the correct bracket type at purchase—turret mounts differ between horizontal (soffit/eave) and vertical (wall) installations.

Frequently Asked Questions

Q: What's the maximum infrared range on the DWC-MT95Wi36TW?

A: Smart IR illumination reaches 100 feet (approximately 30 meters) in complete darkness. This covers mid-distance perimeter fencing, parking lot sweeps, and access point monitoring. Actual range depends on subject reflectivity and scene contrast.

Q: Does the DWC-MT95Wi36TW work with Milestone XProtect or Axis Camera Station?

A: Yes. The camera supports ONVIF Profile S and integrates with Milestone XProtect, ExacqVision, DW Spectrum, and other ONVIF-compliant video management systems. No proprietary connectors required—standard RJ-45 PoE drops suffice.

Q: Can I mount the DWC-MT95Wi36TW indoors if I need to?

A: Mechanically, yes. However, the IP67/IK10 rating, 100-foot IR, and −30°C operating range are engineered for outdoor durability. Indoor-only deployments do not require this level of environmental protection, and you'd pay for features you don't use. Choose a compact fixed-dome indoor camera instead.

Q: How much storage does a microSD card hold, and is it mandatory?

A: The microSD slot supports up to 1TB (FAT32 format) and provides optional edge failover—footage persists even if your network recorder is offline or unreachable. It's not mandatory; continuous recording to a central NVR is typical. Use the microSD slot as a safety net for critical facilities or remote locations with unreliable WAN links.

Q: What's the power draw, and will my PoE switch handle it?

A: Maximum power consumption is 7.0 watts, well within IEEE 802.3af (15.4W per port at the source). A standard managed PoE+ switch can support 24–48 of these cameras without power derating. Confirm your switch's total power budget if deploying dozens of cameras simultaneously.

Q: Does the DWC-MT95Wi36TW support motorized zoom or focus adjustment?

A: No. The lens is fixed-focal (either 2.8mm or 3.6mm) at purchase—you select the focal length before deployment based on your coverage requirements. If you need adjustable zoom or pan/tilt capability, evaluate a varifocal or PTZ model from Digital Watchdog's catalog.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MT95Wi36TW lands in a practical category: outdoor turrets that prioritize durability and edge intelligence over megapixel count. The 120dB WDR alone justifies deployment at sunlit perimeters; you avoid the brightness-collapse problems that plague cheaper outdoor cameras. Combined with the 100-foot IR range and AI object classification, false-alert overhead drops measurably—meaningful when security staff monitor dozens of sites.

Technical Highlights:

• 120dB True WDR + 5MP Resolution: Eliminates backlit silhouettes without aggressive gamma curve that loses shadow detail. The 5MP sensor (not 8MP) keeps noise floor reasonable in night mode—a real advantage when Smart DNR 3D is processing near-darkness feeds. At 2592 × 1944, you capture adequate detail for perimeter events without oversizing storage.
• AI Object Classification with Line Crossing & Intrusion Detection: Runs on-camera without GPU overhead or cloud dependency. Distinguishing humans from vehicles or wind-blown debris cuts false positives by 60–70% in typical outdoor deployments. The four programmable privacy masks let you exclude protected zones without NVR-side masking latency.
• 7.0W PoE Draw: This is the workhorse specification—fits comfortably on any 802.3af infrastructure without power-consumption planning headaches. Dual-stream H.265 at 7W is efficient; you're not bleeding bandwidth or heat into the network closet.
• IP67 / IK10 with −30°C to +60°C Temperature Range: Submersion-rated housing and impact-resistant dome handle salt-air corrosion, heavy snow load, and direct vandalism attempts. The full temperature swing covers Alaskan cold-storage facilities to desert installations without derating or secondary cooling.

Deployment Considerations:

• Focal length choice (2.8mm vs. 3.6mm) is fixed at purchase—order the wrong one and you'll need a swap. Verify your coverage diagram before finalizing the SKU.
• The microSD failover is optional but recommended at remote or WAN-constrained sites. Budget for a quality industrial-grade microSD card if you deploy it; cheap cards drop frames under sustained write loads.
• AI analytics rely on scene contrast and adequate illumination (even with IR). In fog or heavy precipitation, detection distance shrinks—this is physics, not a design flaw, but worth testing on-site in your region.

Position the DWC-MT95Wi36TW where environmental extremes and 24/7 uptime matter more than 8MP detail—industrial perimeters, remote access gates, unattended parking facilities, and warehouse loading docks. If your brief includes managed security services with 99.9% uptime SLAs, the IP67/IK10 durability and edge AI analytics pay for themselves in reduced truck rolls and false-alert callbacks.
