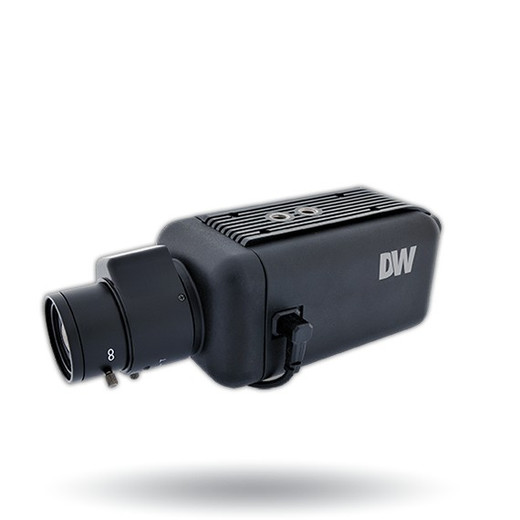

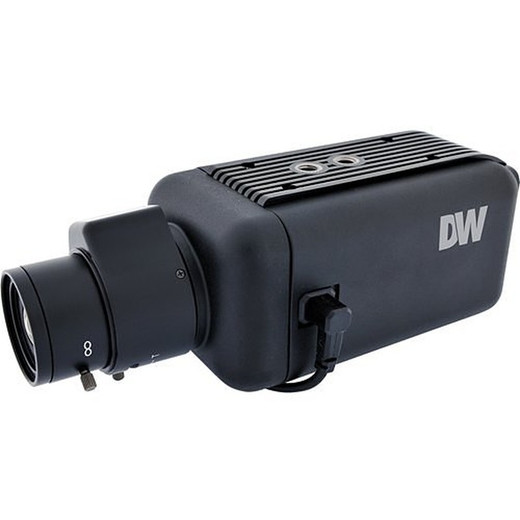

Digital Watchdog DWC-C223W 2MP Star-Light Box IP Camera

Digital Watchdog DWC-C223W 2MP Star-Light Box IP Camera

The DWC-C223W is a compact outdoor surveillance box camera engineered for low-light performance and mixed analog/IP deployments. At 2MP (1944 x 1092 progressive), it delivers sufficient resolution for facial identification at moderate distances while keeping bandwidth and storage footprint manageable—a real advantage when scaling to 20+ camera sites. The camera's defining feature is Star-Light technology, which achieves 0.20 lux color sensitivity with selectable gain up to x32, meaning you capture usable color detail in near-darkness without adding external IR illuminators.

Key Features

• Star-Light Low-Light Technology (0.20 lux color): Eliminates the common choice between blurry color footage and grayscale IR—deploy this where colored night footage matters (parking lot plates, clothing identification) without the expense and maintenance of dedicated IR arrays. The x32 gain ceiling provides flexibility for truly dark environments, though motion blur may appear on fast-moving subjects.
• 100dB True WDR (Wide Dynamic Range): Handles backlit loading dock scenes and mixed bright-shadow transitions without constant exposure adjustment. The camera shifts tone mapping intelligently across the frame, so you don't lose detail in shadows or blow out sunlit areas. Critical for outdoor perimeters where sun angle changes hour to hour.
• Smart DNR 3D Noise Reduction: Suppresses graininess in low-light sequences while preserving edge detail. In highly dynamic scenes (heavy traffic, moving shadows), some temporal blur is acceptable; static scenes render cleaner than single-frame denoising alone.
• IP66 Weatherproof Aluminum Die-Cast Housing: Rated to -4°F to 122°F. Direct rain won't penetrate; dust won't accumulate in optics or connectors. Skip this camera if you need full submersion (requires IP67 or higher) or operation below -4°F or above 122°F.
• Flexible Video Output (CVBS, HD-Analog, HD-CVI, HD-TVI, Universal HD over Coax®): Integrates into existing coax-based analog systems without recorder replacement. If your site already has twisted-pair runs to analog DVRs, the DWC-C223W avoids costly rewiring. Modern IP-only deployments should prioritize a network IP camera instead.
• Motorized IR Cut Filter with Auto Day/Night Switching: Seamlessly transitions color (day) to B&W (night) based on ambient light. Manual override available if automatic switching misses your schedule.
• De-Fog Technology: Sharpens images in rain, mist, or spray—useful for coastal facilities or those adjacent to water. Not a waterfall filter; use it for light-to-moderate fog conditions.
• 16 Programmable Privacy Masks: Conceal adjacent properties, employee parking, or windows—supports compliance requirements without footage loss elsewhere.
• Compact Form Factor (4.71" x 2.31" x 2.44"; 0.70 lbs): Discretely mounts on corners or walls where dome and bullet cameras draw attention. Lightweight design reduces strain on old conduit runs.
• Low Power Consumption (2.4–2.45W): Operates on standard 12VDC or 24VAC without straining power supplies. In multi-camera PoE deployments, verify switch capacity, but this camera won't force an upgrade.
• Pelco C/D Protocol Support and 1x Alarm Relay Output: Integrates with legacy PTZ systems and relay-based gate/siren automation. Modern systems should use ONVIF, but this broadens backward compatibility.
• C/CS Mount Lens Compatibility: Swap lenses for 2.8mm, 3.6mm, or varifocal options to match your coverage requirement—critical if your site layout changes or you need closer identification at distance.
• Shutter Speed 1/30 to 1/30,000 seconds with Anti-Flicker Support: Locks exposure in 50Hz or 60Hz environments, eliminating the rolling-bar effect seen under fluorescent or LED lighting in parking structures.

Integration & Compatibility

The DWC-C223W bridges analog and IP surveillance. If your network video recorder or DVR supports HD-CVI or HD-TVI input (common in sites built 2015–2020), this camera connects directly without transcoding. For pure IP environments, verify your VMS (Milestone, Genetec, etc.) lists Pelco protocol support; most don't natively unless you're running a legacy Pelco system.

When planning PoE infrastructure for this camera, note it runs on standard 12VDC or 24VAC—not standard 802.3af PoE injection, so you'll need a compatible 12V or 24V power injector or rack supply if integrating into a new IP deployment.

Ideal Deployment Scenarios

Deploy the DWC-C223W in outdoor locations where low-light color footage justifies avoiding IR illumination costs: parking lots with sodium-vapor ambient lighting, building perimeters with streetlights, loading docks with minimal but adequate ambient illumination, and remote access points where power runs are expensive. Its 2MP resolution suits identification tasks at 15–30 feet; beyond that, step up to 4MP or 5MP in the same family.

Avoid this camera for completely dark environments (zero ambient light), underwater or high-humidity spray zones (upgrade to IP67), or high-temperature equipment yards above 122°F.

Frequently Asked Questions

Q: Does the DWC-C223W work with modern IP-only video management systems?

A: The camera outputs HD-CVI, HD-TVI, analog CVBS, and Pelco-protocol control. If your VMS is Milestone, Genetec, or Axis Camera Station, you'll need an HD-CVI or HD-TVI decoder card in your recorder to accept the video stream, or a gateway device. For native ONVIF IP cameras, consider a different Digital Watchdog IP camera model in the network-native product line.

Q: What's the warranty on the DWC-C223W?

A: 5-year manufacturer warranty from the date of purchase.

Q: How far can the Star-Light technology see at night without external IR?

A: At 0.20 lux (equivalent to a parking lot with distant streetlights), the camera delivers usable color detail. Below that, switch to B&W mode and activate external IR, or use the camera's motorized IR cut filter to stay in color at the cost of lower contrast. True performance depends on your site's ambient light—test with a light meter before committing.

Q: Can I mount the DWC-C223W on a corner or inside a ceiling cavity?

A: Yes. The compact 4.71" x 2.31" x 2.44" box design suits wall, corner, and recessed mounting. Use appropriate L-brackets or corner mounts rated for 0.70 lbs. Ensure airflow around the housing for temperature regulation in hot climates.

Q: Is the DWC-C223W compliant with NDAA Section 889 or other government procurement standards?

A: No certifications (NDAA, TAA, UL, FCC, CE) are listed in the manufacturer specification. Contact the integrator or Digital Watchdog directly if government compliance is required.

Q: What lenses are compatible, and which focal length should I choose?

A: The C/CS mount accepts standard lens options. A 2.8mm fixed lens provides ~100° horizontal field of view (wide perimeter coverage); 3.6mm gives ~55° (moderate distance identification); varifocal 2.8–12mm or 4–40mm allows remote zoom adjustment. Measure your target distance and field width before ordering—most outdoor perimeters use 2.8mm or 3.6mm fixed to avoid complexity.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-C223W (often searched as DWC C223W) sits squarely in the hybrid surveillance sweet spot: sites transitioning from analog to IP, or those with existing coax runs where camera replacement happens incrementally. Its 2MP resolution and Star-Light 0.20 lux color sensitivity deliver real value in outdoor low-light scenes—far more practical than the usual false choice between grayscale IR and expensive multi-LED arrays. The 100dB WDR implementation is genuine, not marketing theater; it handles the backlit loading dock problem without constant re-tuning.

Technical Highlights:

• Star-Light Color Sensitivity (0.20 lux, x32 gain): Produces usable color detail under parking-lot ambient lighting without external IR. Gain above x16 introduces motion blur, so test on fast-moving targets (traffic, conveyors) before locking deployment parameters.
• 100dB WDR with Smart DNR 3D: Preserves shadow detail and limits blown highlights in mixed indoor-outdoor transitions. On highly dynamic scenes (people walking through sun-shadow boundaries), some temporal artifacts appear; acceptable for security identification, not ideal for motion-based analytics.
• HD-CVI/TVI/Analog Multi-Format Output: Eliminates decoder card cost if your existing DVR already supports HD-CVI or HD-TVI; otherwise adds complexity. Pure IP deployments should avoid this model in favor of network-native cameras.
• Compact Form Factor and Low Power (2.4–2.45W): Discrete profile reduces vandalism attention; minimal power draw suits legacy 12V or 24V supplies. Weight under 1 lb keeps installation brackets simple.

Deployment Considerations:

• Operating temperature range (-4°F to 122°F) rules out unheated freezer environments and tropical rooftops. Verify your site climate before specifying.
• IP66 handles rain and dust, but not the full submersion scenarios (IP67+) or high-pressure spray zones common in car washes or food processing facilities.
• C/CS mount flexibility is an asset only if you stock 2–3 lens options on hand; single fixed-lens purchases eliminate on-site swapping.
• Pelco protocol control is legacy; modern systems rely on ONVIF. Confirm recorder compatibility before assuming PTZ or relay integration will work without additional gateway equipment.

Best fit: outdoor mixed-coax sites where 2MP resolution suffices, ambient light reaches 0.2+ lux at night, and existing HD-CVI or analog infrastructure survives the upgrade cycle. Avoid for pure IP greenfield builds, fully dark environments, or sites requiring government compliance certifications.
