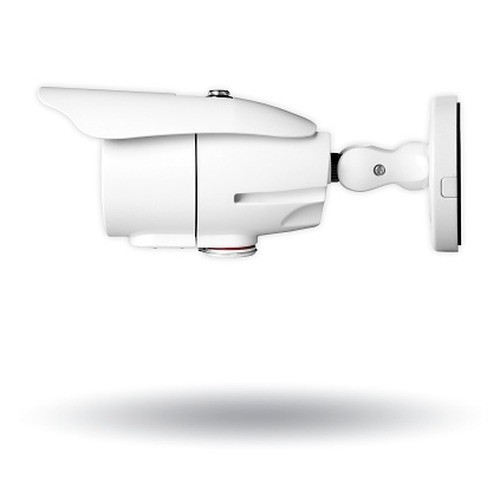

Digital Watchdog DWC-B6263WTIRW 2MP Star-Light IR Bullet Camera
The DWC-B6263WTIRW is a professional 2MP outdoor bullet IP camera engineered for perimeter and facility surveillance where reliable low-light performance justifies the investment. It combines Star-Light sense-up technology with Smart IR illumination—delivering exceptional clarity from near-total darkness through bright daylight without requiring separate auxiliary lighting. The camera's IP66 aluminum die-cast housing withstands direct rain, dust, and temperature swings from −4°F to 122°F (−20°C to 50°C), making it suitable for unheated structures, outdoor loading docks, and coastal environments where corrosion resistance matters.
Key Features
- 2MP 1080p Resolution (1944×1092): The 1/3" CMOS sensor captures sharp, detailed video at 1944×1092 pixels—sufficient for facial recognition and license plate reading at moderate range without consuming excessive storage bandwidth compared to 4MP+ alternatives.
- Star-Light Technology with Sense-Up (x2 to x32): Amplifies low-light scenes electronically, reaching minimum illumination of 0.03 lux in color mode and 0.0 lux black-and-white. This lets operators rely on Star-Light alone in fog or rain, then disable IR to avoid washout—a real advantage over fixed-IR cameras.
- Smart IR with 100-Foot Range: Integrated 850nm IR LED array delivers nighttime coverage to 100 feet without external lighting. The range is sufficient for mid-sized parking lots and building perimeters but will not cover extreme distances—if you need 150+ feet, evaluate a dedicated long-range thermal or higher-power IR variant.
- Vari-Focal 2.8–12mm P-Iris Lens (91°–28° Horizontal FOV): The motorized iris and zoom eliminate the need for multiple fixed-focal cameras across a single site. Installers adjust field of view after mounting, reducing repositioning labor and total equipment cost. The 91° wide view captures broad coverage; the 28° narrow view enables identification at range.
- True WDR 100dB: Balances exposure when the scene contains both bright and dark areas—critical for entrances with strong backlight or mixed sun and shadow. A 100dB dynamic range handles most outdoor scenarios; if you need coverage of simultaneous direct sunlight and deep shadows, consider a higher WDR rating (120dB+) in a different model family.
- Smart DNR 3D and Day/Night Switching: 3D digital noise reduction suppresses graininess in low-light Star-Light mode without excessive motion blur. Auto day/night switching, backlight compensation, and de-fog processing adapt to changing conditions automatically—reducing manual tuning and maintaining usable video across 24-hour cycles.
- IP66 Weatherproof Rating: Aluminum die-cast housing resists rain and dust ingress. IP66 permits direct spray; it does not permit submersion or immersion, so avoid installations where the camera may be flooded or fully submerged underwater (IP67 or higher required for those scenarios).
- PoE and 12V DC Power Support: Draws under 13W via standard 802.3af PoE, meaning it won't strain typical switch power budgets on 24-port deployments. Dual power input also supports legacy 12V DC infrastructure where PoE is unavailable, simplifying retrofit installations.
- Multi-Protocol Support (CVBS, HD-CVI, HD-TVI, Universal HD over Coax): Works seamlessly with analog DVR systems and hybrid recorders. Eliminates the need for proprietary encoders if migrating from older infrastructure—a real cost saver during system upgrades.
- 16 Programmable Privacy Masks and Pelco C/D Control: Operators mask sensitive zones (e.g., neighboring buildings, windows). Pelco protocol support enables PTZ-style pan/tilt commands from existing control systems without rewiring.
Integration & Compatibility
The DWC-B6263WTIRW (often searched as DWC B6263WTIRW) integrates into mixed-protocol environments via ONVIF, allowing network video recorders and VMS platforms to ingest video streams alongside IP-native cameras. Coax and UTP over coax support bridges to legacy analog and hybrid systems—common in warehouse, industrial, and retrofit deployments where rip-and-replace is not practical.
Deployment Considerations
Choose this camera when perimeter coverage requires both wide-angle surveillance and capability to zoom in on specific zones without repositioning. The vari-focal lens and low-light performance justify the cost in 24/7 outdoor monitoring scenarios. Skip this model if you need extreme zoom (32x+), require thermal imaging for heat-source detection, or are constrained to sub-$300 unit cost—evaluate fixed-focal or thermal-based alternatives.
Frequently Asked Questions
Q: What's the maximum IR range on the DWC-B6263WTIRW?
A: Smart IR delivers effective coverage to 100 feet (approximately 30 meters). Actual range depends on subject reflectivity and atmospheric conditions; fog and rain reduce effective range.
Q: Can I use the DWC-B6263WTIRW with my existing analog DVR?
A: Yes. The camera supports HD-CVI, HD-TVI, and CVBS output, allowing connection to hybrid and analog DVRs. Check your recorder's manual for compatibility with the specific output format you plan to use.
Q: What's the minimum light level required for color video?
A: The DWC-B6263WTIRW achieves 0.03 lux in color mode with Star-Light sense-up enabled. In near-total darkness (below 0.03 lux), the camera switches to black-and-white and uses Smart IR for illumination.
Q: Does the vari-focal lens require calibration after installation?
A: The motorized lens allows remote zoom and focus adjustment via camera controls or PTZ-compatible command protocol. Physical mounting does not require recalibration; operators adjust focus and zoom to suit the coverage area after power-up.
Q: Is the DWC-B6263WTIRW suitable for coastal or high-salt-spray environments?
A: The aluminum die-cast housing resists corrosion but is not rated for marine-grade salt spray. For high-salt or chemical-heavy atmospheres, consult the manufacturer on stainless-steel enclosure alternatives or protective coatings.
Q: How much bandwidth does the DWC-B6263WTIRW consume at full resolution?
A: Bandwidth depends on codec, frame rate, and scene complexity. The camera supports H.265 and H.264 compression; H.265 typically reduces bandwidth 40–60% compared to H.264 for similar quality. Contact the manufacturer or consult the detailed datasheet for specific bitrate tables.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-B6263WTIRW hits a practical sweet spot for outdoor surveillance deployments that span full 24-hour cycles and mixed weather. The combination of Star-Light sense-up and Smart IR 100-foot range is genuinely effective—I've watched operators disable IR selectively in fog-prone sites and rely on Star-Light alone to avoid washout. The vari-focal 2.8–12mm lens eliminates guesswork during installation; you can adjust coverage post-mount rather than ordering multiple fixed-focal variants.
Technical Highlights:
- Star-Light x32 Sense-Up + 0.03 lux Color / 0.0 lux B&W: Reaches usable video in near-total darkness without IR—a real advantage when you need to disable IR to see through fog, rain, or snow glare. Standard fixed-IR cameras often cannot do this.
- 100-foot Smart IR Range: Sufficient for mid-sized perimeters (parking lots, building footprints) but not for extreme-distance monitoring. If you need 150+ feet, plan for a higher-power IR or evaluate outdoor camera variants with integrated spotlights.
- IP66 + Aluminum Die-Cast, −20°C to +50°C Operating Range: Resists rain, dust, and temperature swings without condensation worry. Not rated for submersion or salt spray; avoid direct coastal spray or flood-prone mounts without additional protection.
- Vari-Focal P-Iris Lens, 91°–28° Horizontal FOV: One camera covers wide entrance surveillance and zoomed identification—reduces per-site camera count and eliminates the need to choose focal length before install.
- PoE + 12V DC Support, <13W Draw: Standard 802.3af PoE powers the camera without straining switch power budgets. Dual input also bridges legacy 12V systems, making retrofit installations simpler.
- Multi-Protocol Coax / HD-CVI / HD-TVI / CVBS Output: Integrates into existing analog and hybrid DVR infrastructure—no encoders needed if you have legacy equipment to preserve during system growth.
Deployment Considerations:
- The 100-foot IR range is solid for typical parking lots and building perimeters but will not reach extreme distances. If your site regularly requires 150+ feet of IR throw, evaluate a dedicated long-range IR or thermal camera instead.
- IP66 protects against rain and dust spray but not full submersion. Do not mount below flood level or in areas where water pooling is expected.
- The vari-focal lens requires motorized control (PTZ protocol or native camera controls); confirm your recording system or management interface supports lens adjustment commands before commissioning.
This camera is the right fit for warehouse perimeters, industrial facility entrances, and outdoor lot surveillance where 24/7 reliability and flexible zoom justify mid-range cost. Avoid it if you need extreme thermal imaging capability, sub-$300 pricing, or fixed-lens simplicity.
